Commercial Service Tools

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

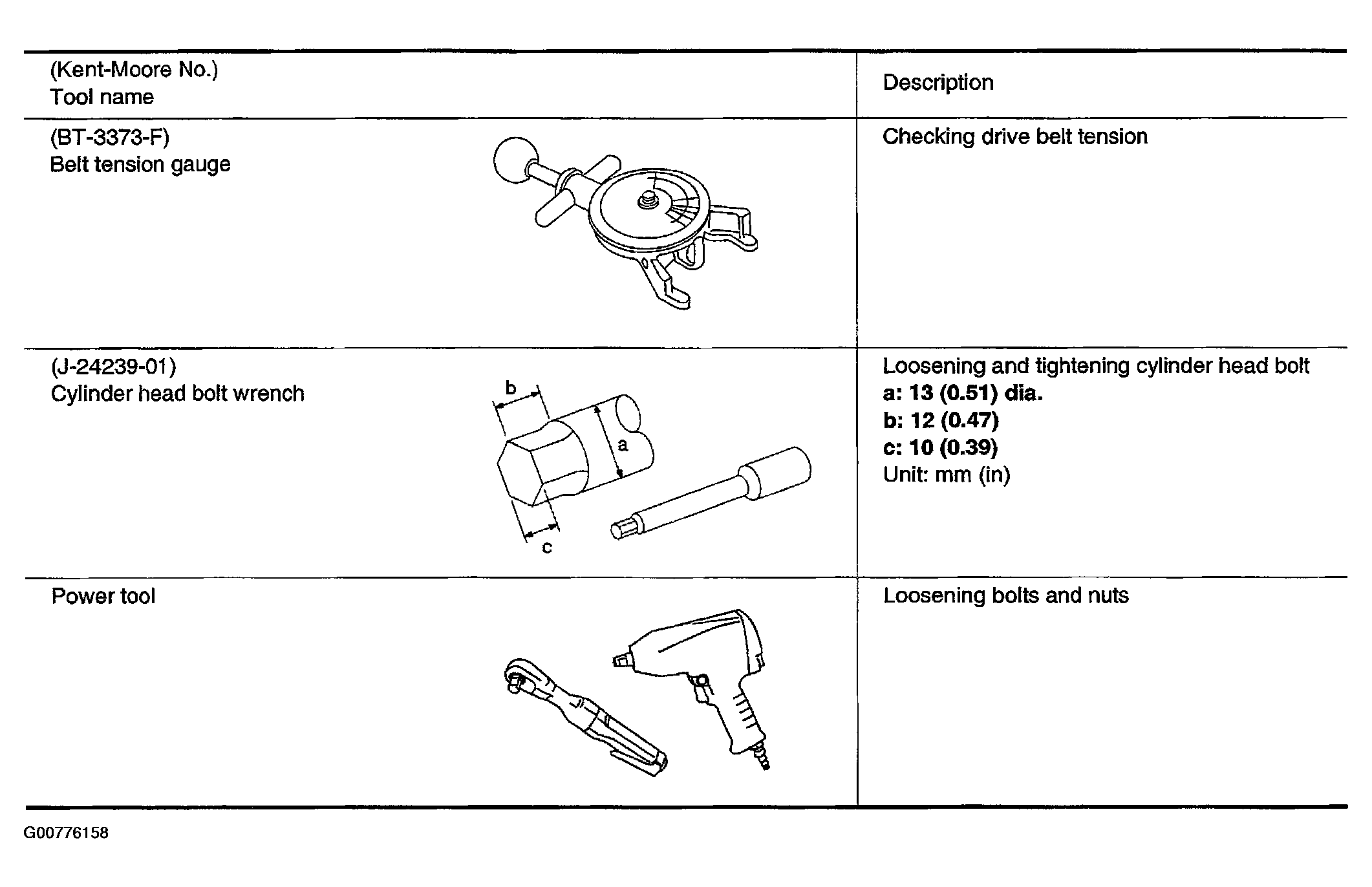

Fig 1: Identifying Commercial Service Tools (1 Of 2)
G00776158Courtesy of NISSAN MOTOR CO., U.S.A.

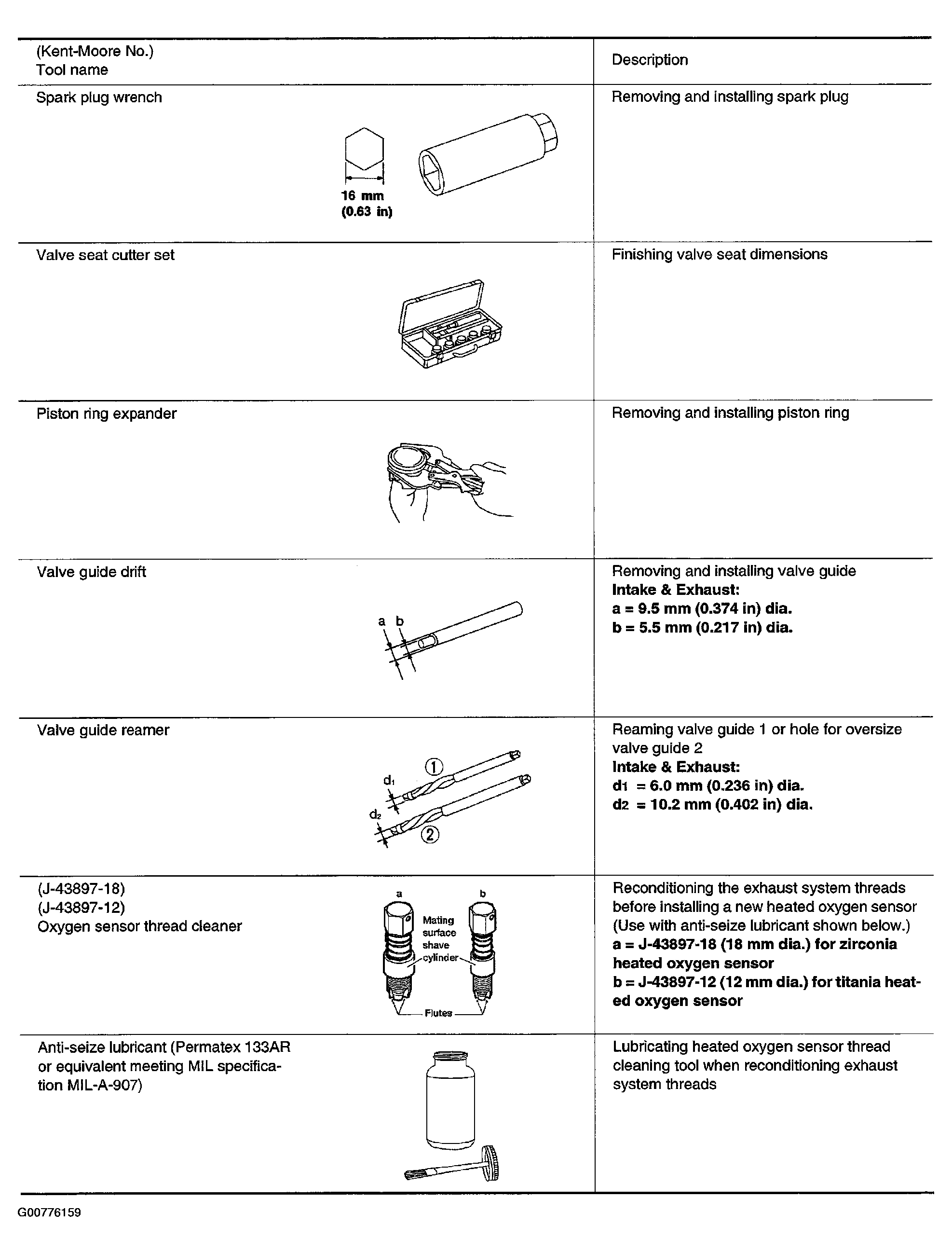

Fig 2: Identifying Commercial Service Tools (2 Of 2)
G00776159Courtesy of NISSAN MOTOR CO., U.S.A.
