Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

If necessary, install the stud bolts.
1. Stud bolts: 10.8 N.m (1.1 kg-m, 96 in-lb)
Install intake manifold bolts in two steps in the order shown.
1. Step 1: 7.4 N.m (0.75 kg-m, 65 in-lb)
2. Step 2: 29 N.m (3.0 kg-m, 21 ft-lb)

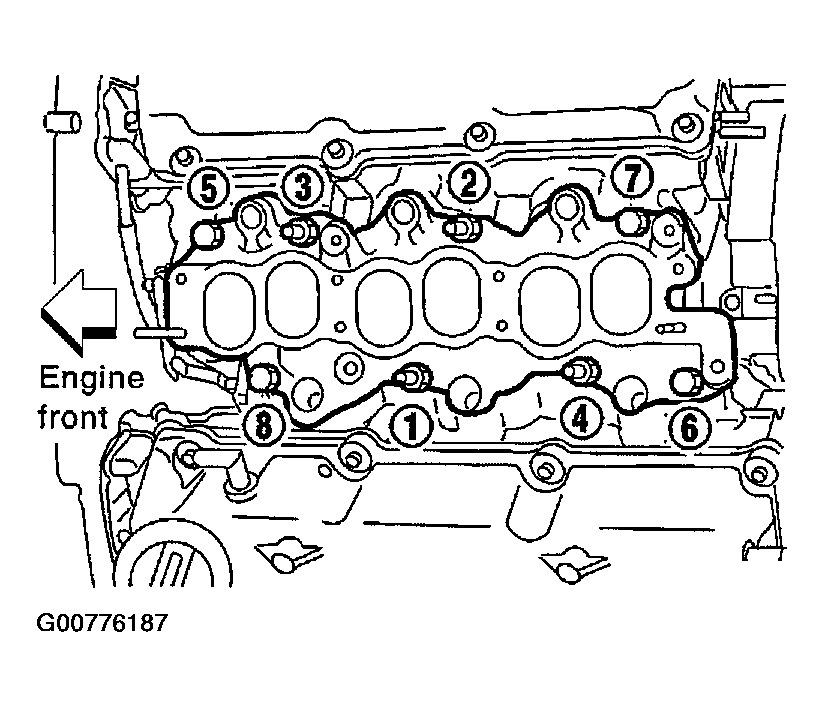

Fig 1: Installing Intake Manifold Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
