Removal And Installation

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column cover. Refer to WORK STEPS in INSTRUMENT PANEL - M45 article.
  2. Remove lighting and turn signal switch mounting screws and remove the lighting and turn signal switch from the spiral cable.
  3. Disconnect the lighting and turn signal switch connector.

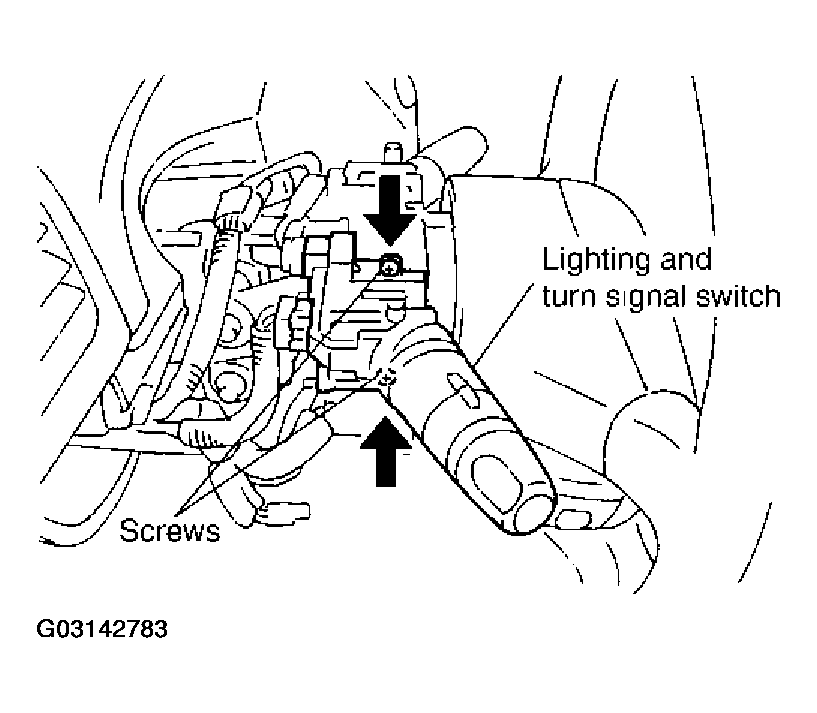

    Fig 1: Disconnecting Lighting And Turn Signal Switch
    G03142783Courtesy of NISSAN MOTOR CO., U.S.A.
