Door Mirror Remote Control Switch Ground Circuit Inspection

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
Check continuity between door mirror remote control switch connector M66 terminal 7 (B) and ground.
1. 7 (B) - Ground : Continuity should exist.
OK or NG
1. OK : GO TO 2.
2. NG : Repair or replace harness between door mirror remote control switch and ground.
Fig 1: Checking Continuity Between Door Mirror Remote Control Switch Connector M66 Terminal 7 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)

Check continuity between door mirror remote control switch as follows.

CONDITION

Connector	Terminals		Condition	Continuity
Connector	(+)	(-)	Condition	Continuity
M66	5	7	Changeover switch RIGHT position	YES
	5		Changeover switch neutral position	NO
	6		Changeover switch LEFT position	YES
	6		Changeover switch neutral position	NO

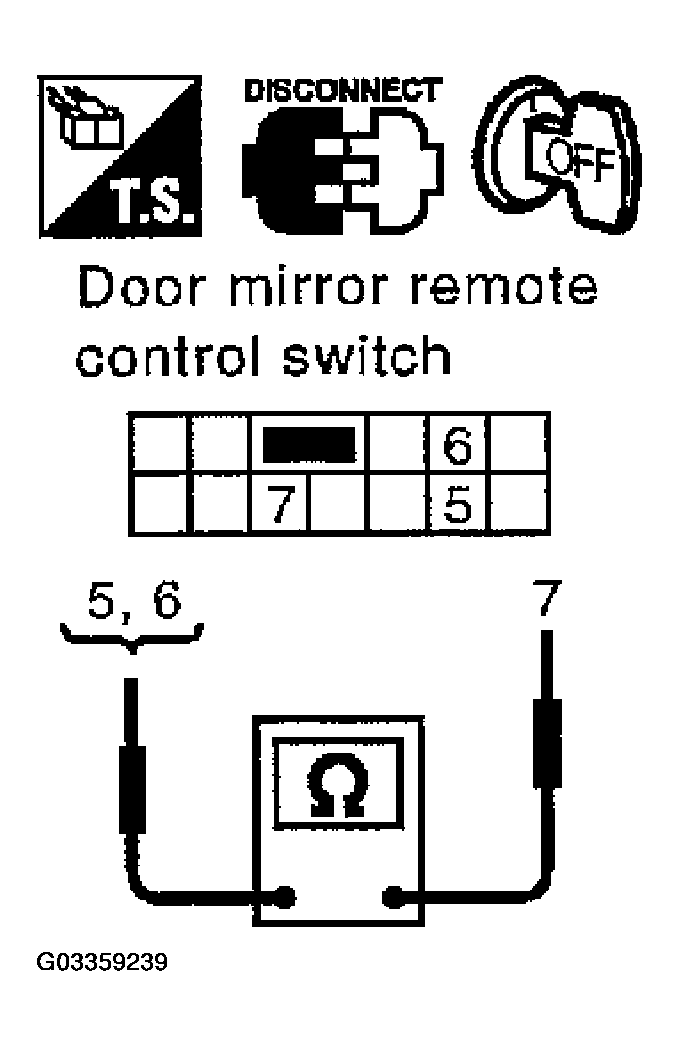

Fig 2: Checking Continuity Between Door Mirror Remote Control Switch Terminals 5, 6 And 7

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Check the condition of the harness and the connector.
NG : Replace door mirror remote control switch.
