Removal and Installation: Notes

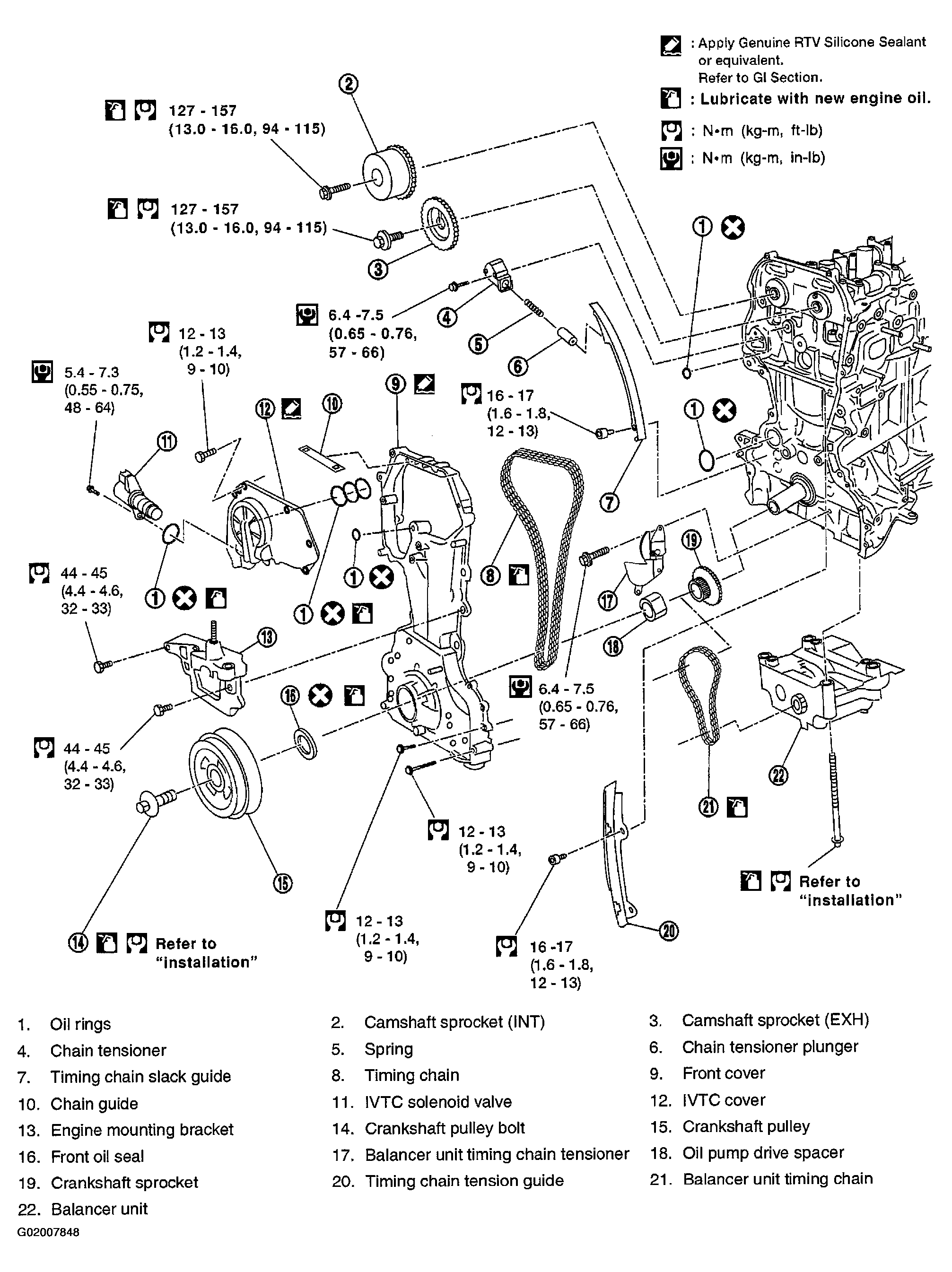

Fig 1: Identifying Timing Chain Components

G02007848

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Apply new engine oil to parts marked in illustration before installation.
