Removal and Installation: Installation

Installation is in the reverse order of removal.

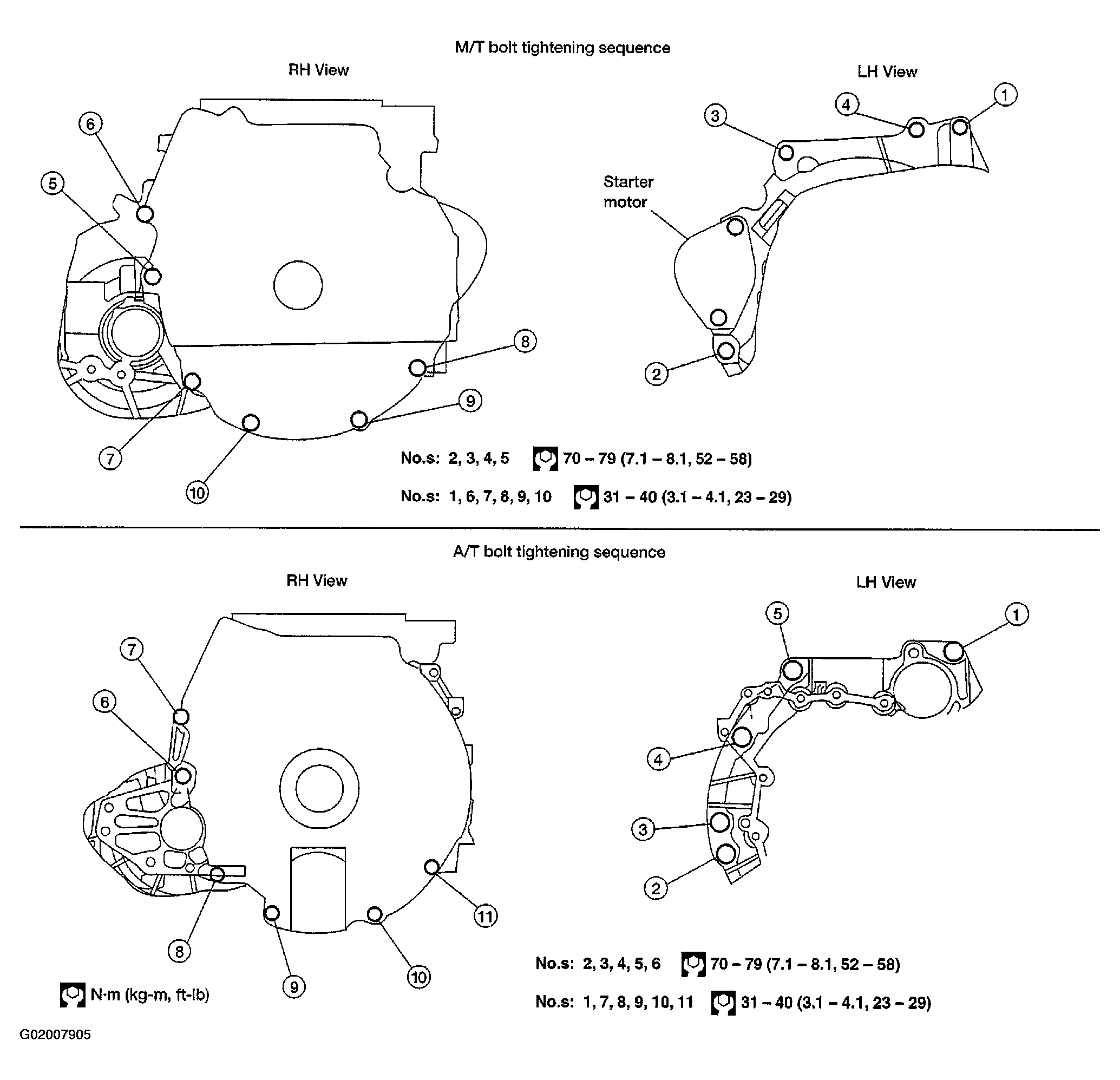

Fig 1: Identifying M/T & A/T Bolt Tightening Sequences

Courtesy of NISSAN MOTOR CO., U.S.A.

• Do not allow oil to get on mounting insulators. Be careful not to damage mounting insulators.
• If parts have a direction mark (arrow) this indicates front of the vehicle, and the parts must be installed according to the identification mark.
