Engine Cooling Fan
>>
Wiring Diagrams
Wiring Diagrams

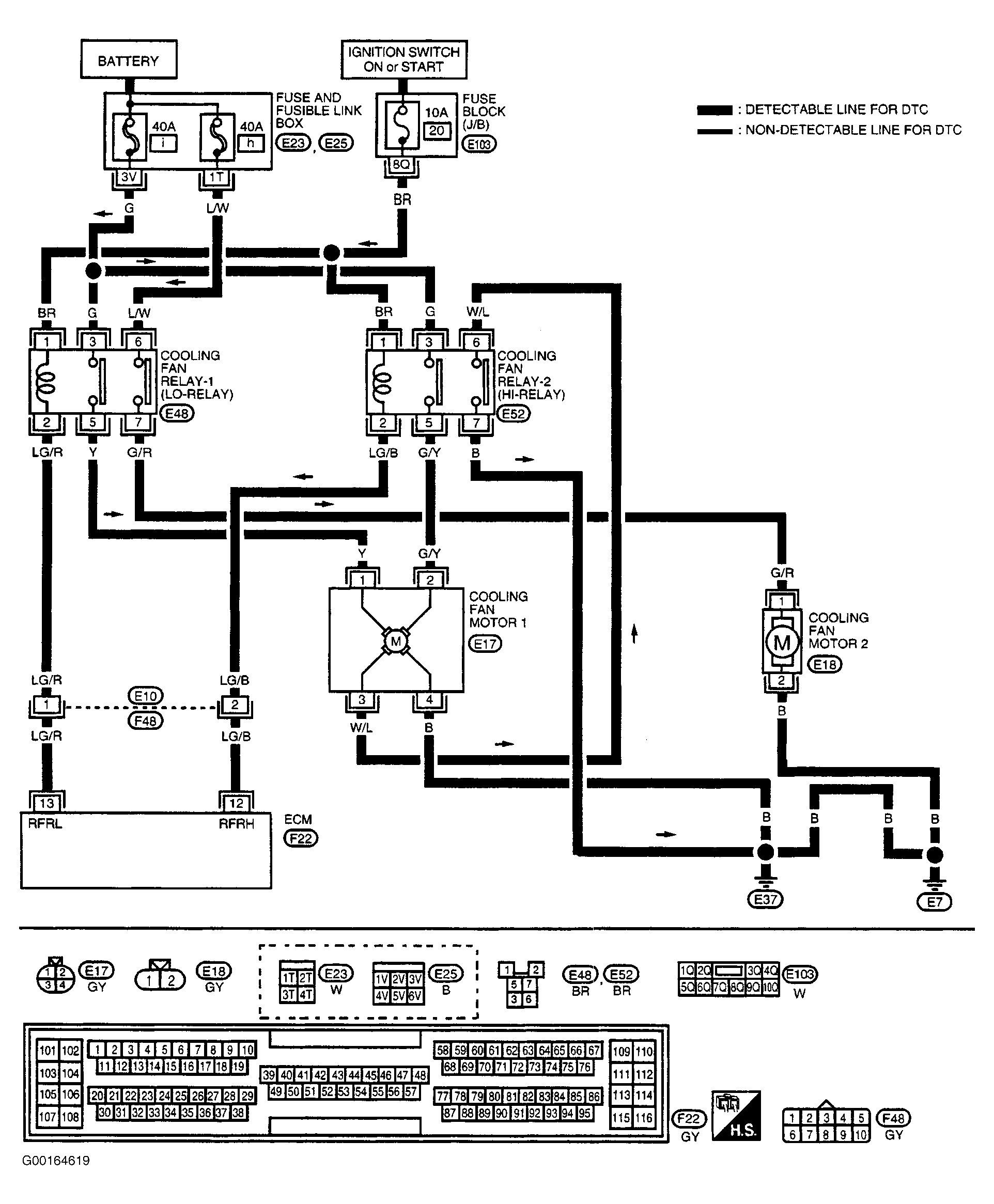

Fig 1: Cooling Fan Circuit Wiring Diagram (2002 1.8L - 1 Of 2)
Fig 2: Cooling Fan Circuit Wiring Diagram (2002 1.8L - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

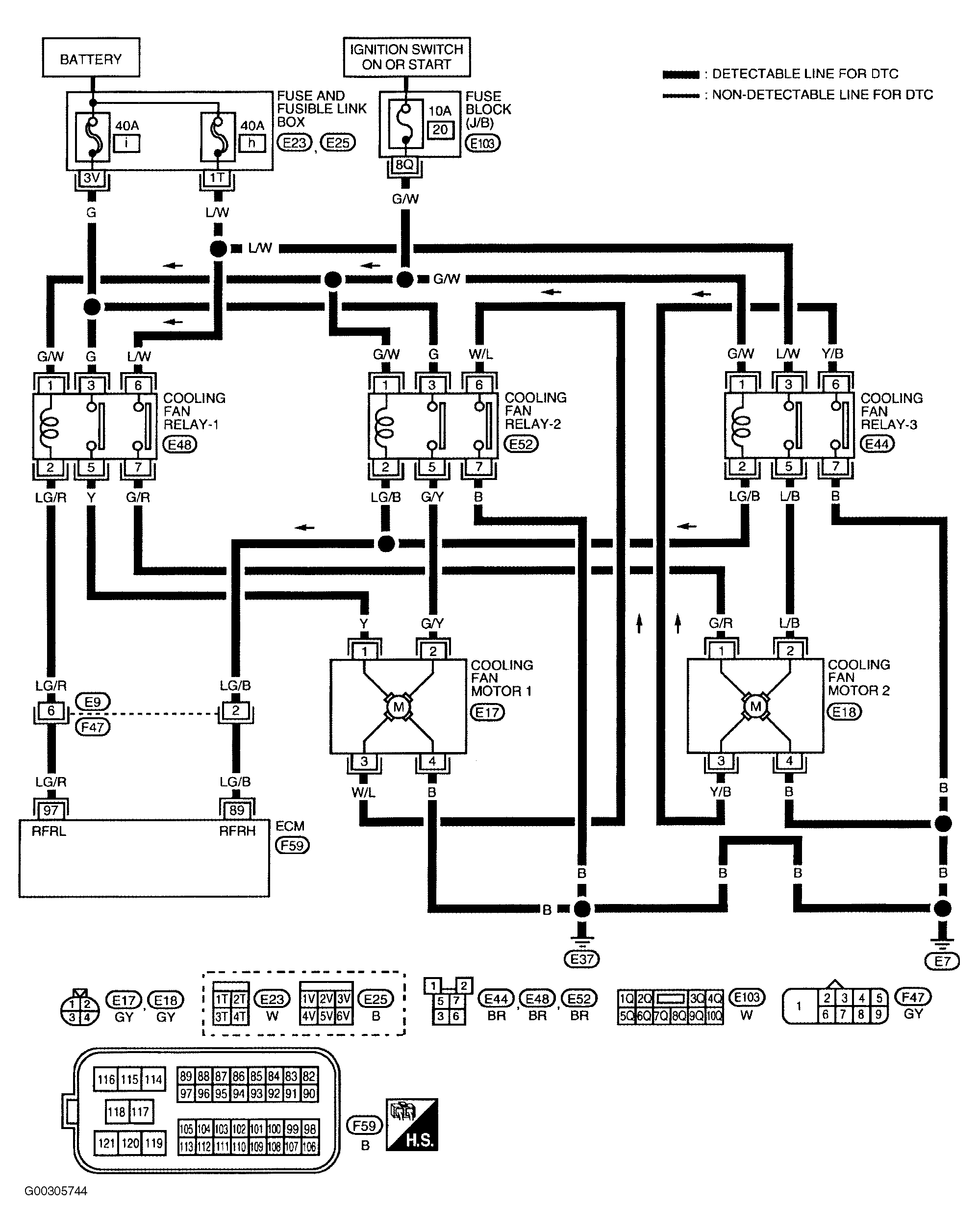

Fig 3: Cooling Fan Circuit Wiring Diagram (2002 2.5L)

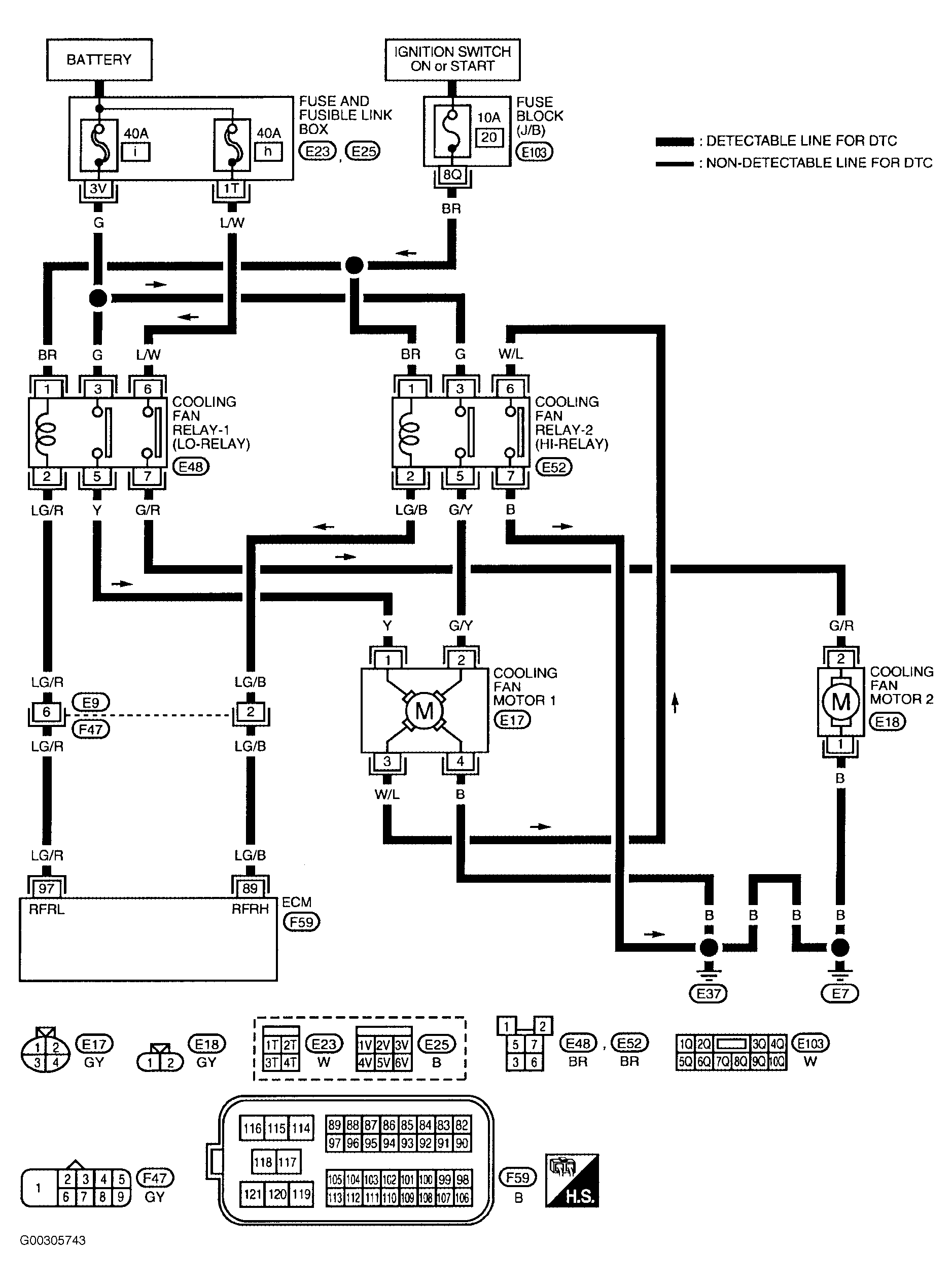

Fig 4: Cooling Fan Circuit Wiring Diagram (2003 1.8L - 1 Of 2)
Fig 5: Cooling Fan Circuit Wiring Diagram (2003 1.8L - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

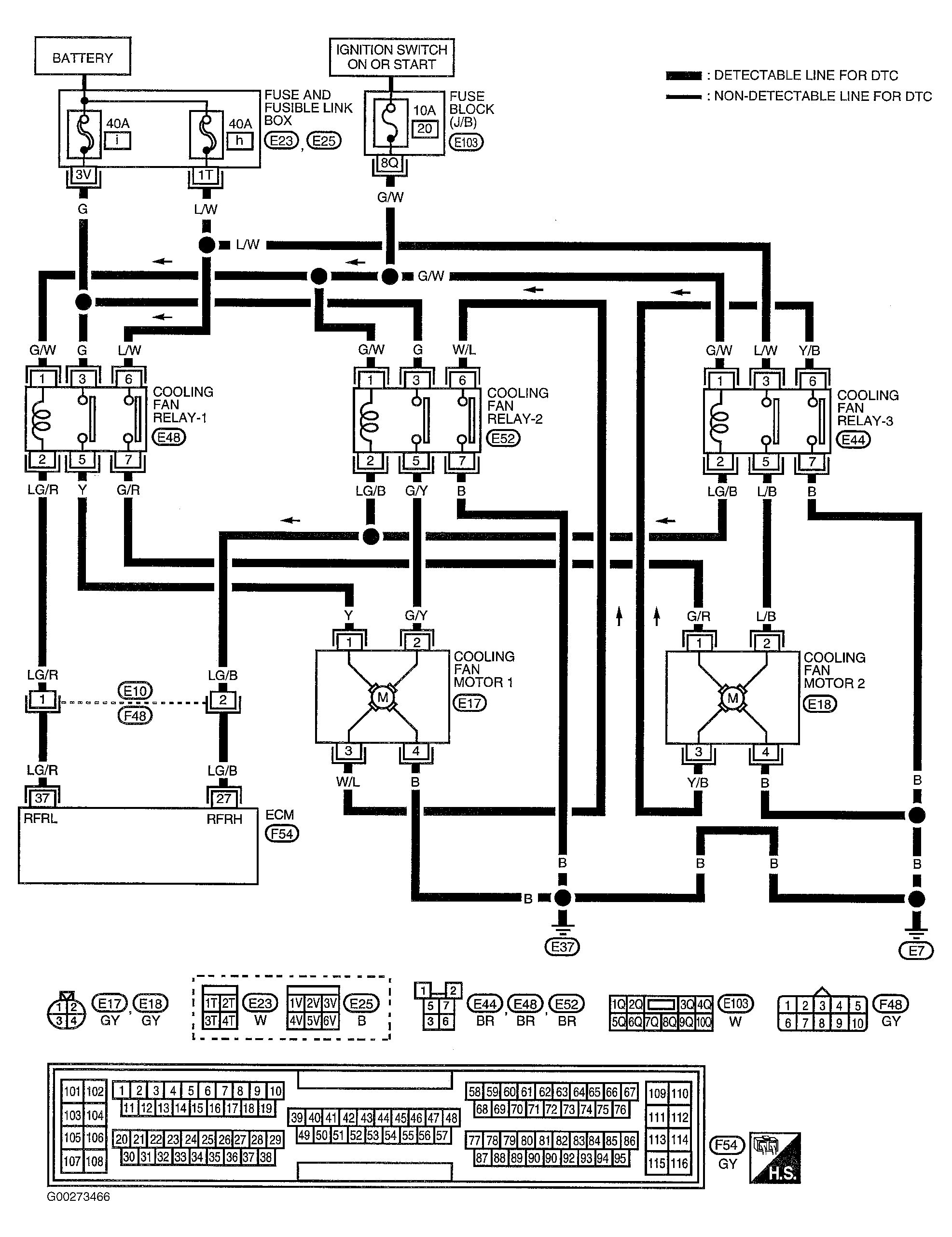

Fig 6: Cooling Fan Circuit Wiring Diagram (2003 2.5L - 1 Of 2)
Fig 7: Cooling Fan Circuit Wiring Diagram (2003 2.5L - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

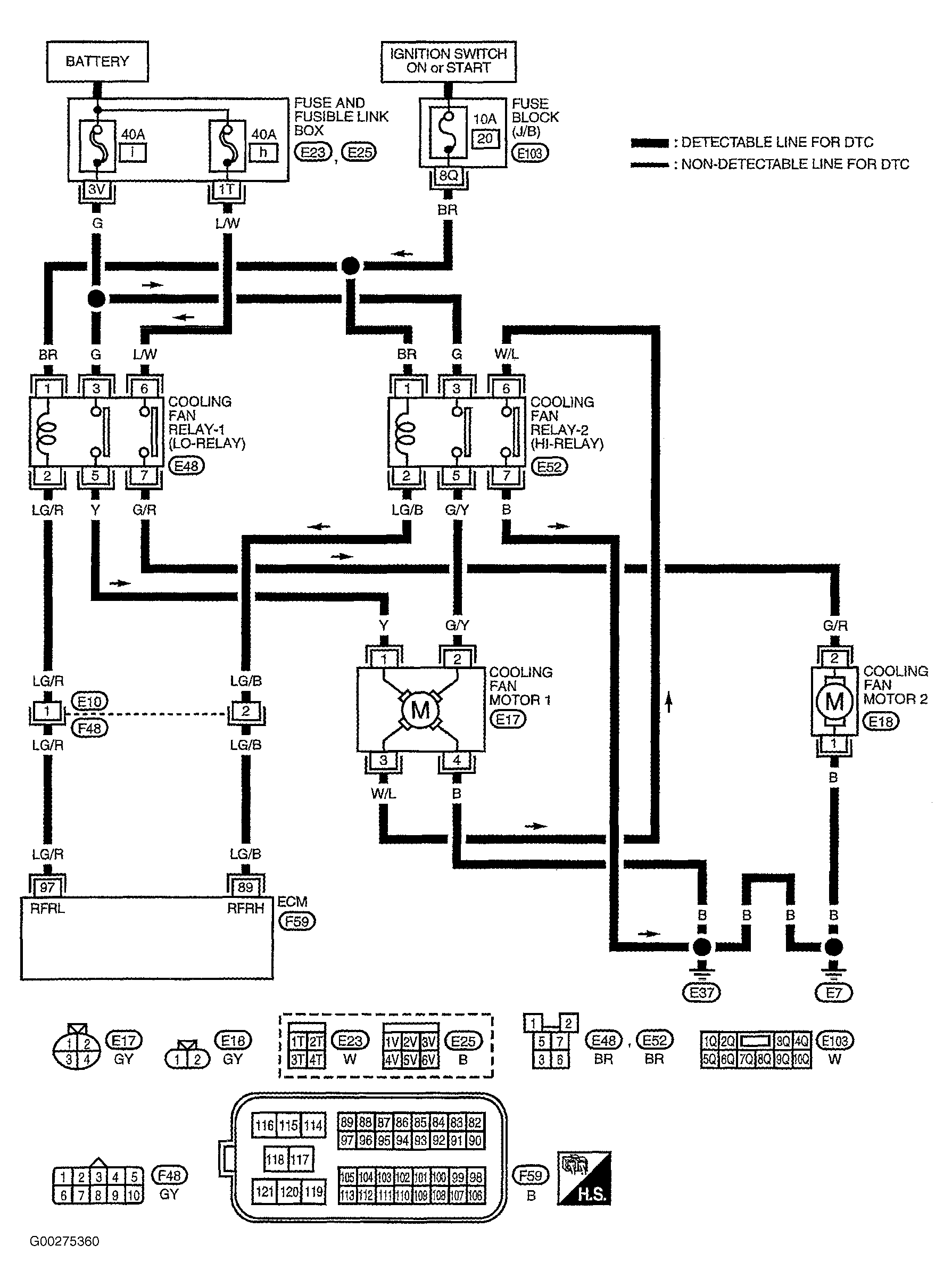

Fig 8: Cooling Fan Circuit Wiring Diagram (2004 1.8L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Cooling Fan Circuit Wiring Diagram (2004 2.5L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
