Wheel Hub: Installation

• With vehicles equipped with ABS, press-fit sensor rotor into wheel hub bearing using a drift.

  Do not reuse sensor rotor. When installing, replace it with a new one.

  Fig 1: Installing Special Tools

  Courtesy of NISSAN MOTOR CO., U.S.A.

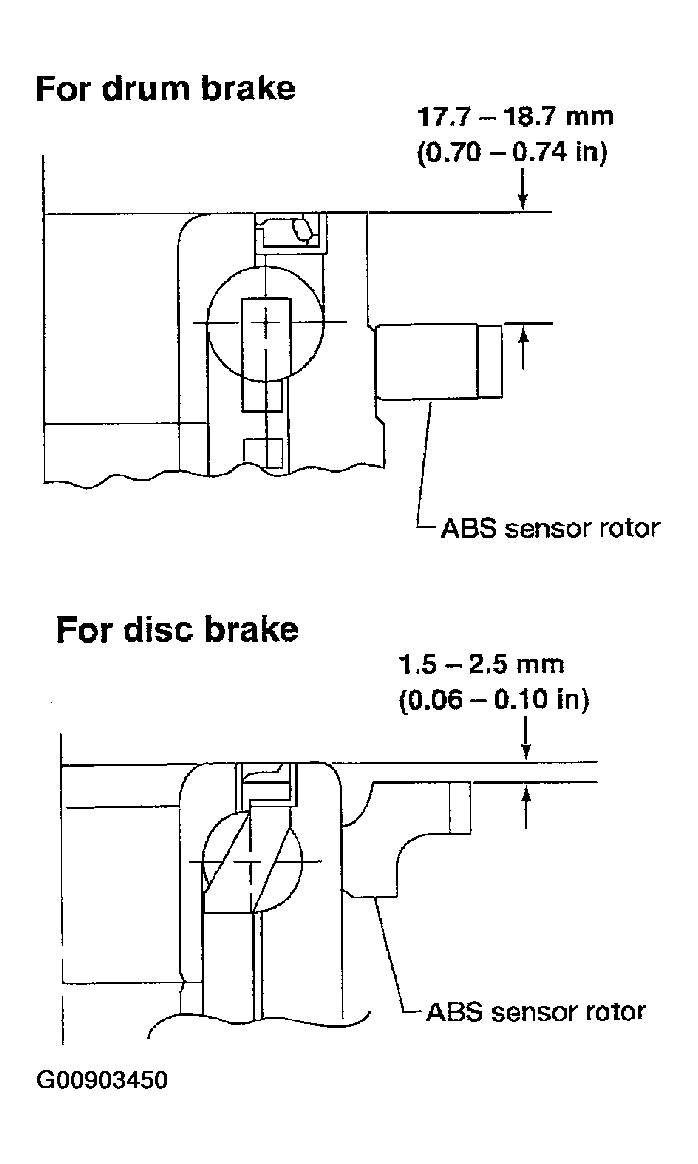

• Press-fit sensor rotor as far as the location shown in figure at right.
  Fig 2: Pressing-Fit Sensor Rotor As Far As Location

  Courtesy of NISSAN MOTOR CO., U.S.A.

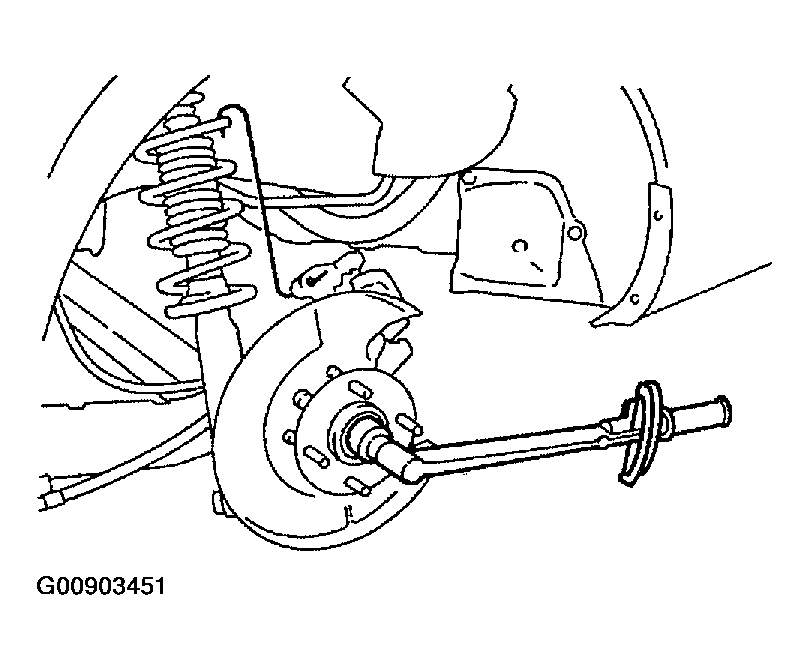

• Install wheel hub bearing.
• Tighten wheel bearing lock nut.

  Before tightening, apply oil to threaded portion of rear spindle.

  Do not reuse wheel bearing lock nut.

  1. 187 - 255 N.m (19 - 26 kg-m, 138 - 188 ft-lb)
  Fig 3: Installing Wheel Hub Bearing

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Check that wheel bearings operate smoothly.

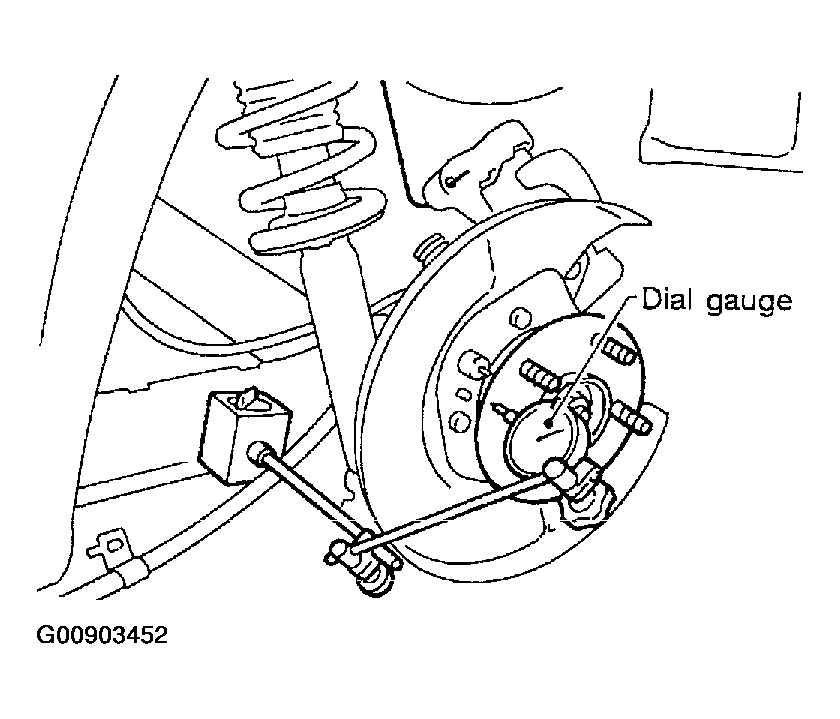

• Check wheel hub bearing axial end play.
  1. Axial end play: 0.05 mm (0.0020 in) or less
  Fig 4: Checking Wheel Hub Bearing Axial End Play

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Clinch two places of lock nut.
  Fig 5: Clinching Two Places Of Lock Nut

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Install hub cap using a suitable tool.

Do not reuse hub cap. When installing, replace it with a new one.

Fig 6: Identifying Reuse Hub Cap

Courtesy of NISSAN MOTOR CO., U.S.A.
