Wiring Diagram - ABS -

NOTE: For references in wiring diagrams to PG-POWER, see SYSTEM WIRING DIAGRAMS - GROUND DISTRIBUTION and POWER DISTRIBUTION .

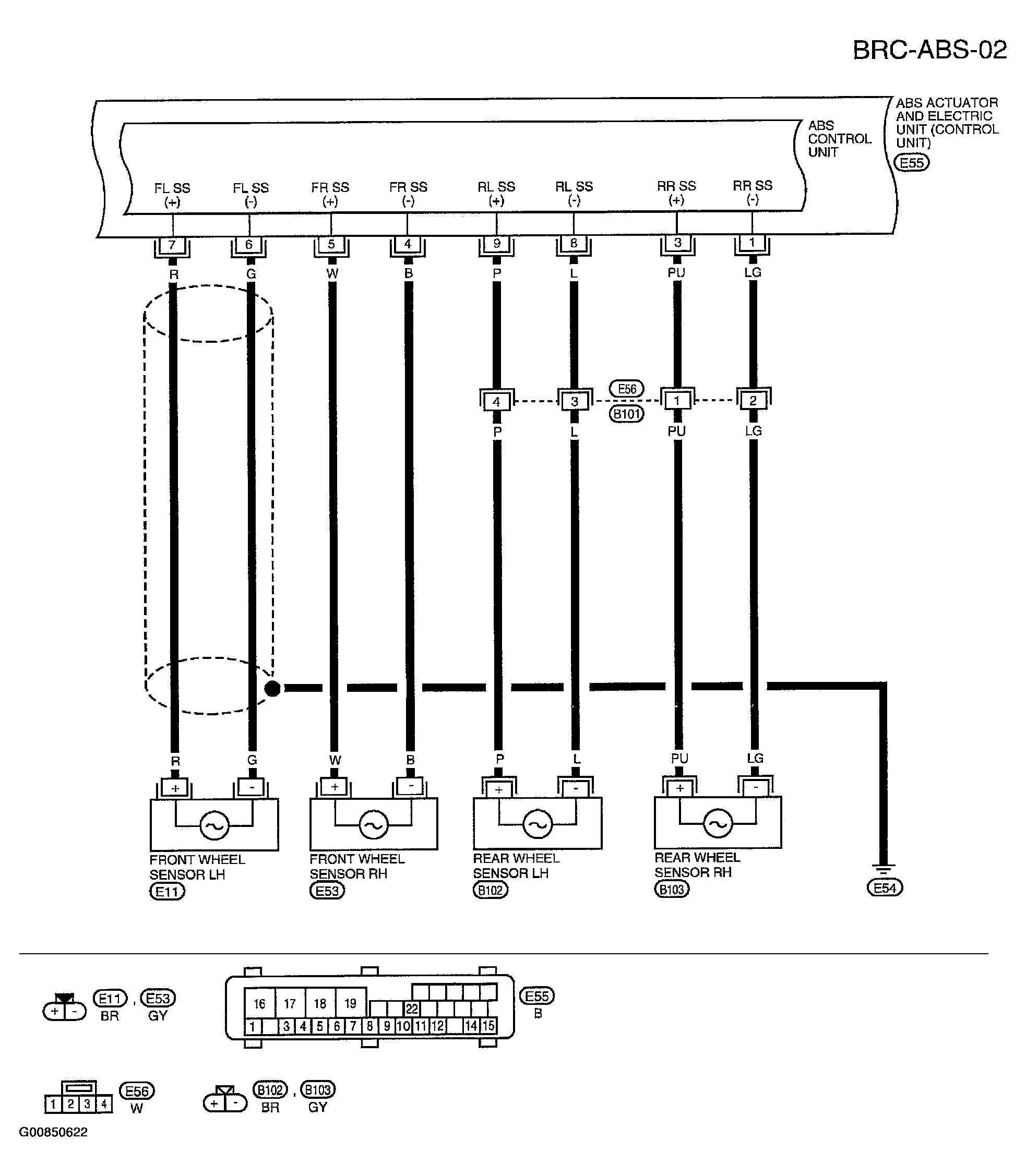

Fig 1: Identifying Wiring Diagram - ABS

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying ECU Terminal Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

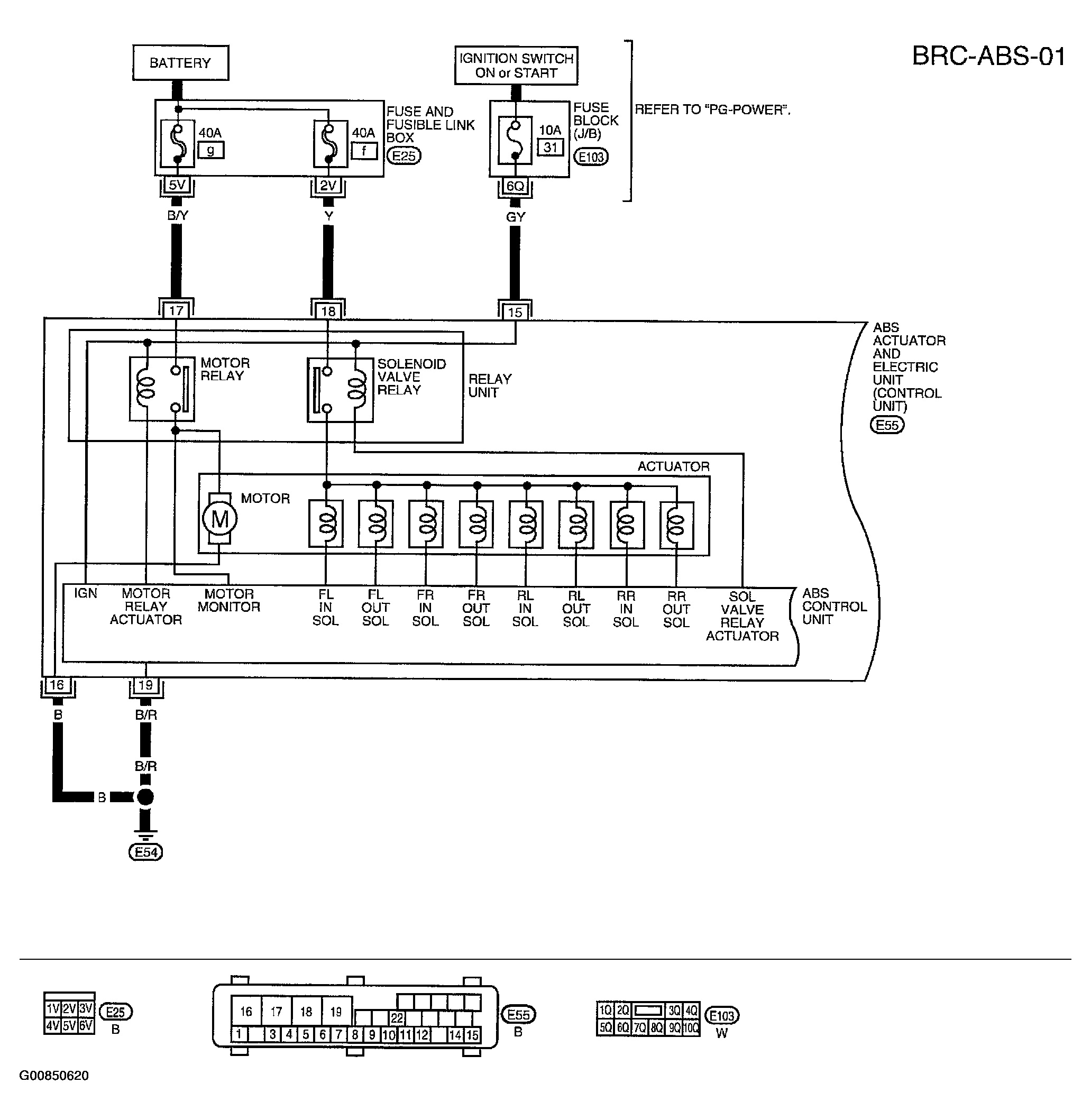

Fig 3: Identifying ABS Actuator And Electric Unit (Control Unit) Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

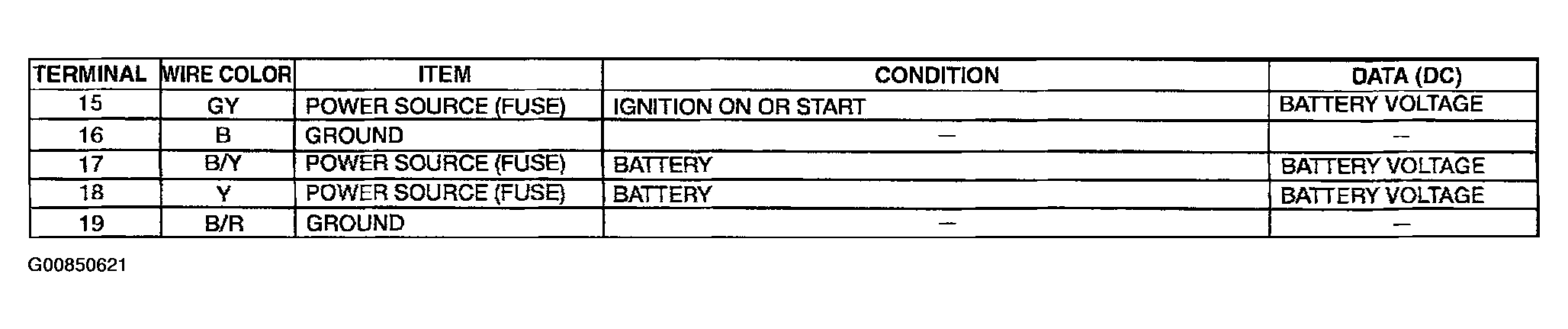

Fig 4: Identifying ECU Terminal Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

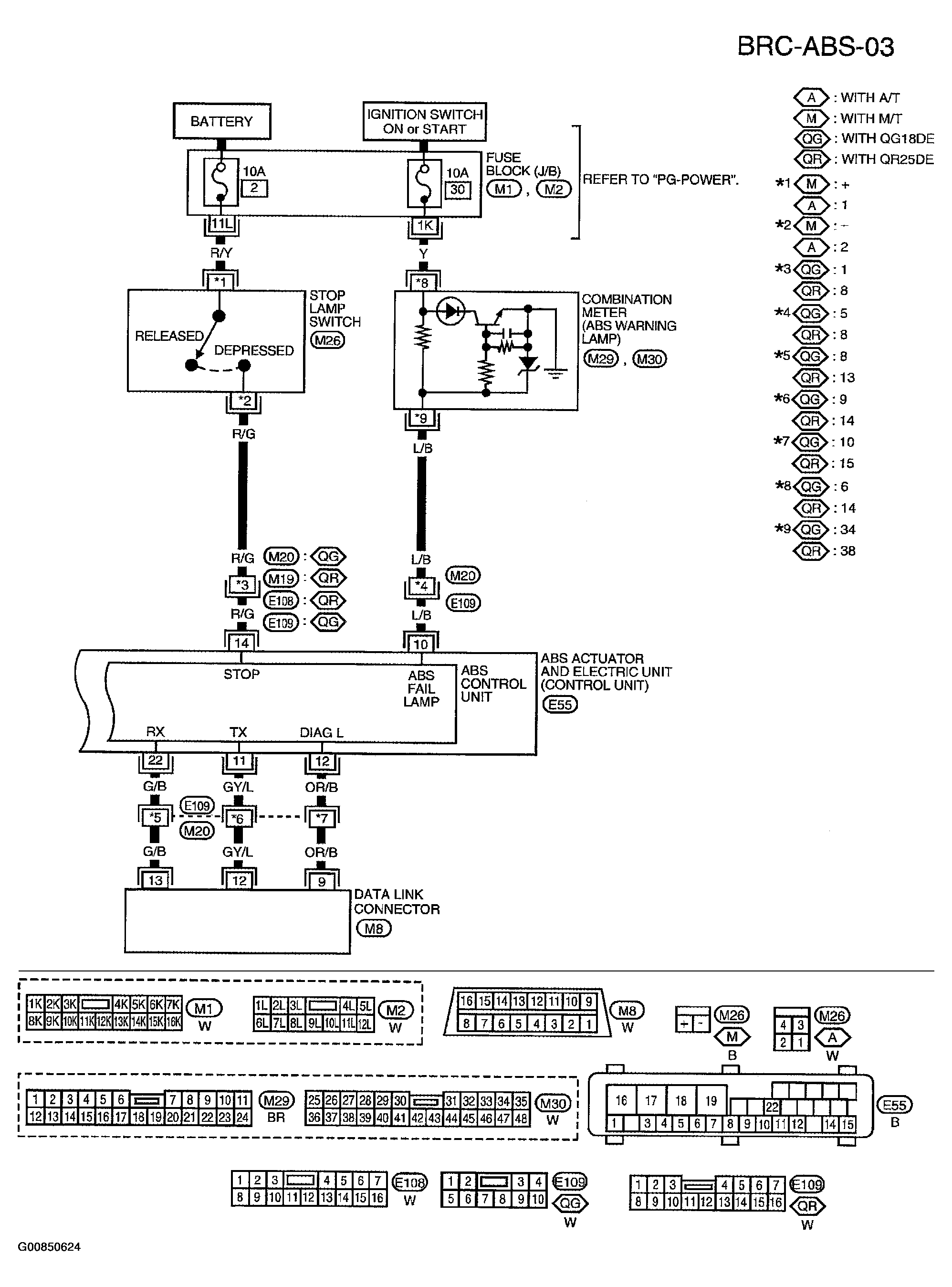

Fig 5: Identifying ABS Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

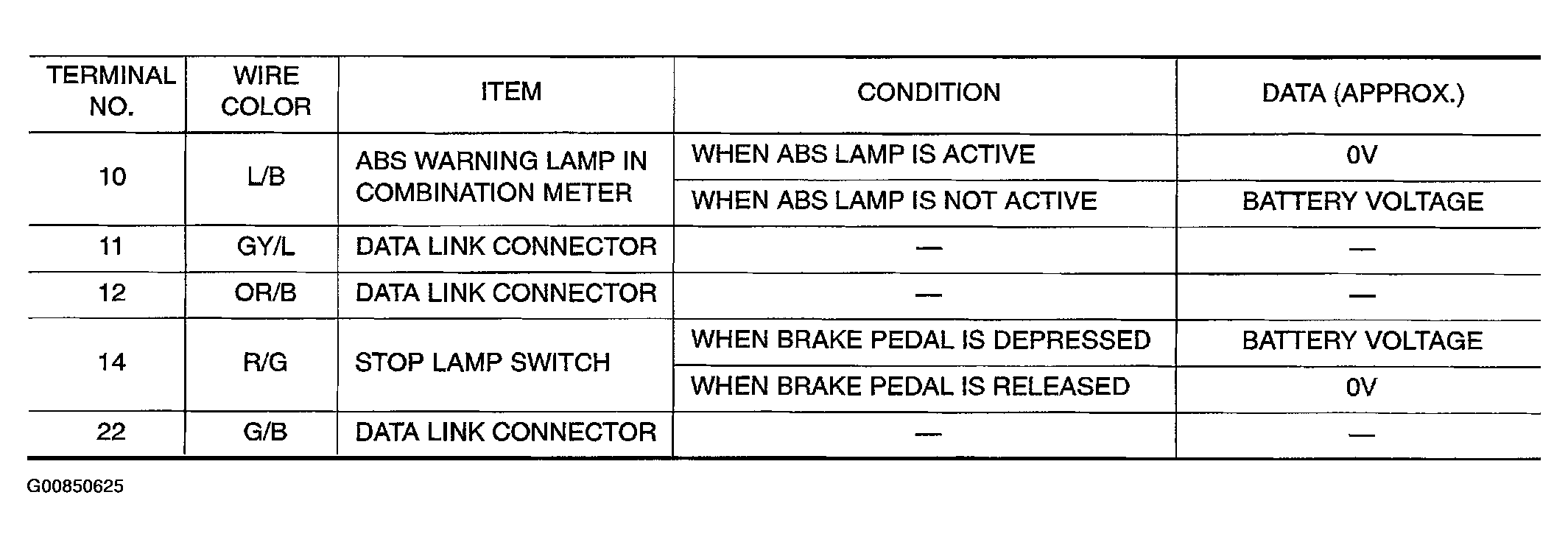

Fig 6: Identifying ABS Actuator And Electric Unit (Control Unit)

Courtesy of NISSAN MOTOR CO., U.S.A.

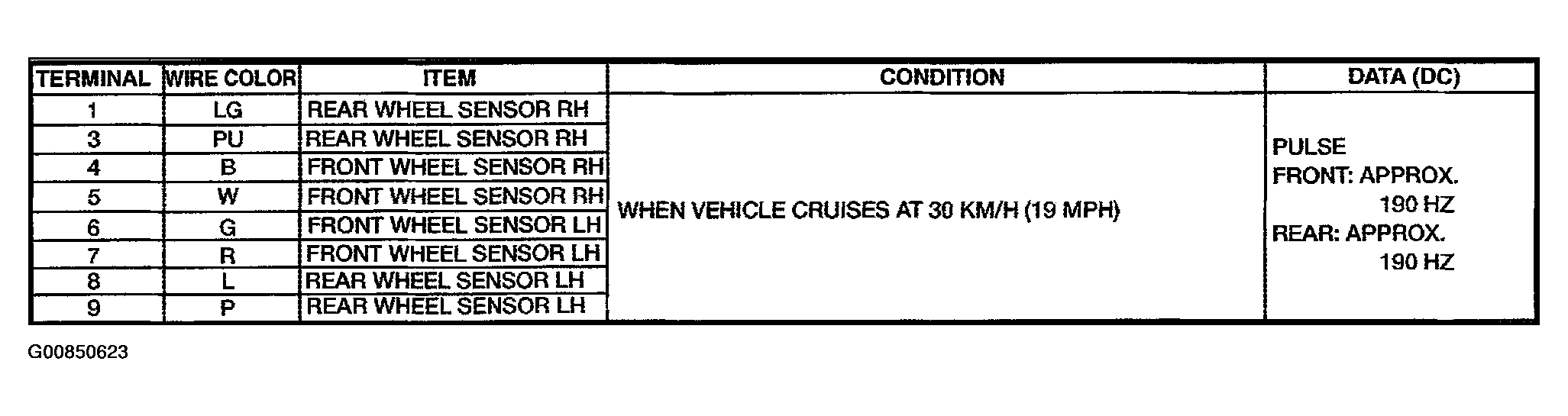

NOTE: ABS actuator and electric unit (control unit) terminals and reference value measured between each terminal and ground
