Brakes
>>
Traction Control
>>
Brake Control System - Abs & Abs/TCS
>>
Description
>>
ABS Hydraulic Circuit
ABS Hydraulic Circuit

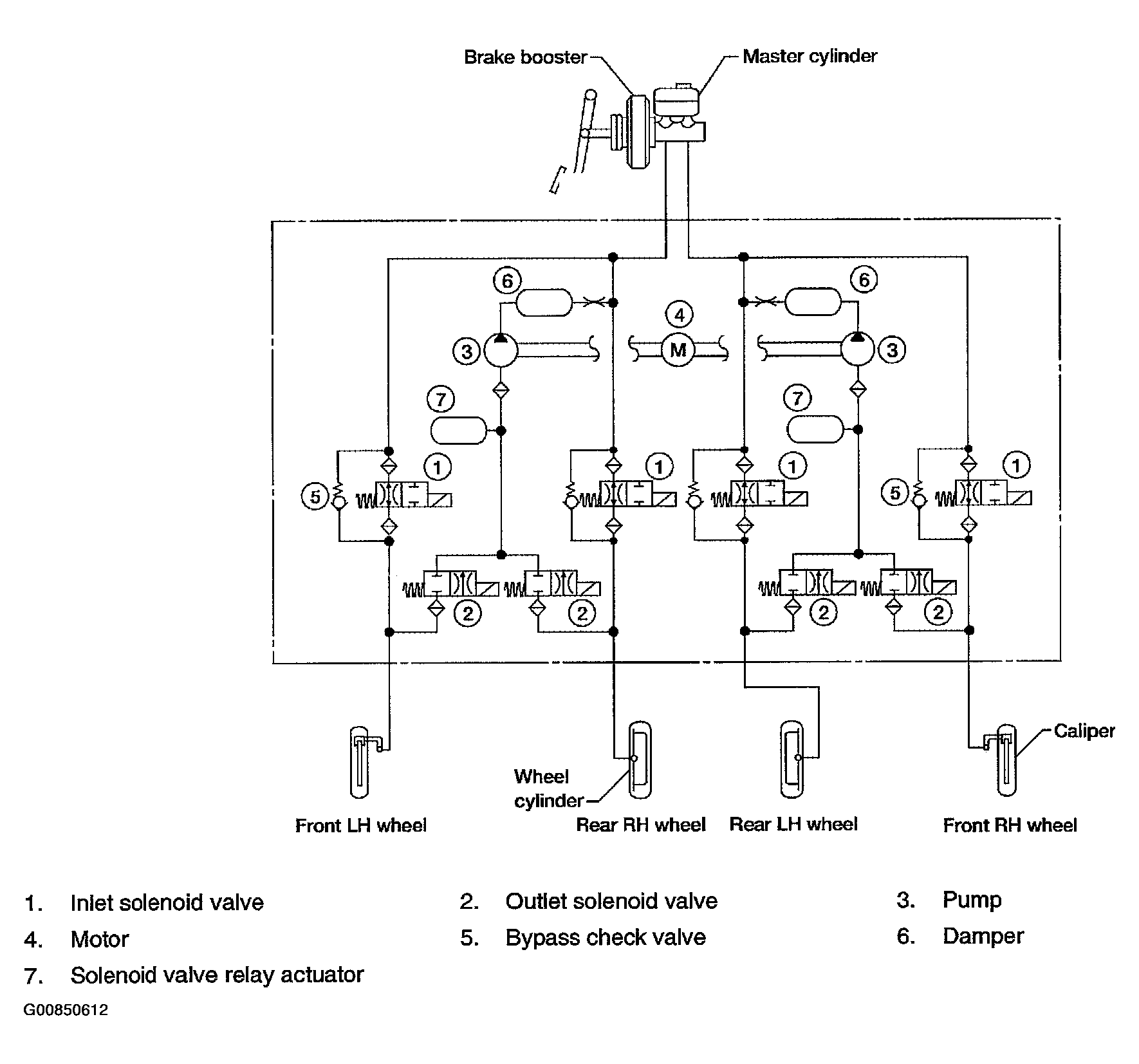

Fig 1: Identifying ABS Hydraulic Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
