Wiring Diagram-D/LOCK-: Notes

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

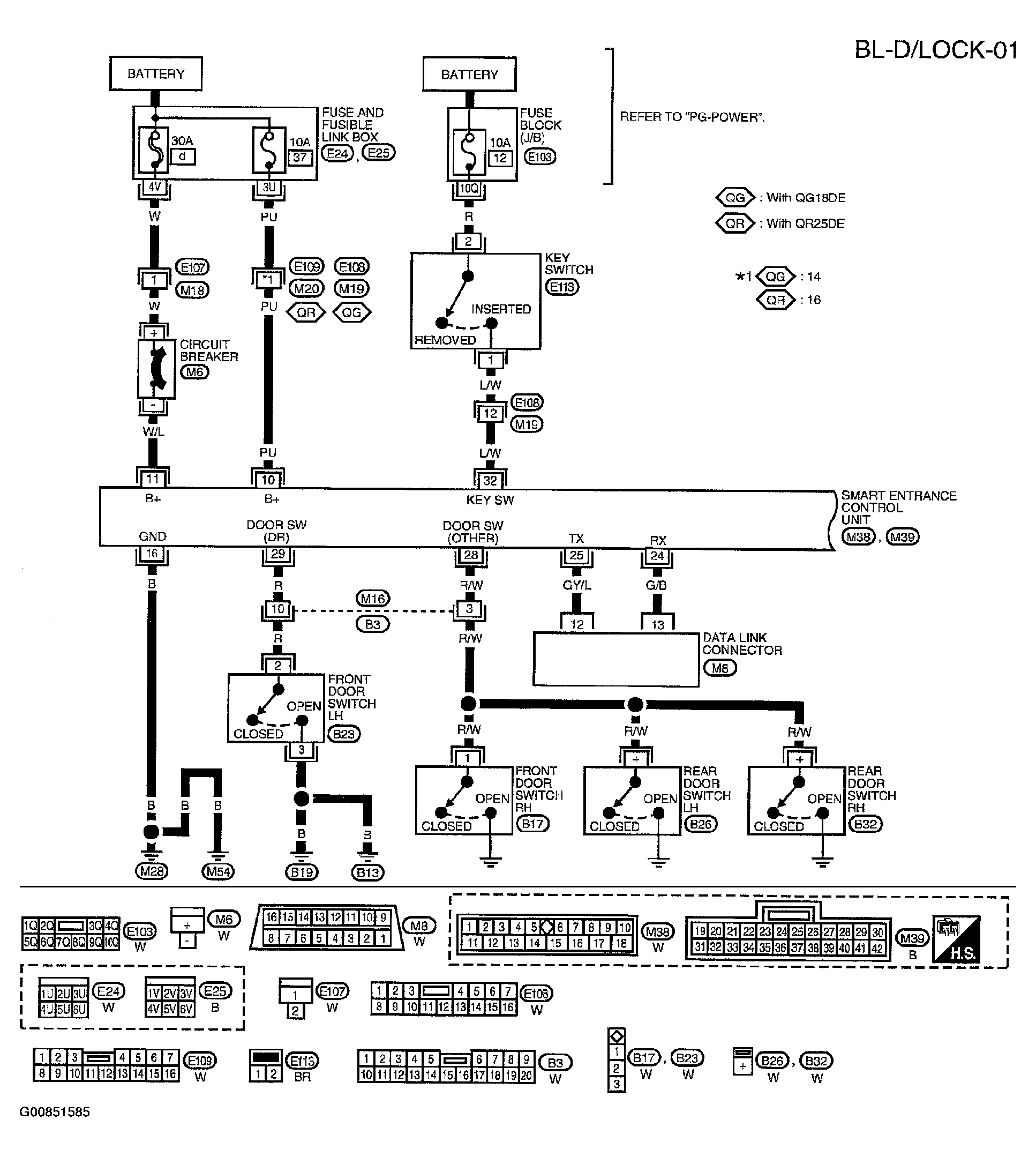

Fig 1: Wiring Diagram - BL-D/LOCK-01
G00851585Courtesy of NISSAN MOTOR CO., U.S.A.

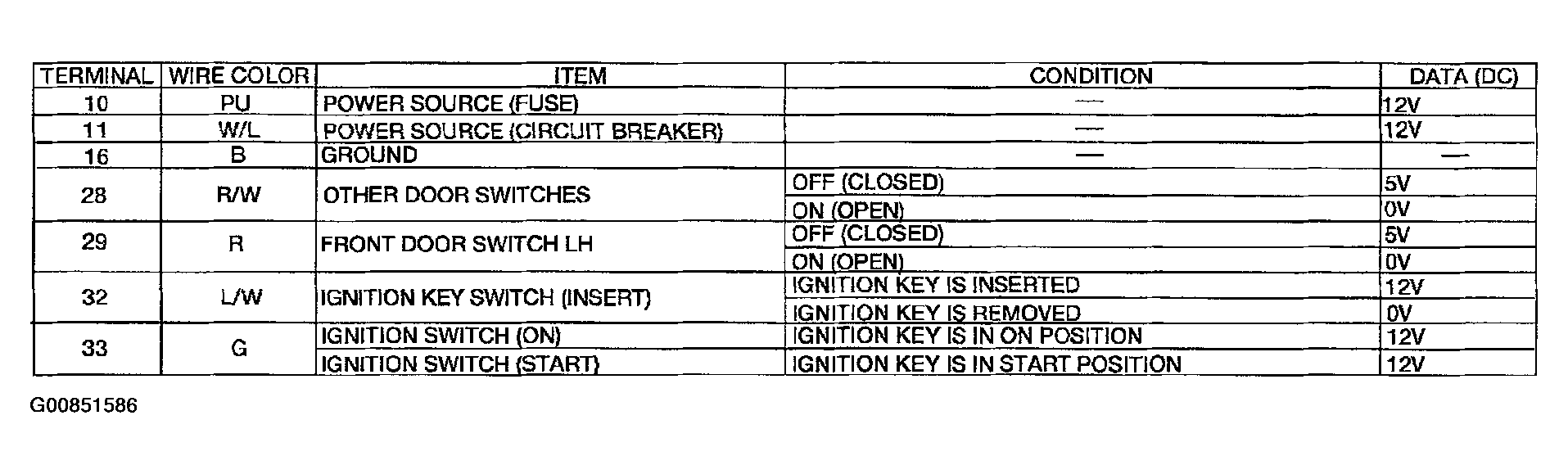

Fig 2: Wiring Color Condition Chart
G00851586Courtesy of NISSAN MOTOR CO., U.S.A.
