How to Display SRT Code

With CONSULT-II

Selecting "SRT STATUS" in "DTC CONFIRMATION" mode with CONSULT-II.

For items whose SRT codes are set, a "CMPLT" is displayed on the CONSULT-II screen; for items whose SRT codes are not set. "INCMP" is displayed.

A sample of CONSULT-II display for SRT code is shown. "INCMP" means the self-diagnosis is incomplete and SRT is not set.

"CMPLT" means the self-diagnosis is complete and SRT is set.

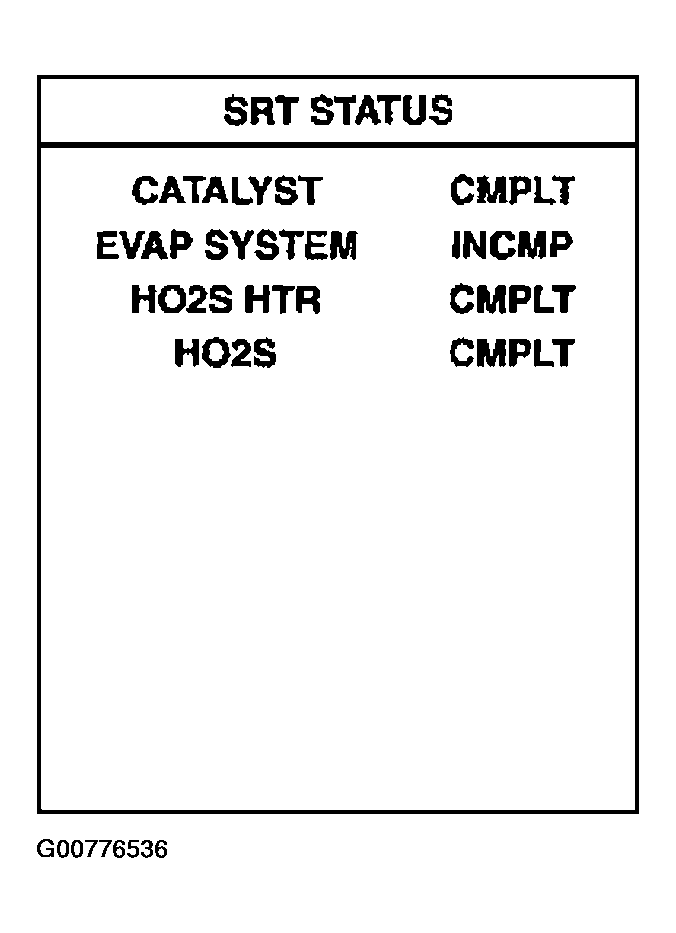

Fig 1: View Of Consult-II Display For SRT Code

Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Selecting Mode 1 with GST (Generic Scan Tool)
