LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2004
>>
Sentra SE-R Spec V
>>
Repair and Diagnosis
>>
Transmission
>>
Clutch System - RS6F51H
>>
Operating Cylinder
>>
Components
Operating Cylinder: Components

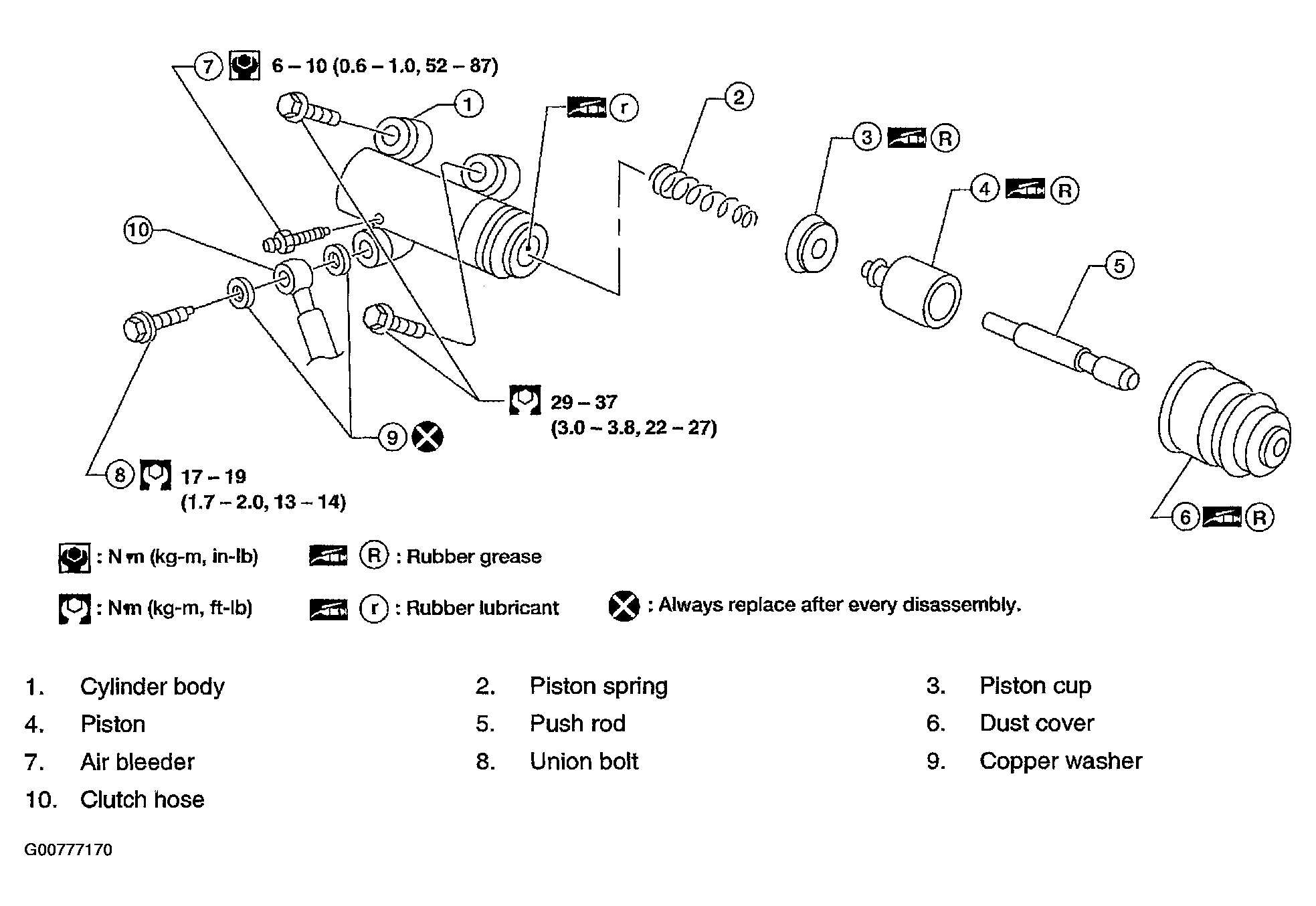

Fig 1: Identifying Operating Cylinder Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
