Inspection After Removal
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Check if there is something wrong with jacket tube etc. And then if they are damaged, replace with new one.

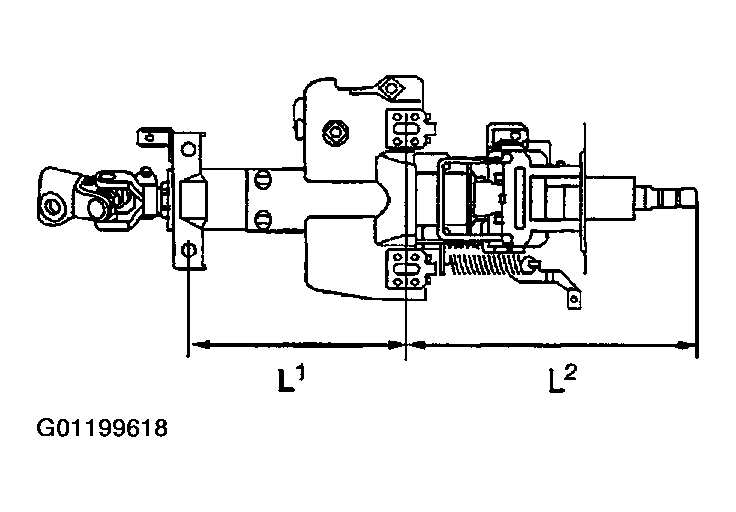

- If vehicle is light shocked, check column length L1 or L2 as shown in Fig 1
. Then if it is out of the specified value, replace with new one.
Steering column length
L1: 181 - 183 mm (7.13 - 7.20 in)
L2: 240.4 - 244.8 mm (9.46 - 9.64 in)
- Check the turning torque of steering column with preload gauge (SST). If it is out of the specified value, repair it or replace with new one.
Turning torque: 0 - 0.2 N.m (0 - 0.02 kg-m, 0 - 1 in-lb)
