Removal And Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear propeller shaft. Refer to REMOVAL .
  2. Remove rear stabilizer mounting bracket with power tool. Refer to STABILIZER BAR .
  3. Remove wheel sensor. Refer to WHEEL SENSORS .
  4. Remove rear drive shaft. Refer to AXLE SHAFT .
  5. Remove electric controlled coupling connector.
  6. Remove electric controlled coupling breather hose and rear final drive breather hose. Refer to ELECTRIC CONTROLLED COUPLING BREATHER HOSE  and REAR FINAL DRIVE BREATHER HOSE .
  7. Remove canister. Refer to EVAPORATIVE EMISSION SYSTEM .
  8. Set transmission jack to rear final drive assembly, and then remove nuts from rear suspension member with power tool.

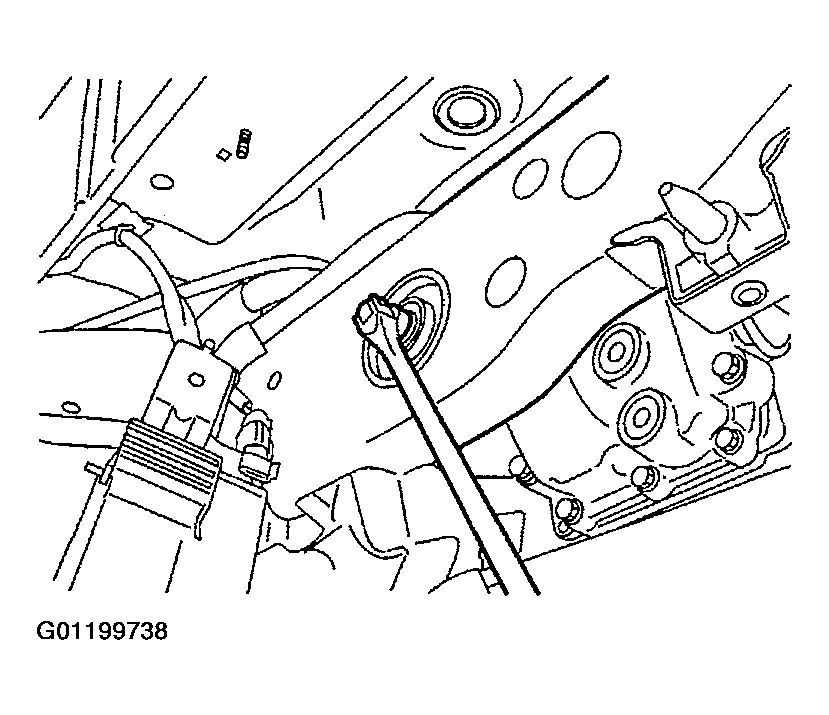

    Fig 1: Removing Rear Stabilizer Mounting Bracket With Power Tool
    G01199738Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not place a transmission jack on the rear cover (aluminum case).
  9. Remove bolt and nut of final drive mount bracket, and then remove rear final drive assembly from vehicle with power tool.

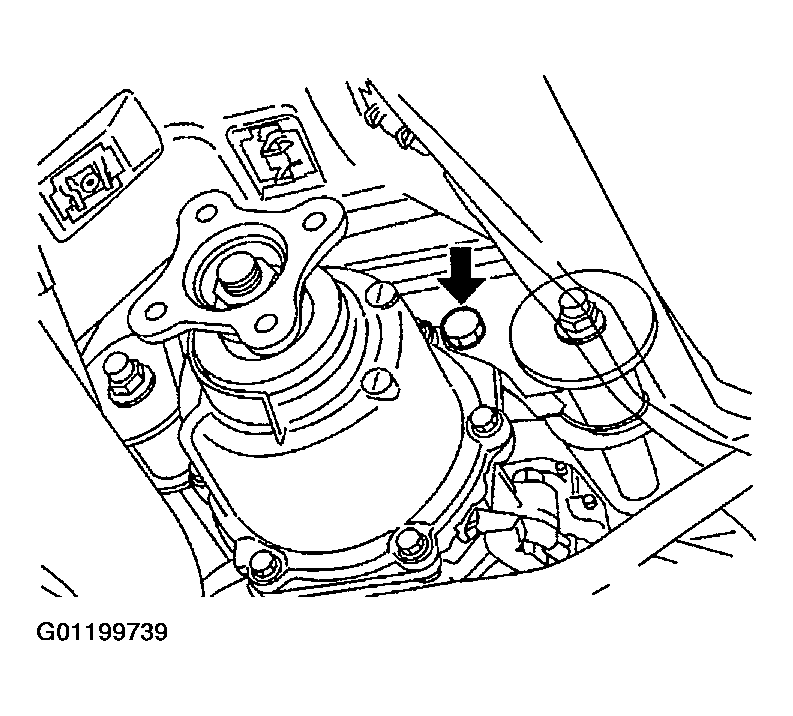

    Fig 2: Locating Bolt And Nut Of Final Drive Mount Bracket
    G01199739Courtesy of NISSAN MOTOR CO., U.S.A.
