DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC Confirmation Procedure has been previously performed, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Turn ignition switch ON. (Do not start engine.)
Select DATA MONITOR mode for TRANSMISSION with CONSULT-II

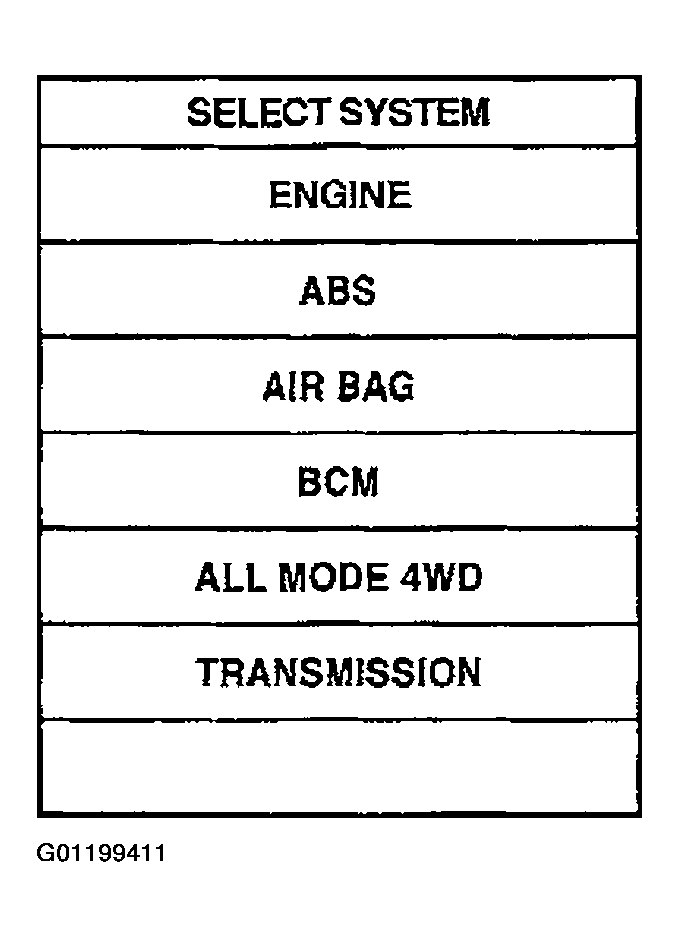

Fig 1: CONSULT-II TRANSMISSION Display
Courtesy of NISSAN MOTOR CO., U.S.A.
In fully depressed and fully released conditions, wait for 5 seconds.
If DTC is detected, go to DIAGNOSTIC PROCEDURE .
