The LAN system consists of auto amp., mode door motor, air mix door motor and intake door motor. A configuration of these components is shown in the diagram below.

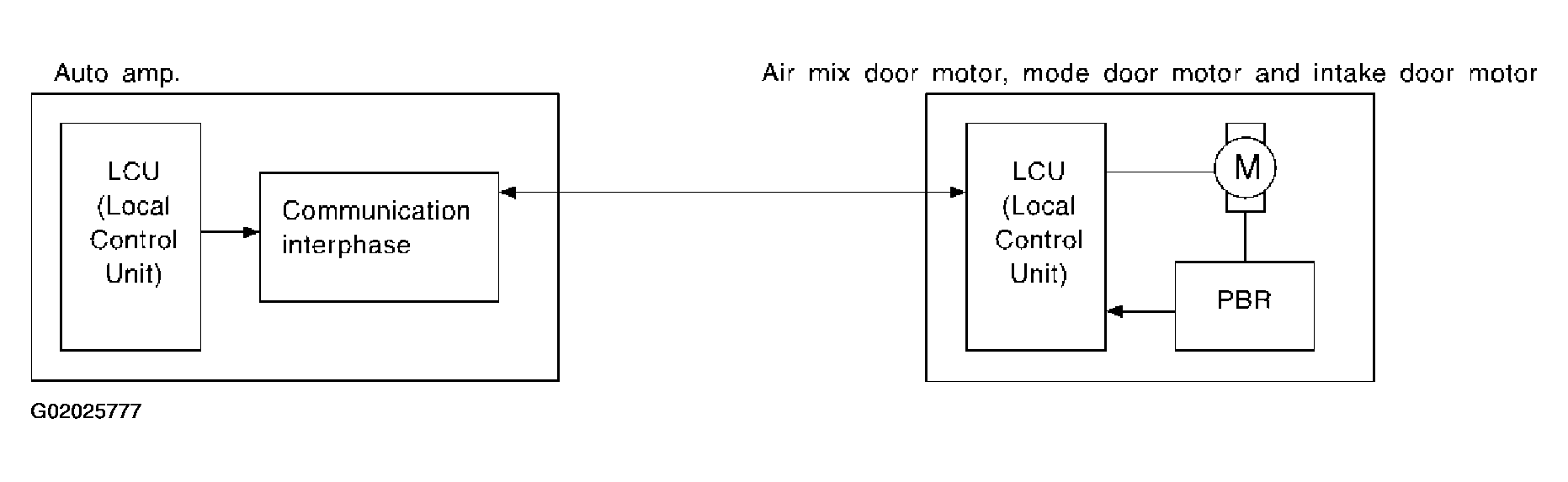

Fig 1: Locating Description Of Air Conditioner LAN Control System
