Shift Control Components

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install adapter setting plate to adapter plate, and then secure adapter setting plate in a vise.

    Tool number : ST224490000 ( - )

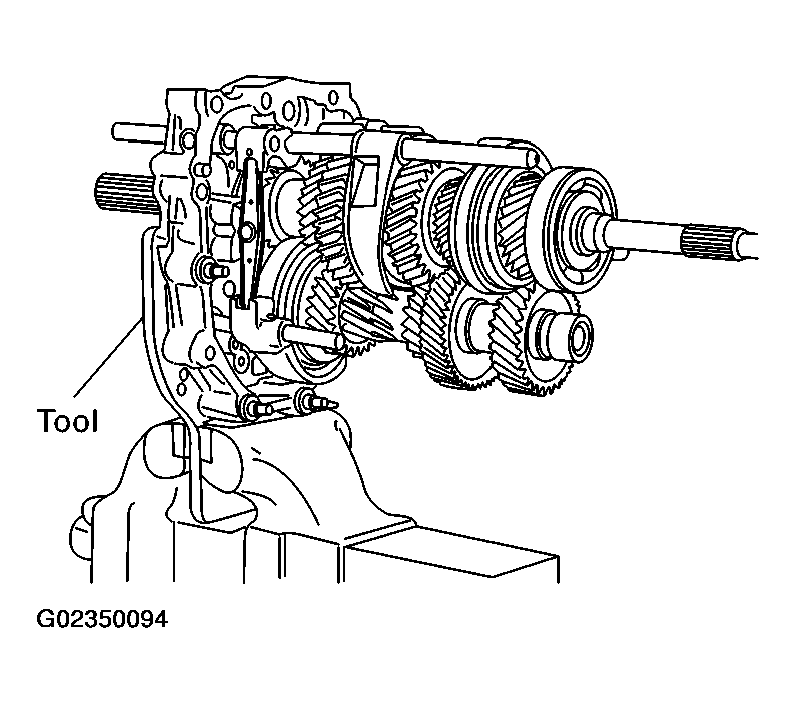

    Fig 1: Securing Adapter Setting Plate In A Vise
    G02350094Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove baffle plate mounting bolts and baffle plate from adapter plate.
    NOTE: Mounting bolts are installed both from the front side and the reverse side of adapter plate.

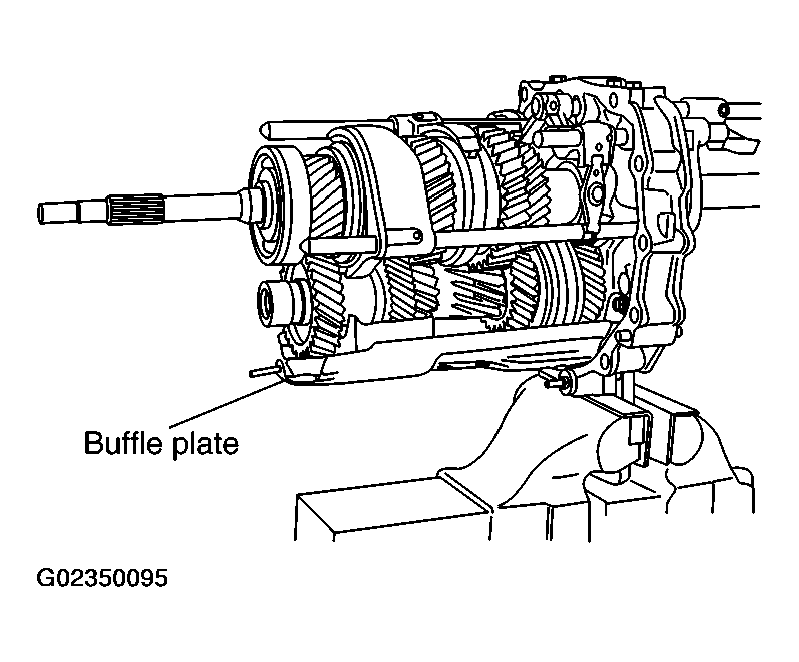

    Fig 2: Locating Baffle Plate
    G02350095Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove magnet from adapter plate.
  4. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove striking lever and striking rod.

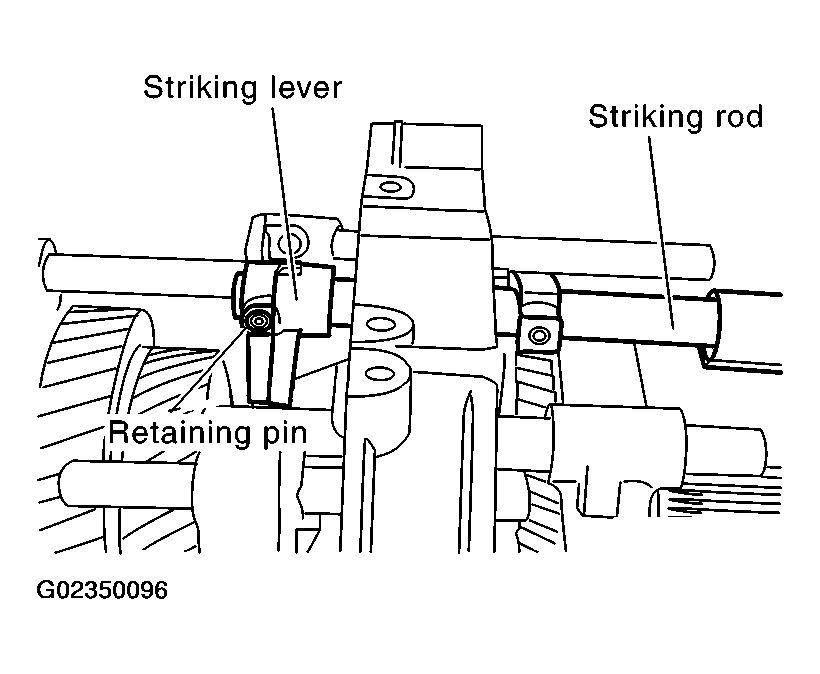

    Fig 3: Locating Retaining Pin, Striking Lever And Striking Rod
    G02350096Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove check ball plugs, check ball springs and check balls from adapter plate.

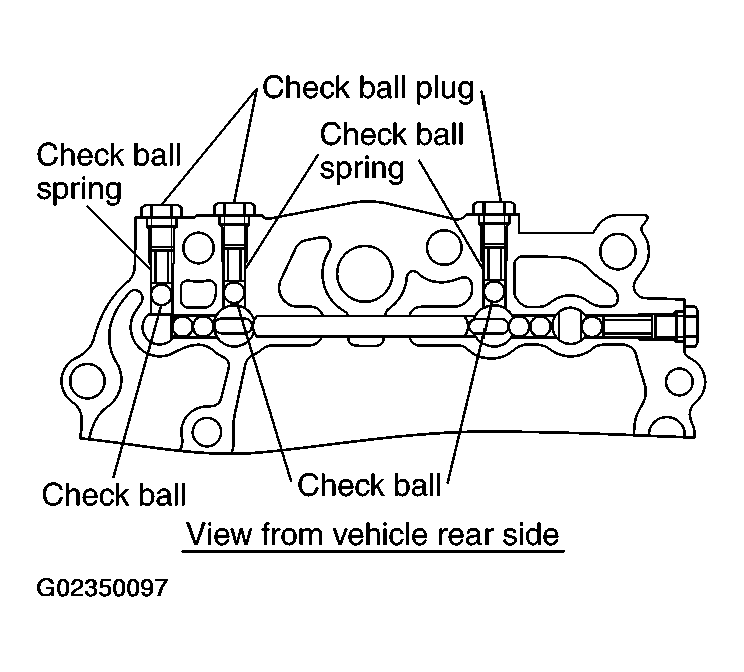

    Fig 4: Locating Check Ball Plugs, Check Ball Springs And Check Balls
    G02350097Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove 3rd-4th control lever mounting bolts and 3rd-4th control lever from adapter plate.

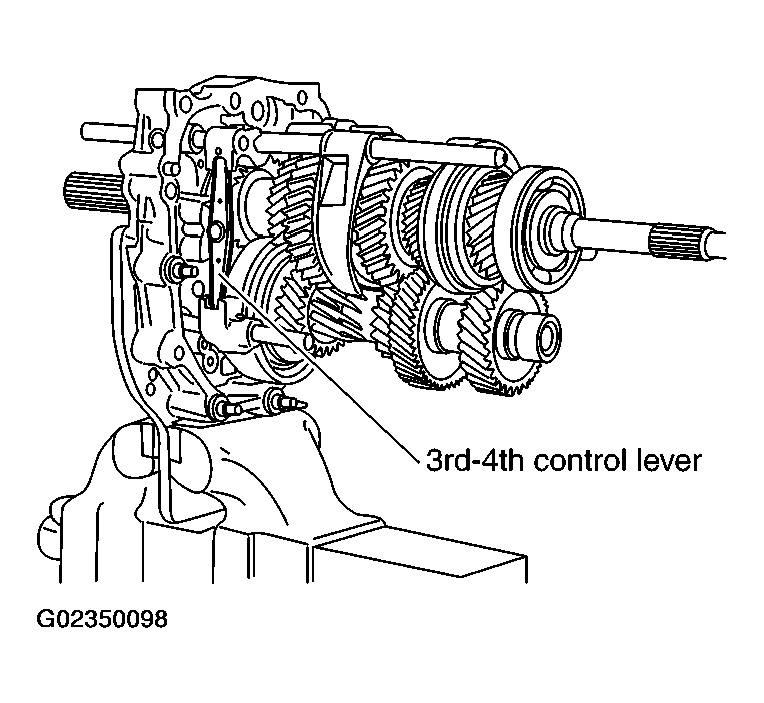

    Fig 5: Locating 3rd-4th Control Lever
    G02350098Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove shifter cap from 3rd-4th control lever.
  8. Remove check ball plug, check ball spring and check ball from adapter plate.

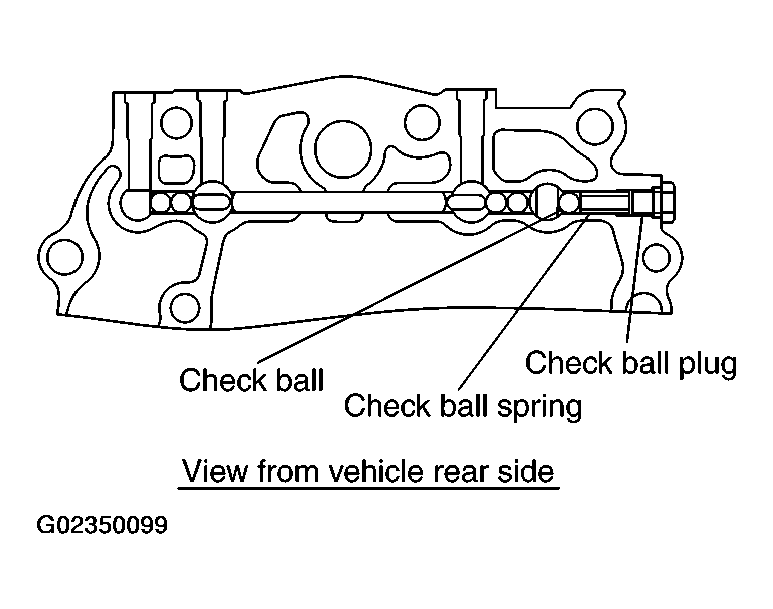

    Fig 6: Removing Check Ball Plug, Check Ball Spring And Check Ball
    G02350099Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Drive out retaining pin using a pin punch [6mm (0.24in) dia.], and remove 3rd-4th fork rod bracket and 3rd-4th fork rod.

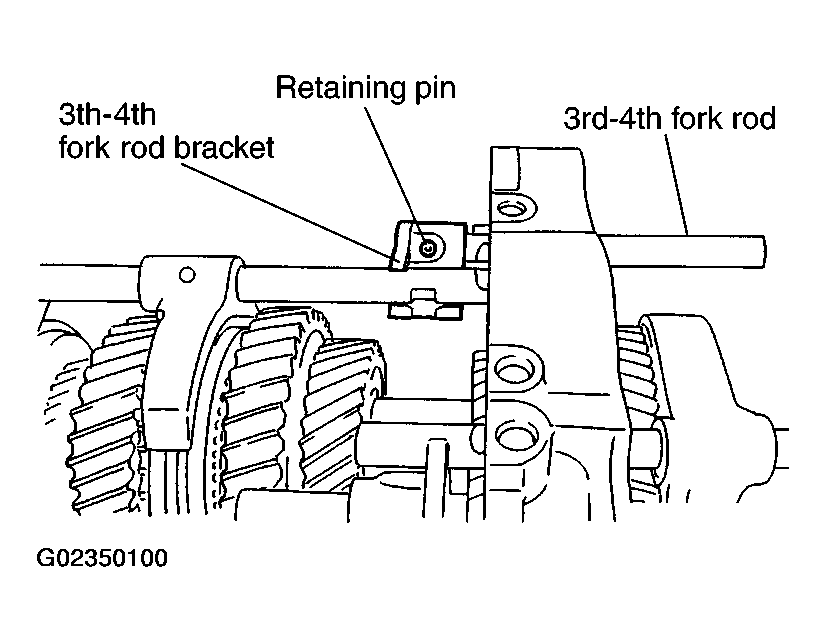

    Fig 7: Locating Retaining Pin, 3rd-4th Fork Rod Bracket And 3rd-4th Fork Rod
    G02350100Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 3rd-4th fork rod (reversal side) and 3rd-4th shift fork.

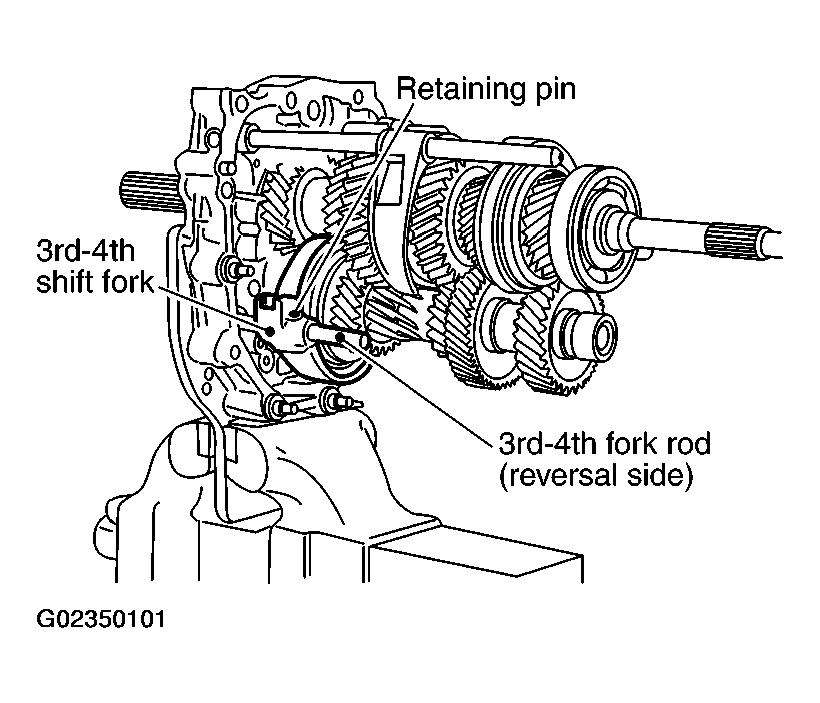

    Fig 8: Locating Retaining Pin, 3rd-4th Fork Rod (Reversal Side) And 3rd-4th Shift Fork
    G02350101Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove check balls and interlock pin from adapter plate.

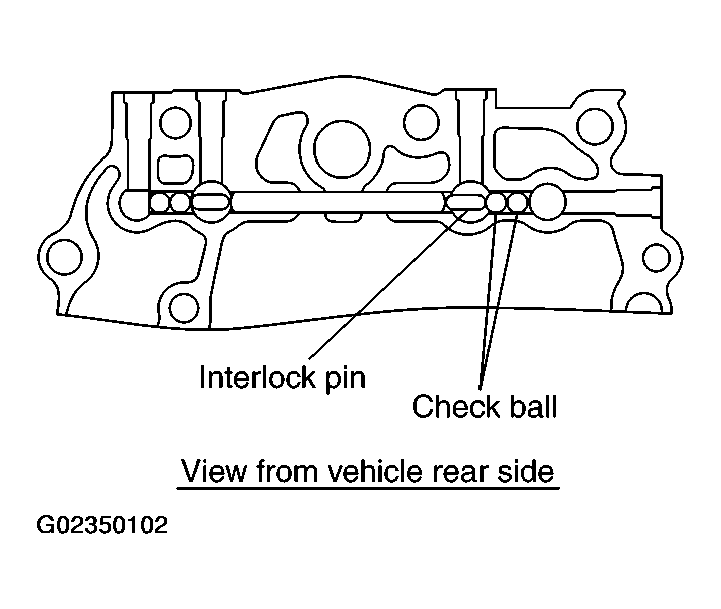

    Fig 9: Locating Check Balls And Interlock Pin
    G02350102Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 1st-2nd fork rod and 1st-2nd shift fork.

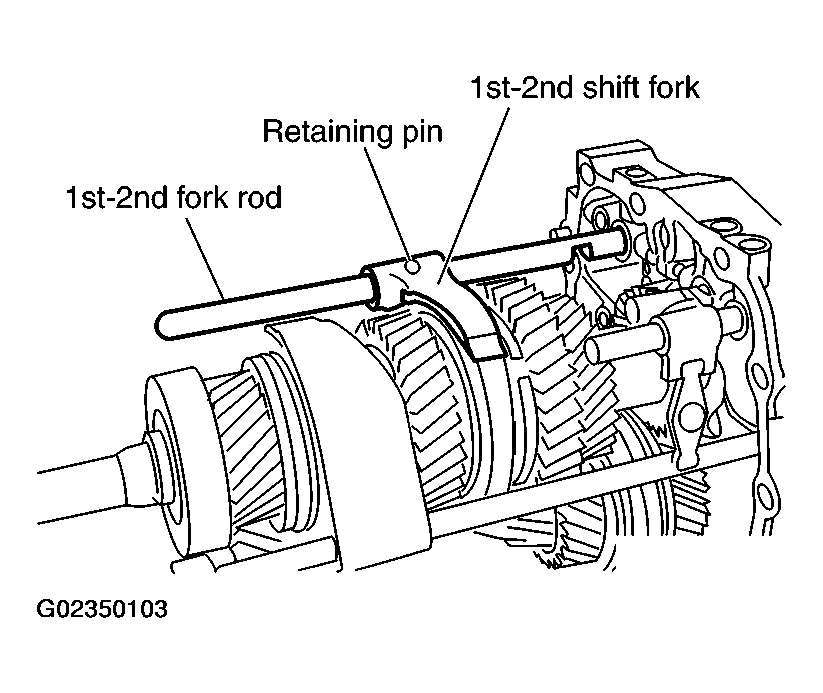

    Fig 10: Locating Retaining Pin, 1st-2nd Fork Rod And 1st-2nd Shift Fork
    G02350103Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove interlock plunger and interlock pin from adapter plate.

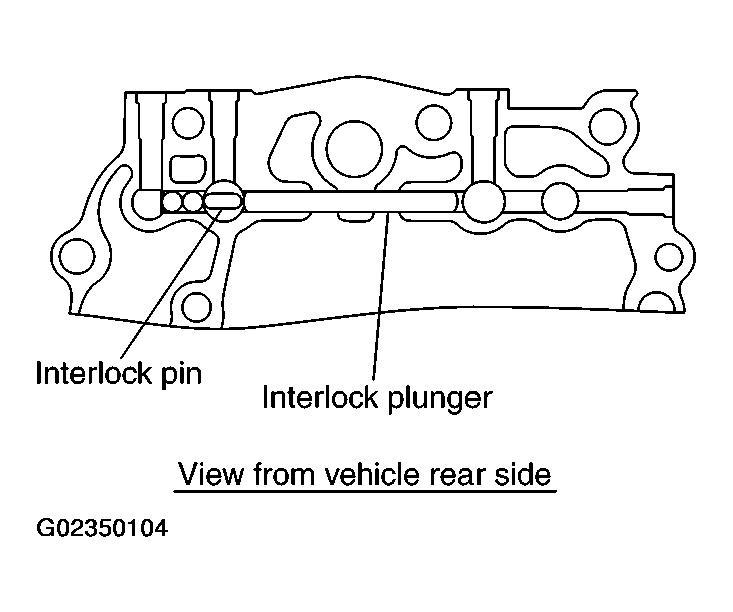

    Fig 11: Locating Interlock Plunger And Interlock Pin
    G02350104Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove reverse fork rod and reverse shift fork.

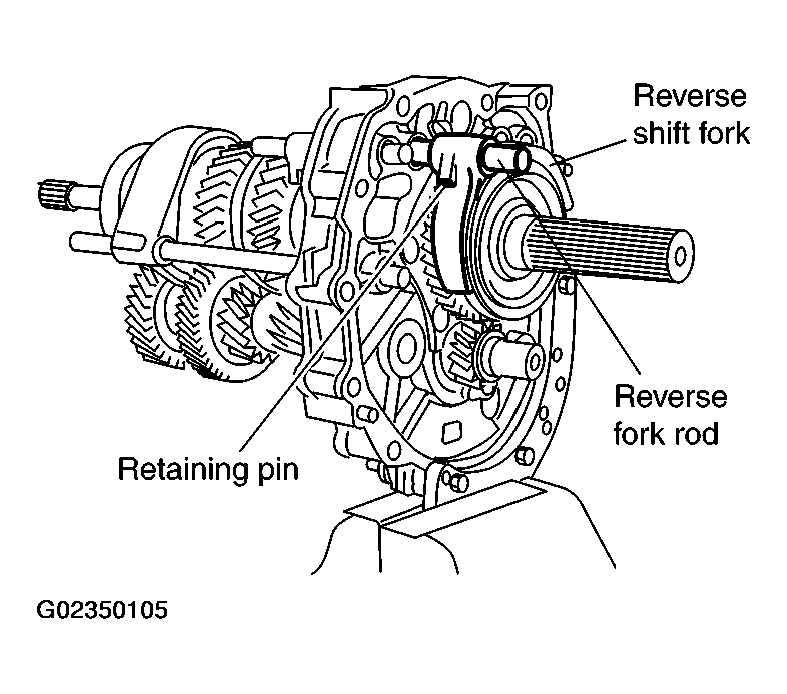

    Fig 12: Locating Retaining Pin, Reverse Fork Rod And Reverse Shift Fork
    G02350105Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove check balls from adapter plate.

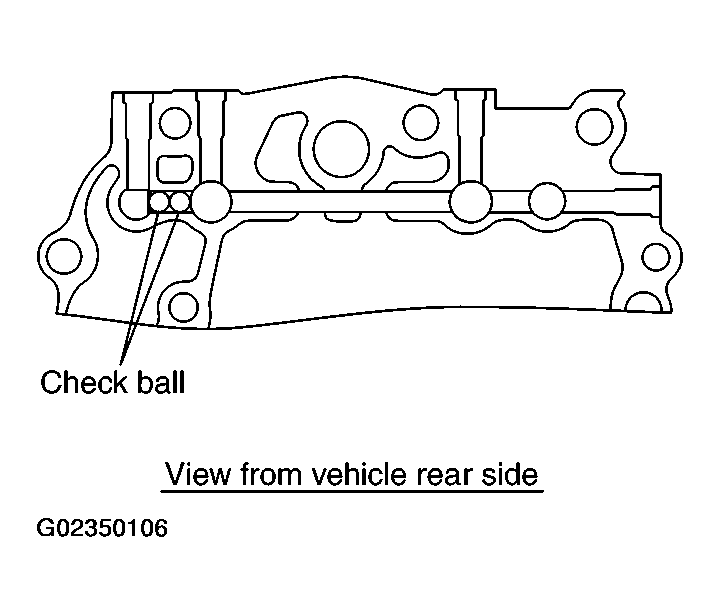

    Fig 13: Locating Check Balls
    G02350106Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove 5th-6th control lever mounting bolts, and 5th-6th control lever from adapter plate.

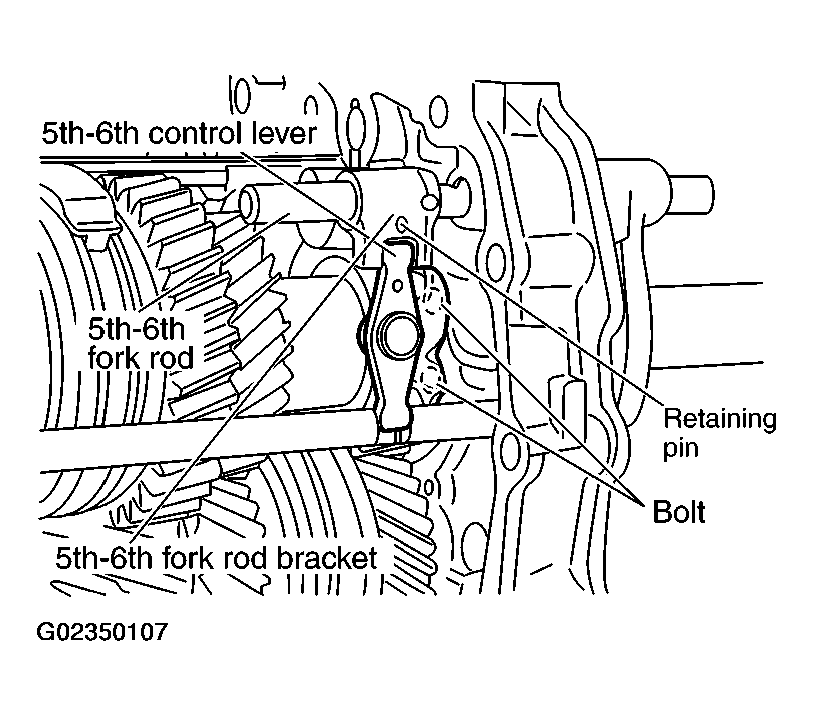

    Fig 14: Locating 5th-6th Control Lever And 5th-6th Fork Rod Bracket
    G02350107Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 5th-6th fork rod and 5th-6th fork rod bracket.

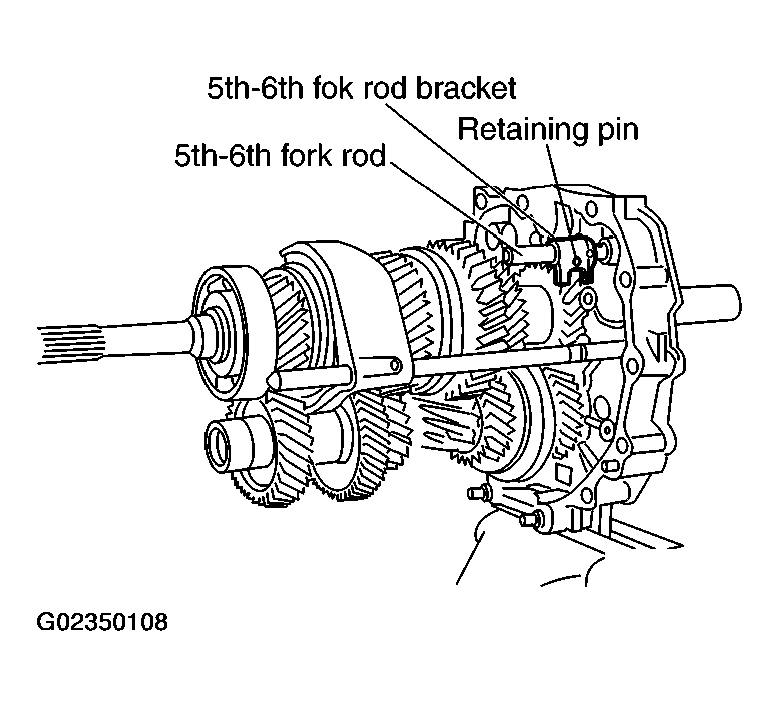

    Fig 15: Locating Retaining Pin, 5th-6th Fork Rod And 5th-6th Fork Rod Bracket
    G02350108Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 5th-6th fork rod (reversal side) and 5th-6th shift fork.

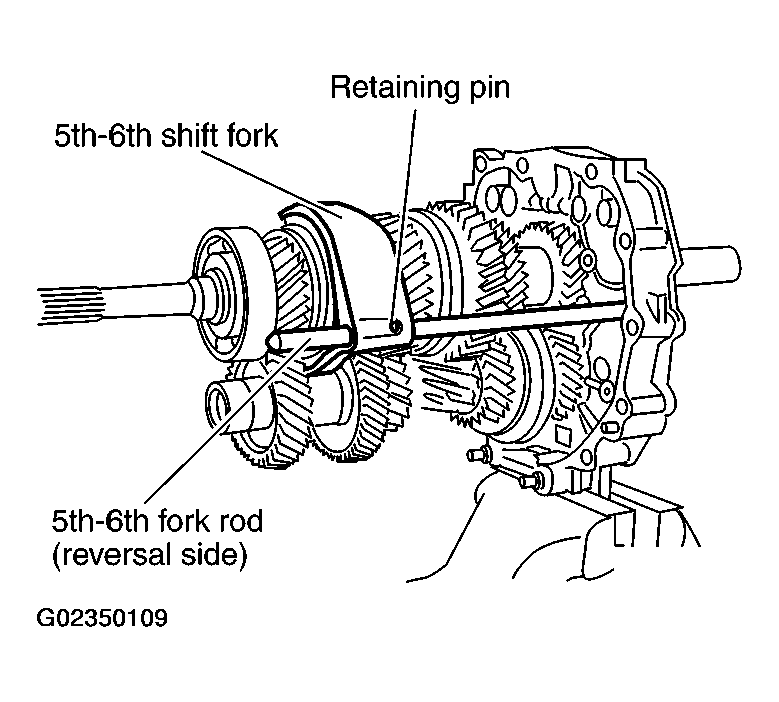

    Fig 16: Locating Retaining Pin, 5th-6th Fork Rod (Reversal Side) And 5th-6th Shift Fork
    G02350109Courtesy of NISSAN MOTOR CO., U.S.A.
