Check Front Door Key Cylinder Switch

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check Door Key Cylinder Switch Signal
With CONSULT-II

Check front door key cylinder switch ("KEY CYL LK-SW", "KEY CYL UN-SW") in DATA MONITOR mode in CONSULT-II. Refer to DATA MONITOR .
1. When key inserted in front key cylinder is turned to LOCK:
  KEY CYL LK-SW: ON
2. When key inserted in front key cylinder is turned to UNLOCK:
  KEY CYL UN-SW: ON

  Without CONSULT-II

  Check front door key cylinder switch operation in "SWITCH MONITOR" mode. Refer to SWITCH MONITOR .

  OK or NG
  1. OK: System is OK.
  2. NG: GO TO 2.
3. Check Door Key Cylinder Switch
  Check continuity between door key cylinder switch connector terminals.

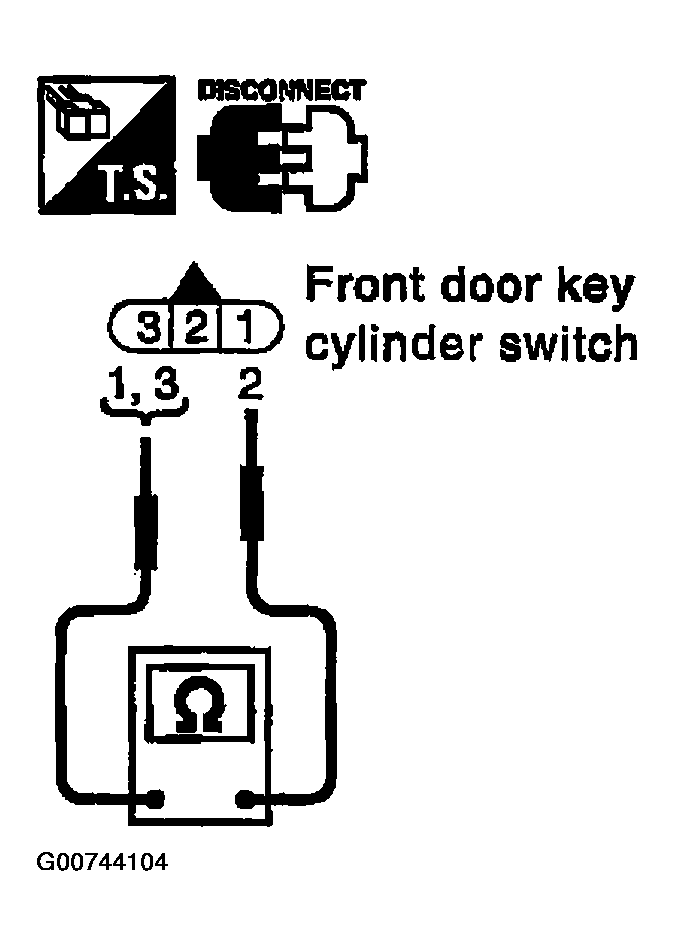

  Fig 1: Checking Door Key Cylinder Switch (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

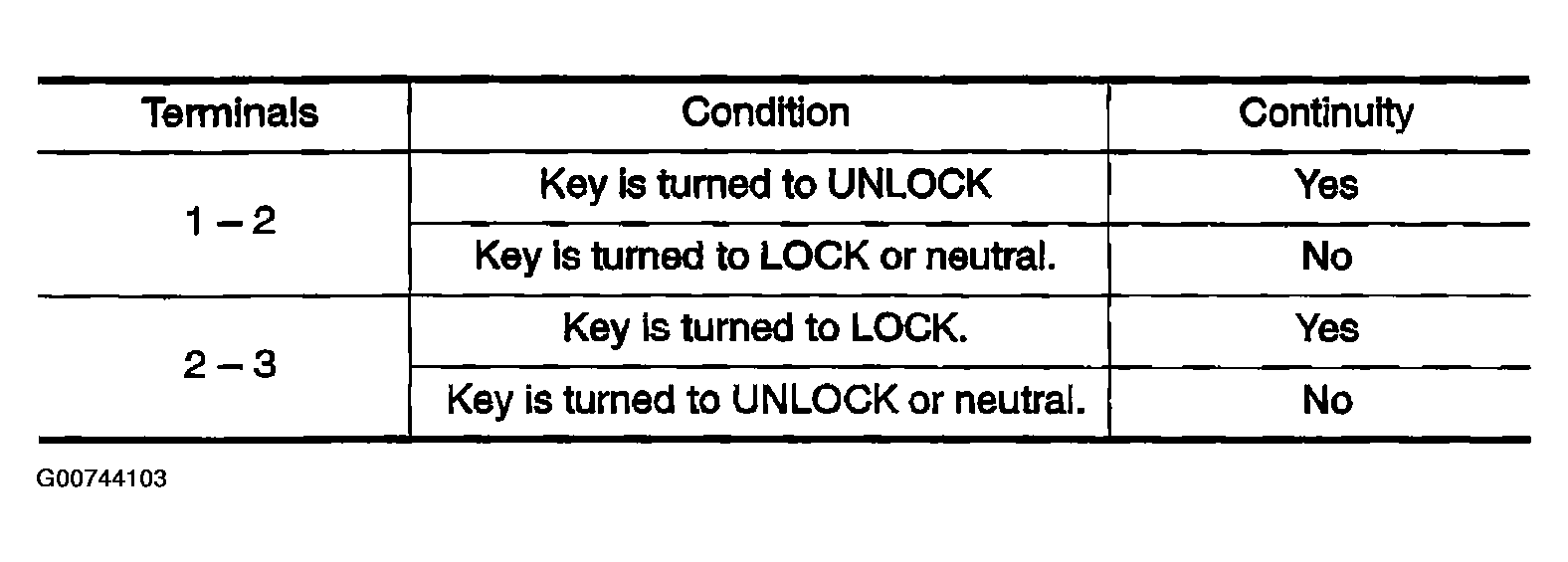

  Fig 2: Checking Door Key Cylinder Switch (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG
  1. OK: Check the following.
    - Harness between front key cylinder switch and driver door control unit
    - Harness between front key cylinder switch and ground
  2. NG: Replace front door key cylinder switch.
