Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

In following items with care, install components in reverse order of removal. Refer to REMOVAL AND INSTALLATION .

Confirm rear cover cap on steering gear consists with steering gear when front wheels are set in straight ahead direction as shown.

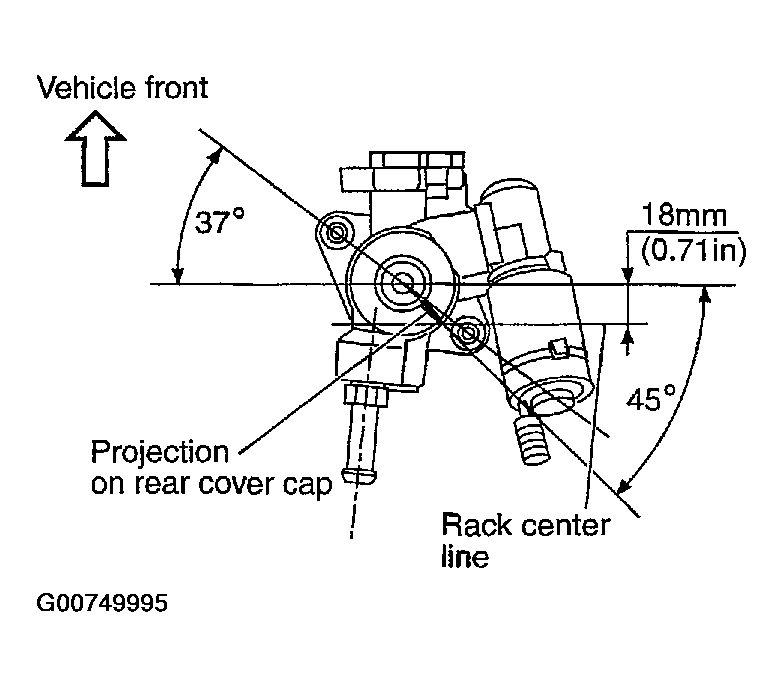

Fig 1: Confirming Steering Gear Consists When Front Wheels Are Straight Ahead
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten steering gear assembly as shown.

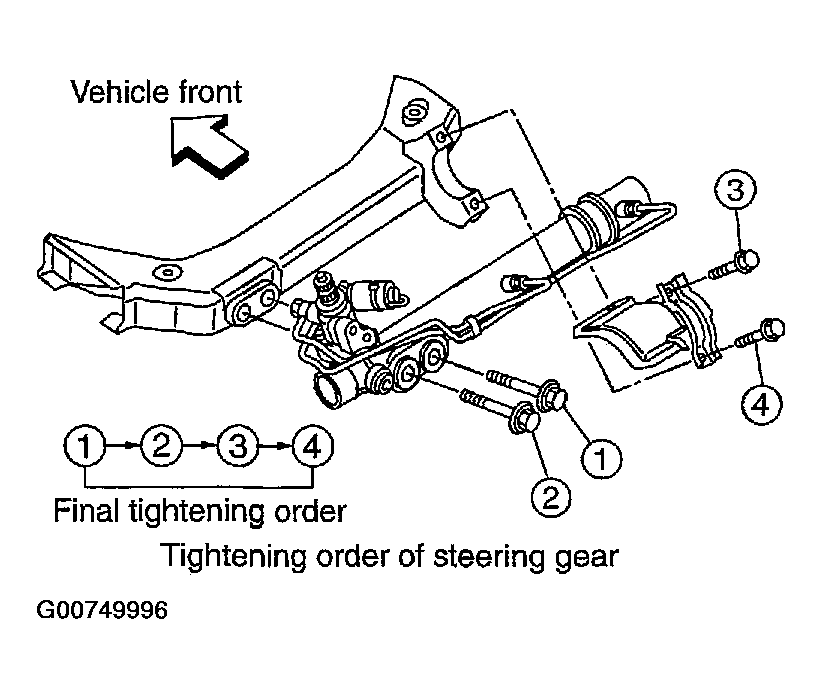

Fig 2: Tightening Steering Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Confirm if slit of lower yoke of lower joint fits with projection on rear cover cap.
After installation, bleed air from piping. Refer to AIR BLEEDING FROM HYDRAULIC SYSTEM .

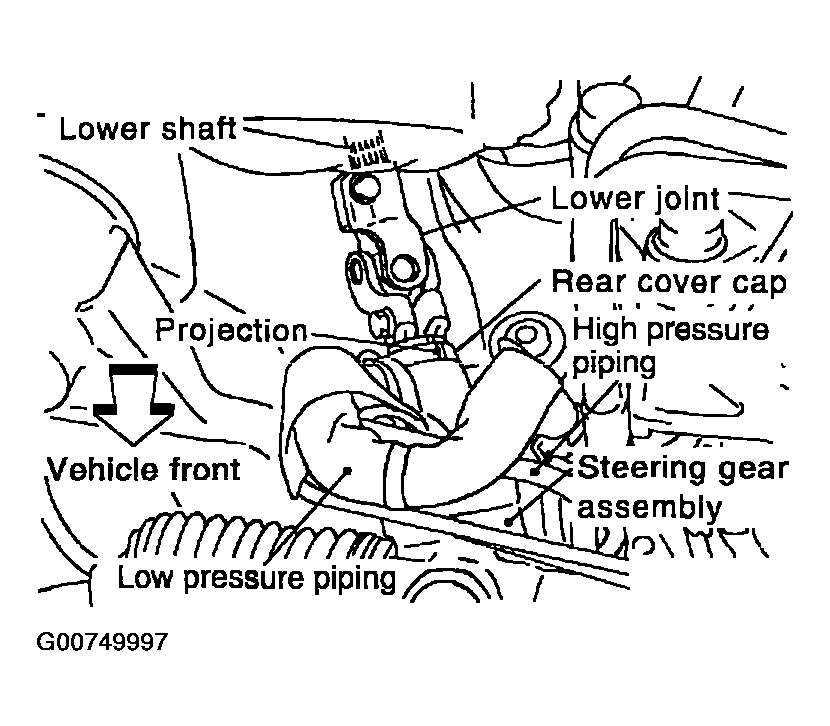

Fig 3: Identifying Steering Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
