Removal And Installation
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

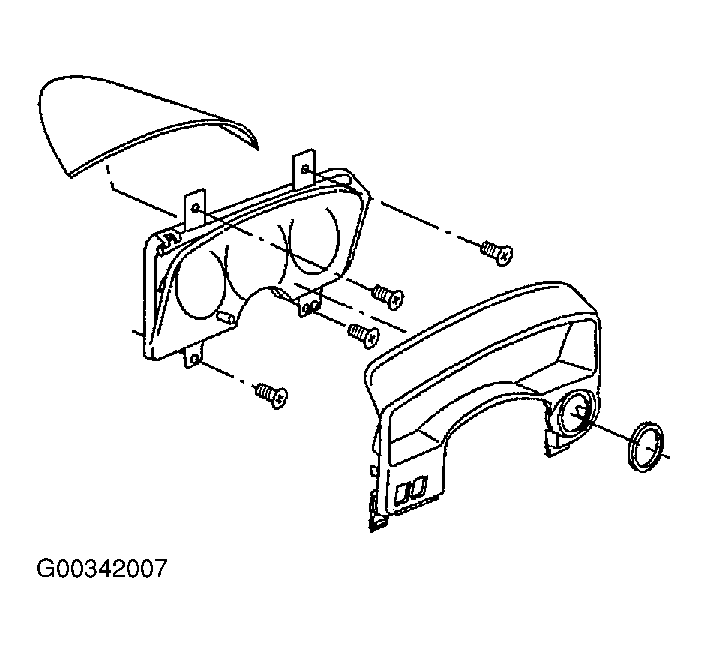

- Remove the combination meter cover.
- Remove cluster lid A.
- Remove screws using power tool and remove the combination meter assembly.
- Disconnect electrical connectors.
Installation is in the reverse order of removal.
Courtesy of NISSAN MOTOR CO., U.S.A.
