Floor Shift

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

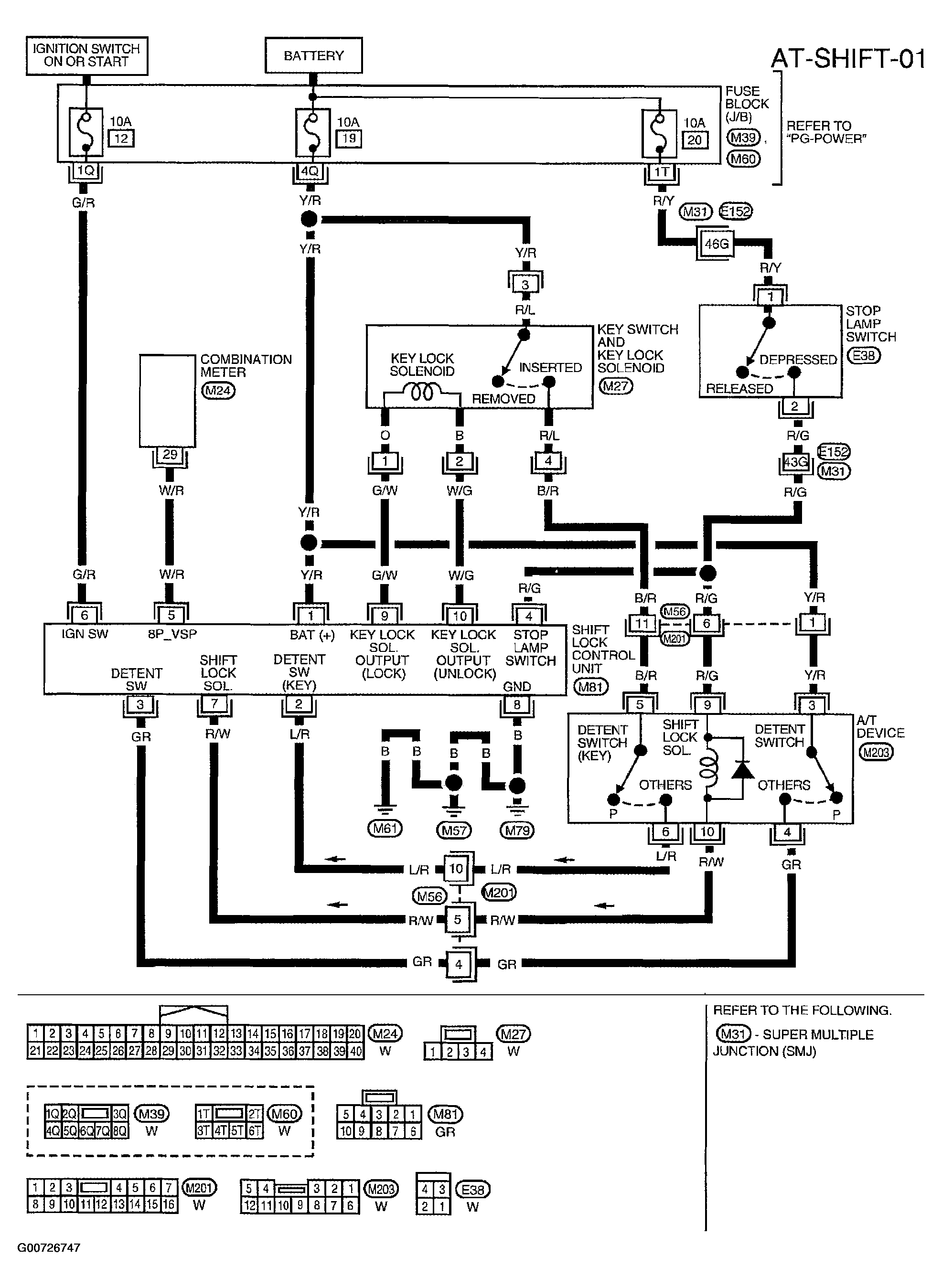

Fig 1: Shift Lock System Wiring Diagram AT-SHIFT-01 (Floor Shift)
G00726747Courtesy of NISSAN MOTOR CO., U.S.A.
