Section 297 (Rear Suspension): Description

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Murano uses an independent multi-link suspension system with coil springs and stabilizer bar. See Fig 1 .

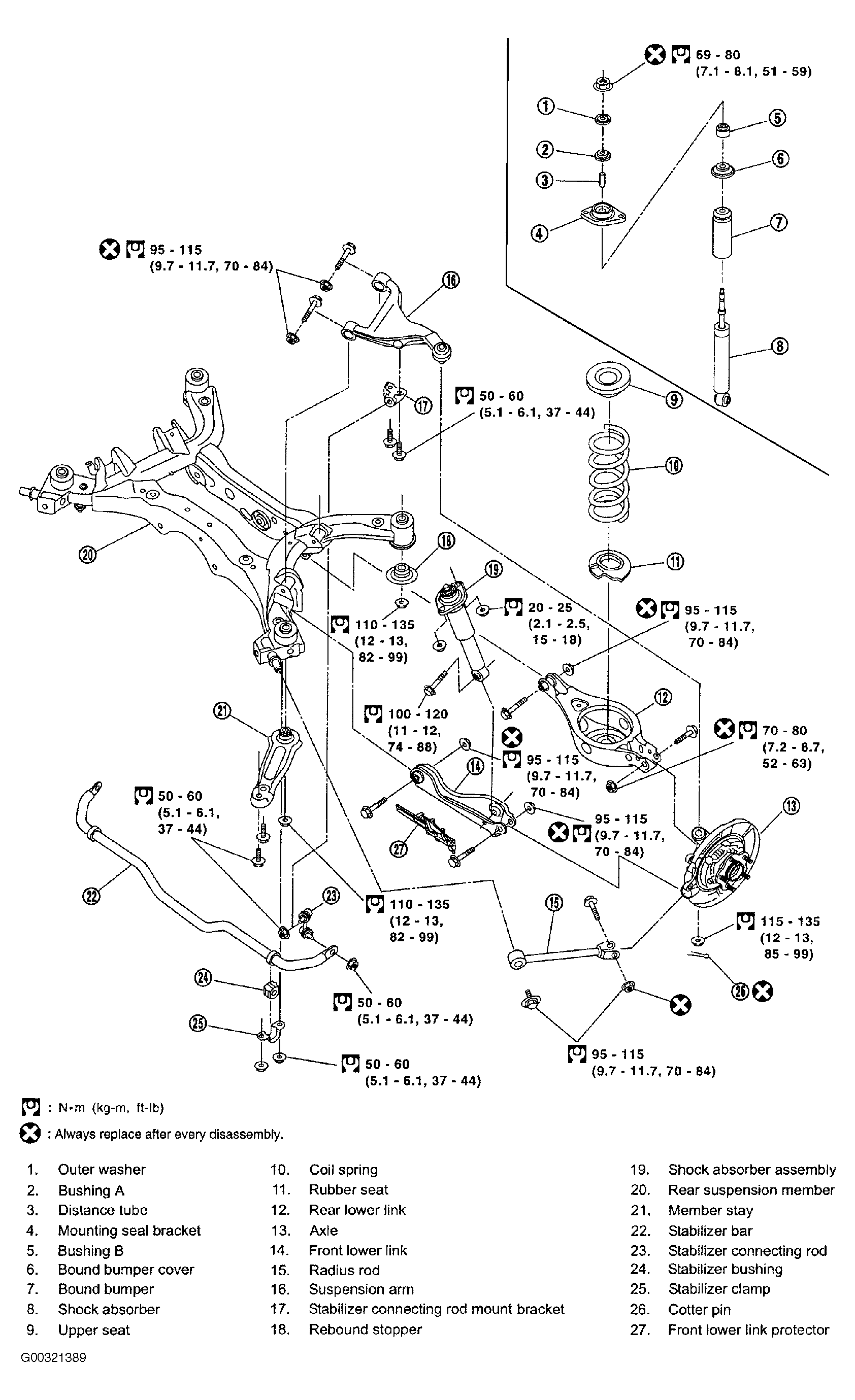

Fig 1: Exploded View Of Rear Suspension Components
G00321389Courtesy of NISSAN MOTOR CO., U.S.A.
