Base Audio System: Wiring Diagram

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

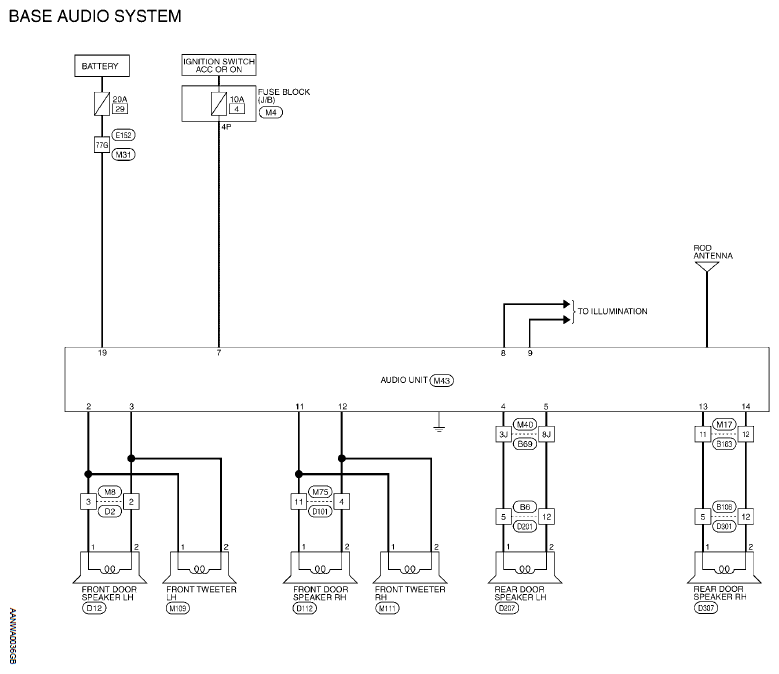

Fig 1: Base Audio System Wiring Diagram

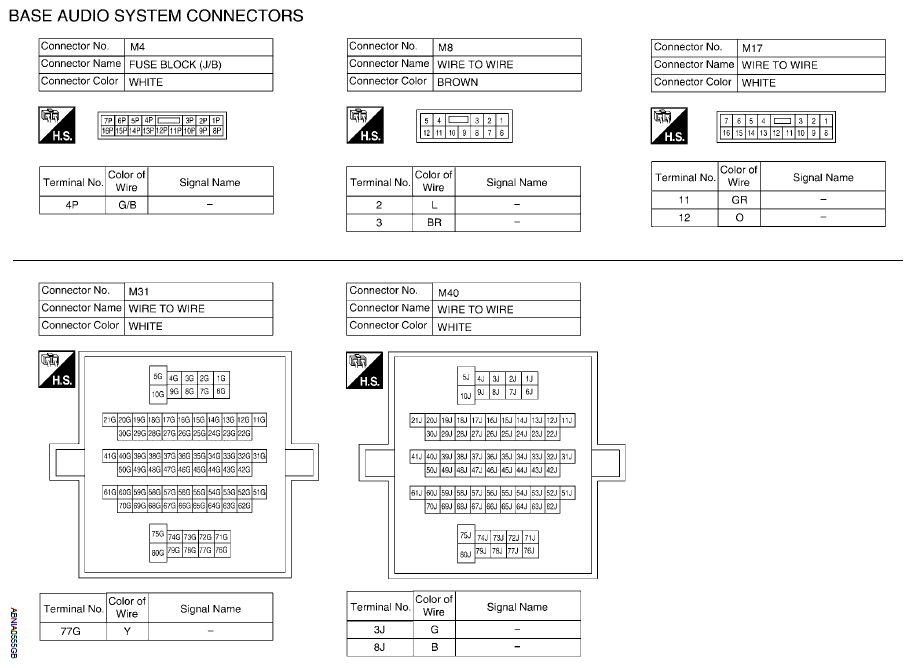

Fig 2: Base Audio System Connectors (1 Of 5)

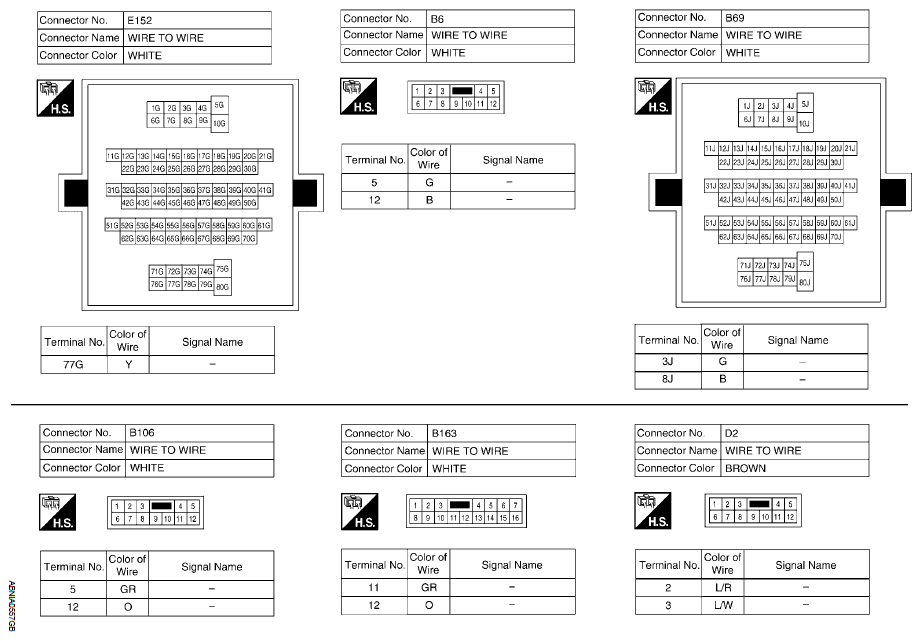

Fig 3: Base Audio System Connectors (2 Of 5)

Fig 4: Base Audio System Connectors (3 Of 5)

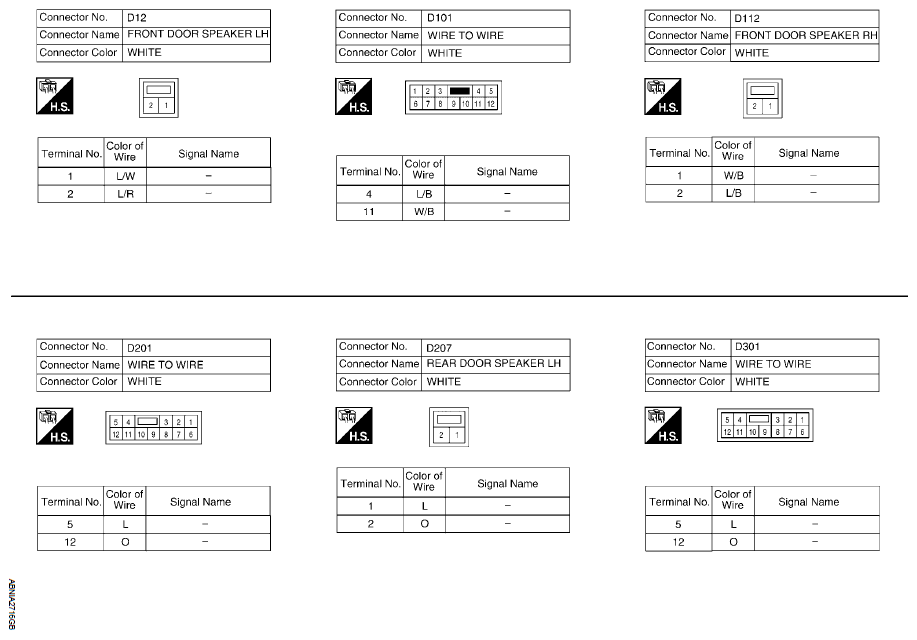

Fig 5: Base Audio System Connectors (4 Of 5)

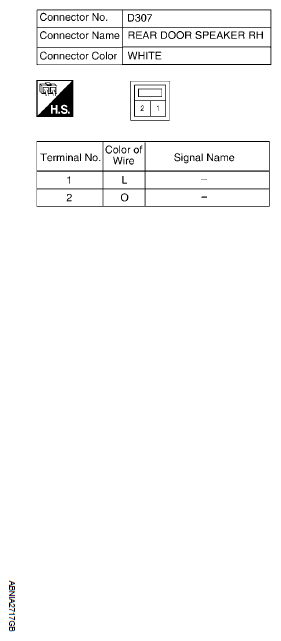

Fig 6: Base Audio System Connectors (5 Of 5)
