Collect CONSULT-III Data

Print out or save the following CONSULT-III data.

SELF-DIAG RESULTS
CAN DIAG SUPPORT MNTR ("ECU list" included)

NOTE: Some items may not be needed depending on CAN system type of vehicle.

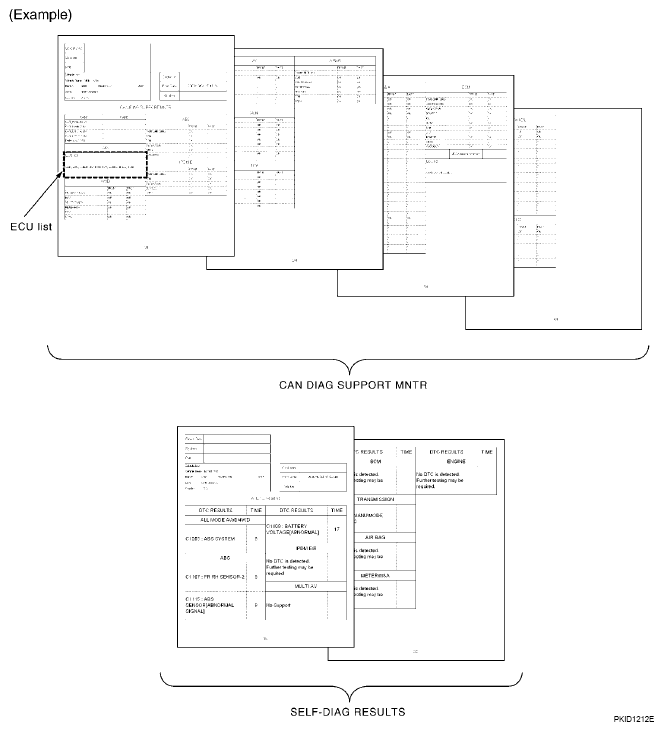

Fig 1: Display - CAN Diag Support MNTR And Self-Diag Results Copy Sheet

Create On-board Diagnosis Copy Sheet

Display the trouble diagnosis result of CAN communication with the on-board diagnosis function on the vehicle monitor, etc. Copy them on the on-board diagnosis copy sheet.

NOTE: For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-III is not available.)

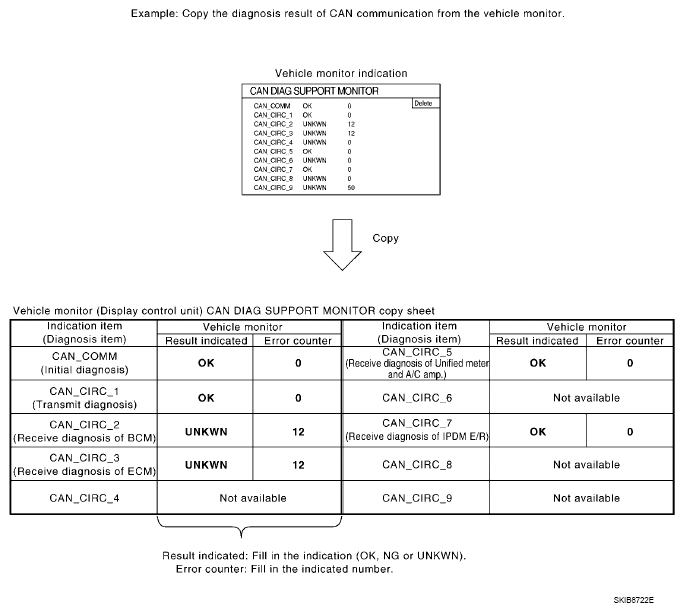

Fig 2: Creating On-Board Diagnosis Copy Sheet
