Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano and 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine assembly from vehicle, and separate front suspension member, transaxle and transfer (AWD models) assembly from engine. Refer to ENGINE ASSEMBLY  .
  2. Install engine sub-attachment to right side of cylinder block, then lift engine, and mount it onto engine stand. Refer to CYLINDER BLOCK  .
  3. Drain engine oil. Refer to CHANGING ENGINE OIL .
  4. Drain engine coolant. Refer to CHANGING ENGINE COOLANT .
  5. Remove engine harnesses.
  6. Remove water hoses.
  7. Remove idler pulley and bracket.
  8. Remove power steering oil pump assembly. Refer to POWER STEERING OIL PUMP .
  9. Remove alternator. Refer to GENERATORS & REGULATORS .
  10. Remove RH and LH rocker covers with power tool. Refer to ROCKER COVER  .
  11. Obtain compression TDC of No. 1 cylinder with following procedure:
    1. Rotate crankshaft pulley clockwise to align timing mark (grooved line without color) with timing indicator.
    2. Check that intake and exhaust cam noses on No. 1 cylinder (engine front side of RH bank) are located as shown in the figure.
      • If not, turn crankshaft one revolution (360 degrees) and align as shown in the figure.

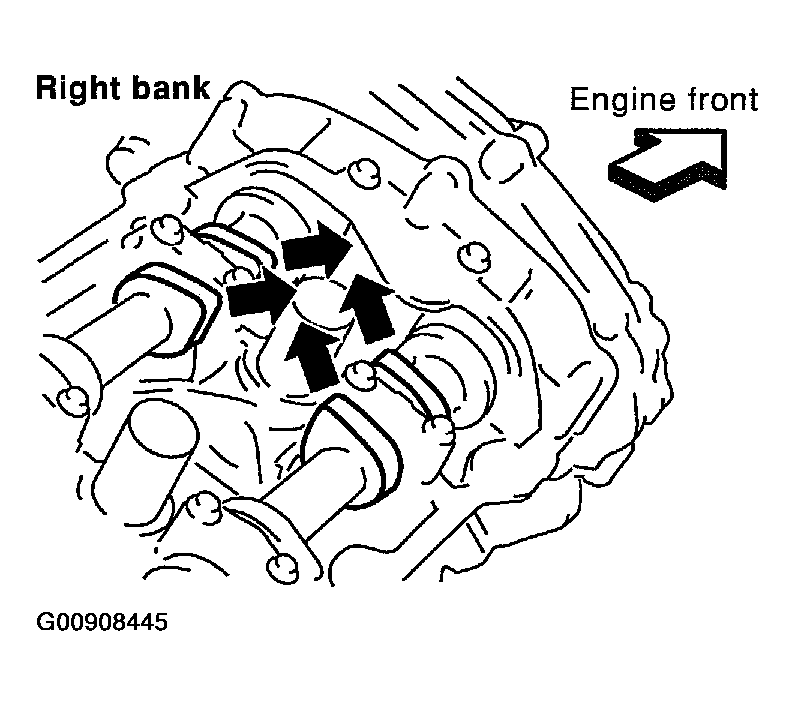

        Fig 1: View Of Intake And Exhaust Cam Noses On No. 1 Cylinder
        G00908445Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove lower and upper oil pans. Refer to OIL PAN AND OIL STRAINER  .
  13. Remove crankshaft pulley as follows:
    1. Lock crankshaft with hammer handle or similar tool to loosen fixing bolts.
    2. Remove crankshaft pulley with suitable puller.
  14. Remove RH and LH intake valve timing control covers.
    • Loosen bolts in reverse order as shown in the figure.
    • Use seal cutter [SST: KV10111100 (J37228)] or equivalent tool to cut liquid gasket for removal.
    CAUTION: Shaft is internally jointed with intake camshaft sprocket center hole. When removing, keep it horizontal until it is completely disconnected.

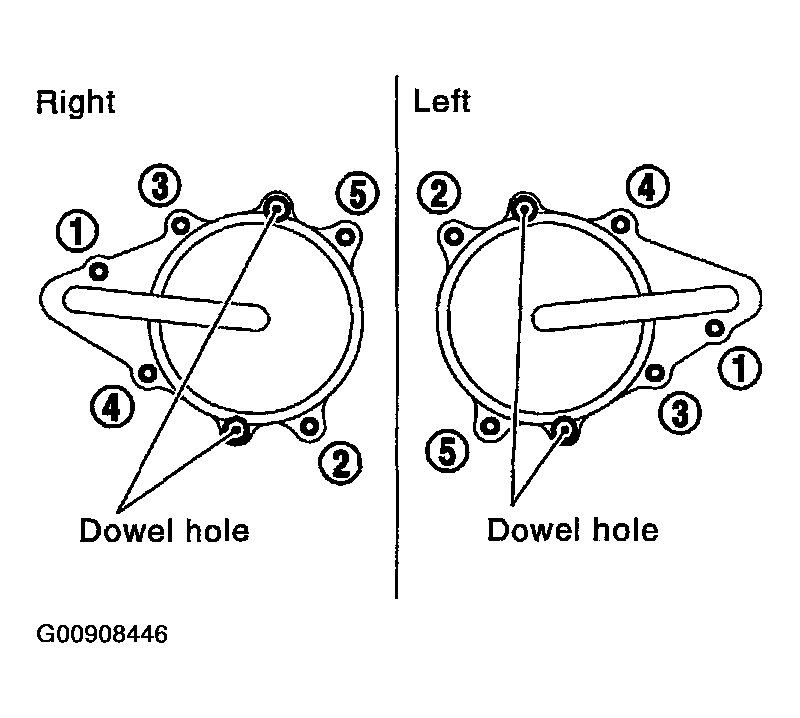

    Fig 2: View Of Torque Sequence For RH And LH Intake Valve Timing Control Covers
    G00908446Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove RH engine mounting bracket. Refer to ENGINE ASSEMBLY  .
  16. Remove front timing chain case with the following procedure:
    1. Loosen mounting bolts in reverse order as shown in the figure.

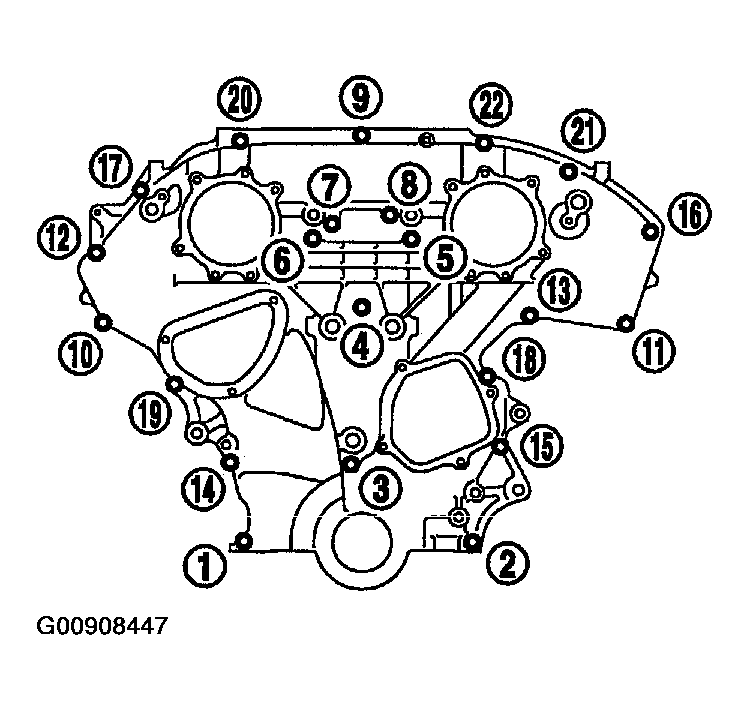

      Fig 3: Front Timing Chain Case Torque Sequence
      G00908447Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Insert suitable size tool into the notch at the top of front timing chain case as shown (1).
    3. Pry off case by moving tool as shown (2).
      CAUTION:
      • Do not use screwdrivers or something similar.
      • After removal, handle front timing chain case carefully so it does not tilt, cant, or warp under a load.

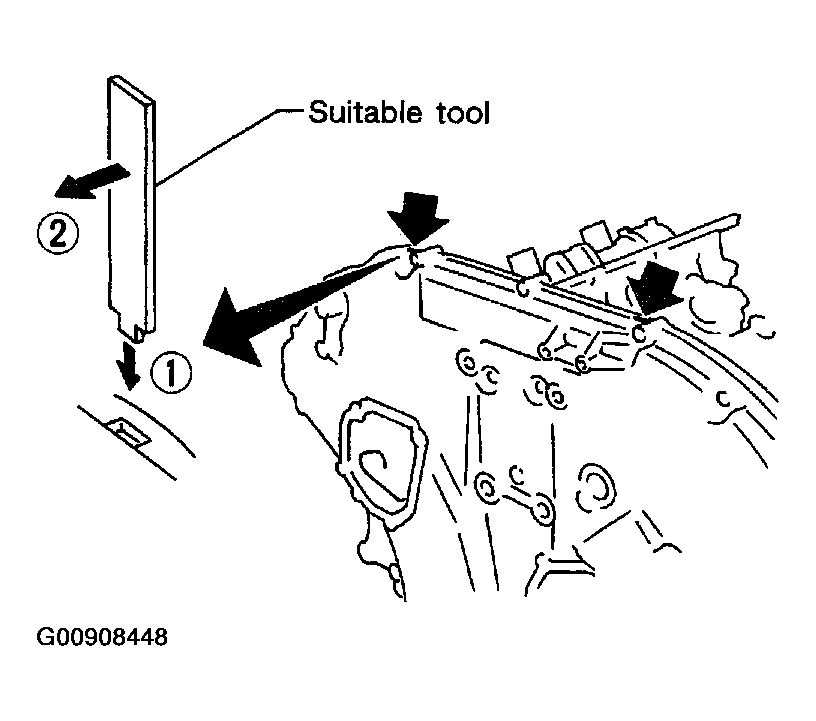

        Fig 4: View Of Suitable Tool
        G00908448Courtesy of NISSAN MOTOR CO., U.S.A.
      • Use seal cutter [SST: KV10111100 (J37228)] or equivalent tool to cut liquid gasket for removal.
  17. Remove water pump cover and chain tensioner cover from front timing chain case.
    • Use seal cutter [SST: KV10111100 (J37228)] or equivalent tool to cut liquid gasket for removal.
  18. Remove front oil seal from front timing chain case using suitable tool.
    • Use screwdriver for removal.
    CAUTION: Exercise care not to damage front timing chain case.

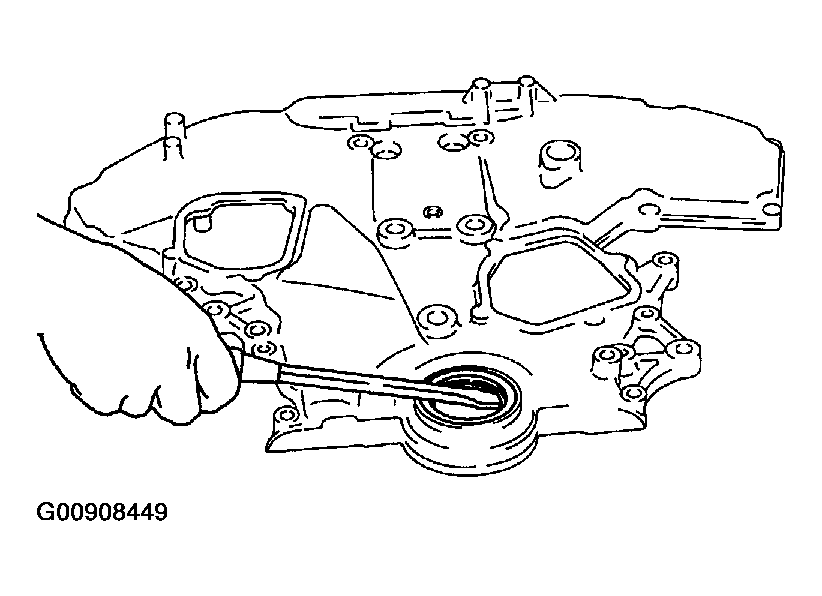

    Fig 5: Removing Front Oil Seal
    G00908449Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Remove timing chain tensioner with the following procedure:
    1. Pull lever down and release plunger stopper tab.
      • Plunger stopper tab can be pushed up to release (coaxial structure with lever).
    2. Insert stopper pin into tensioner body hole to hold lever, and keep tab released.
      NOTE: Allen wrench [2.5 mm (0.098 in)] is used for stopper pin as an example.

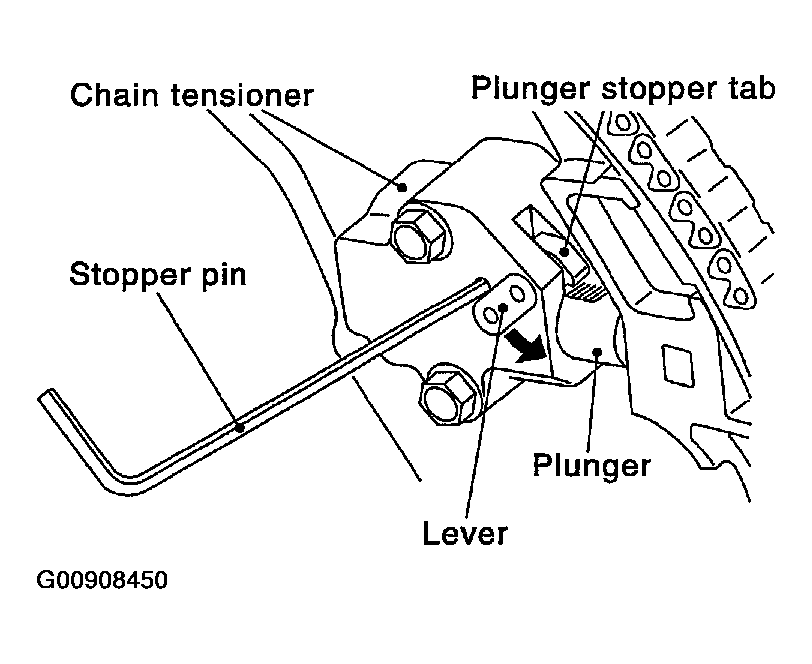

      Fig 6: Example Of Stopper Pin
      G00908450Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Insert plunger into tensioner body by pressing slack guide.
    4. Keep slack guide pressed and hold it by pushing stopper pin through the lever hole and body hole.
    5. Remove mounting bolts and remove timing chain tensioner.

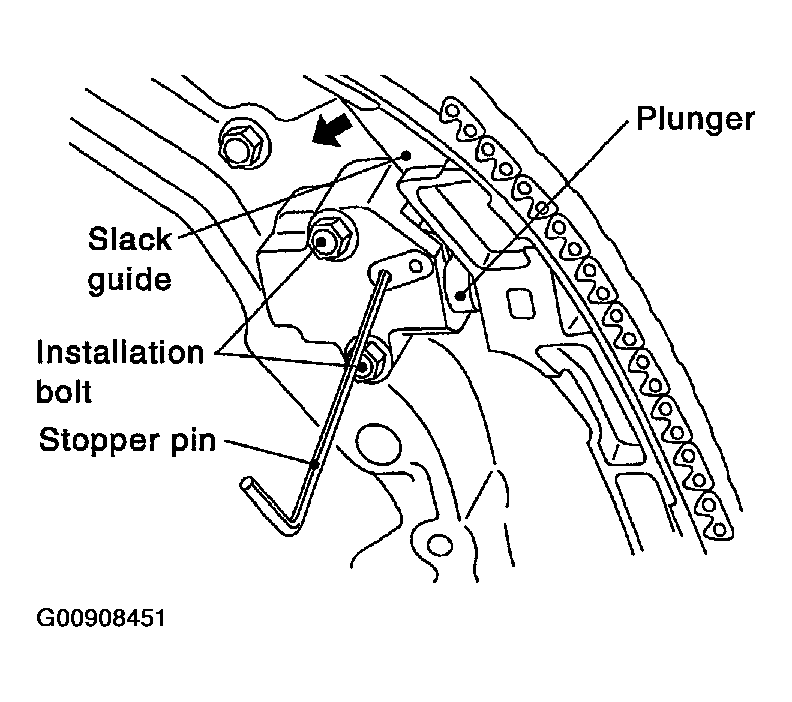

      Fig 7: View Of Tensioner
      G00908451Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Remove internal chain guide, tension guide and slack guide.
    NOTE: Tension guide can be removed after removing timing chain.

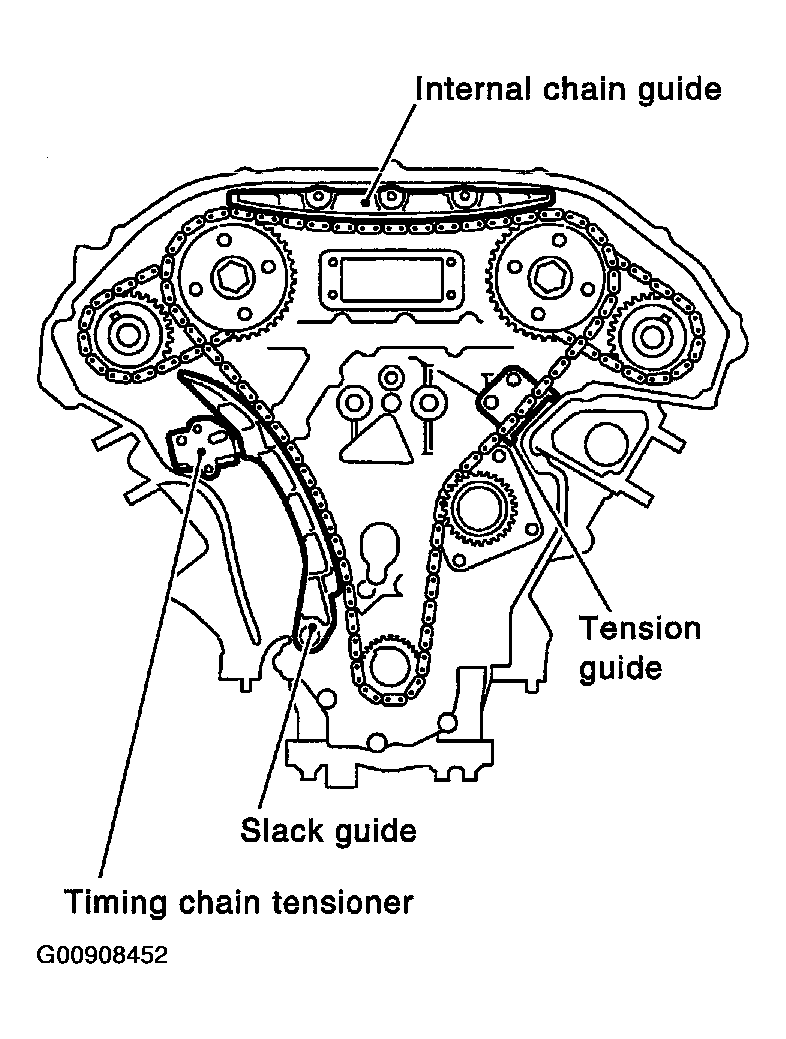

    Fig 8: View Of Tension Guides
    G00908452Courtesy of NISSAN MOTOR CO., U.S.A.
  21. Remove timing chain (primary) and crankshaft sprocket.
    CAUTION: After removing timing chain (primary), do not turn crankshaft and camshaft separately, or valves will strike the piston heads.
  22. Remove timing chains (secondary) and camshaft sprockets with the following procedure:
    1. Attach suitable stopper pin to RH and LH timing chain tensioners (secondary).
      NOTE: For removal and installation of timing chain tensioner (secondary), refer to CAMSHAFT  . [Removing camshaft bracket (No. 1) is required.]

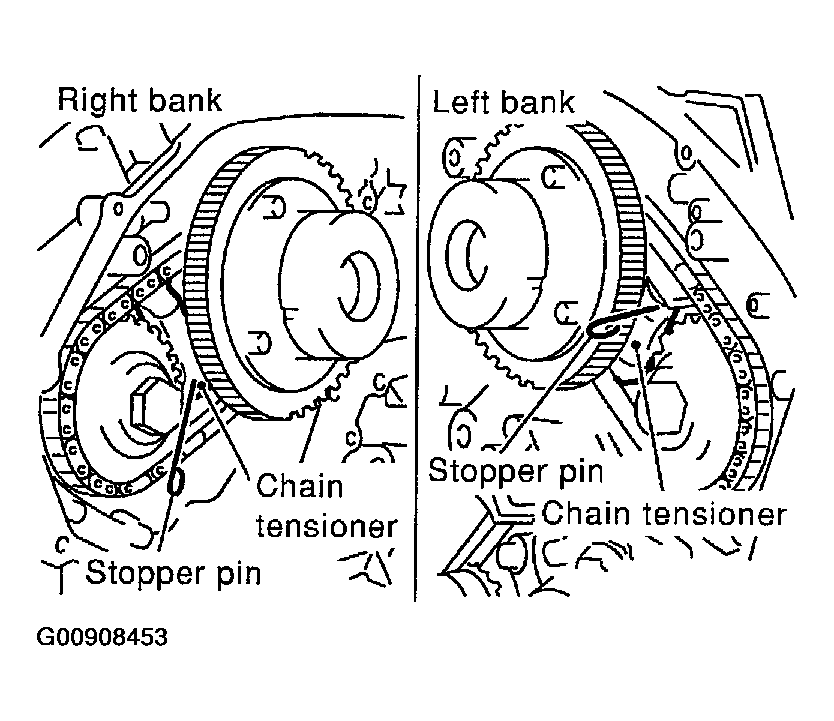

      Fig 9: View Of Left & Right Bank Tensioners
      G00908453Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Remove intake and exhaust camshaft sprocket bolts.
      • Apply paint to timing chain and camshaft sprockets for alignment during installation.
      • Secure the hexagonal portion of camshaft using wrench to loosen mounting bolts.

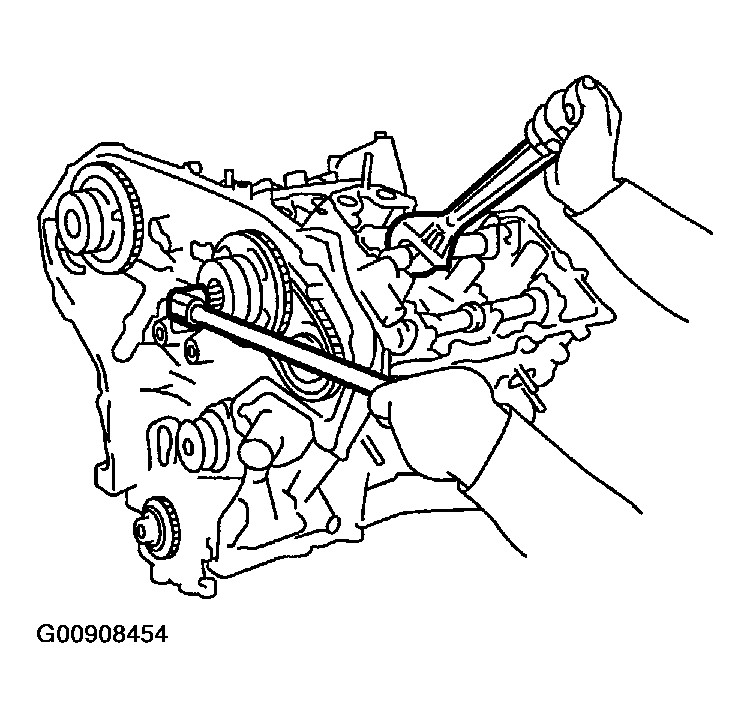

        Fig 10: Removing & Installing Camshaft Bolt
        G00908454Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Remove timing chain (secondary) together with camshaft sprockets.
      • Turn camshaft slightly to secure slackness of timing chain on chain tensioner side.
      • Insert 0.5 mm (0.020 in) thick metal or resin plate between timing chain and chain tensioner plunger (guide). Remove timing chain (secondary) together with camshaft sprockets with timing chain loose from guide groove.
        CAUTION: Be careful of plunger coming-off when removing timing chain. This is because plunger of chain tensioner moves during operation, leading to coming-off of fixed stopper pin.
        NOTE: Camshaft sprocket (INT) is two-for-one structure of primary and secondary sprockets.

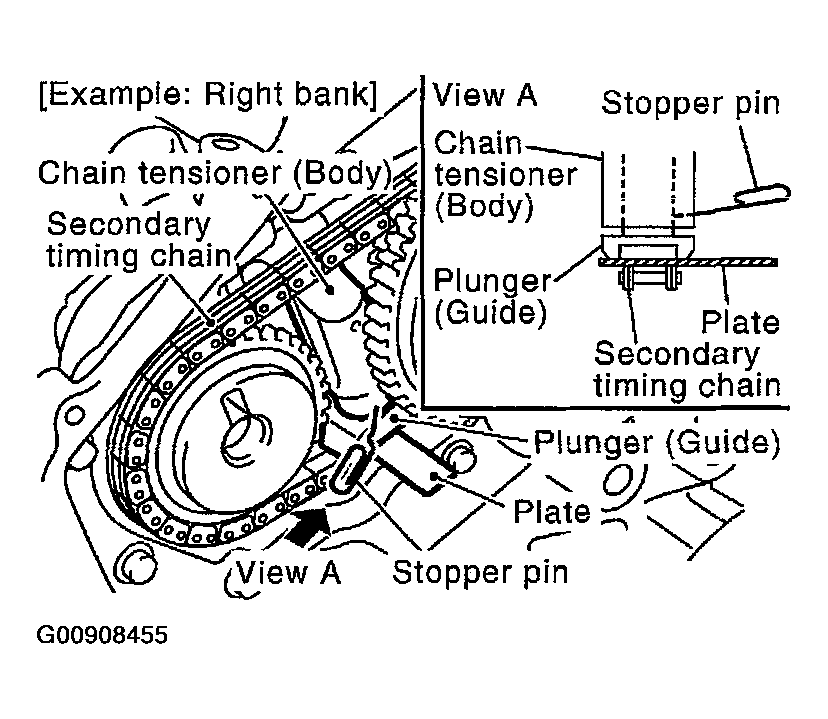

        Fig 11: Example Of Right Bank Stopper Pin & Plate Placement
        G00908455Courtesy of NISSAN MOTOR CO., U.S.A.
      • When handling camshaft sprocket (INT), be careful of the following:
        CAUTION:
        • Handle carefully to avoid any shock to camshaft sprocket.
        • Do not disassemble. (Never loosen bolts "A" and "B" as shown).

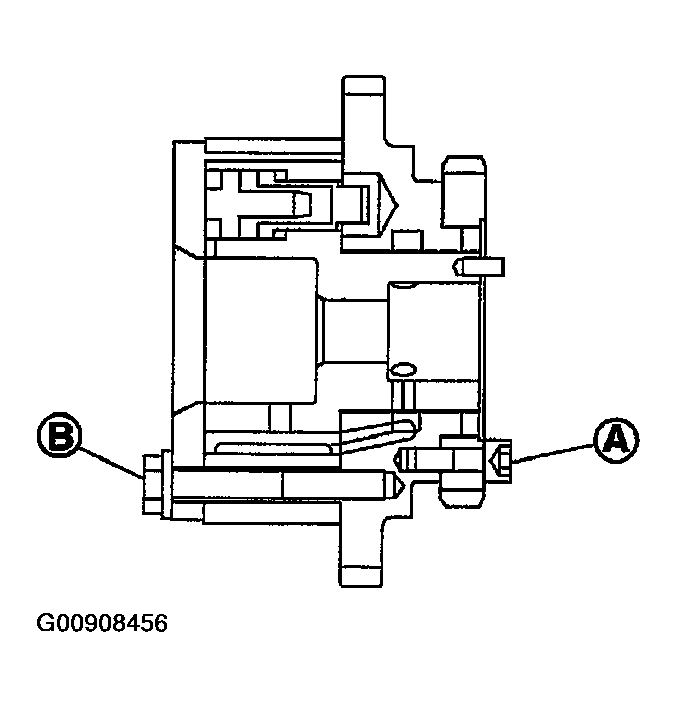

          Fig 12: Locating Bolts "A" And "B"
          G00908456Courtesy of NISSAN MOTOR CO., U.S.A.
  23. Remove rear timing chain case with the following procedure:
    1. Loosen and remove mounting bolts in reverse order as shown in the figure.
    2. Cut sealant using seal cutter [SST: KV10111100 (J37228)] or equivalent tool and remove rear timing chain case.

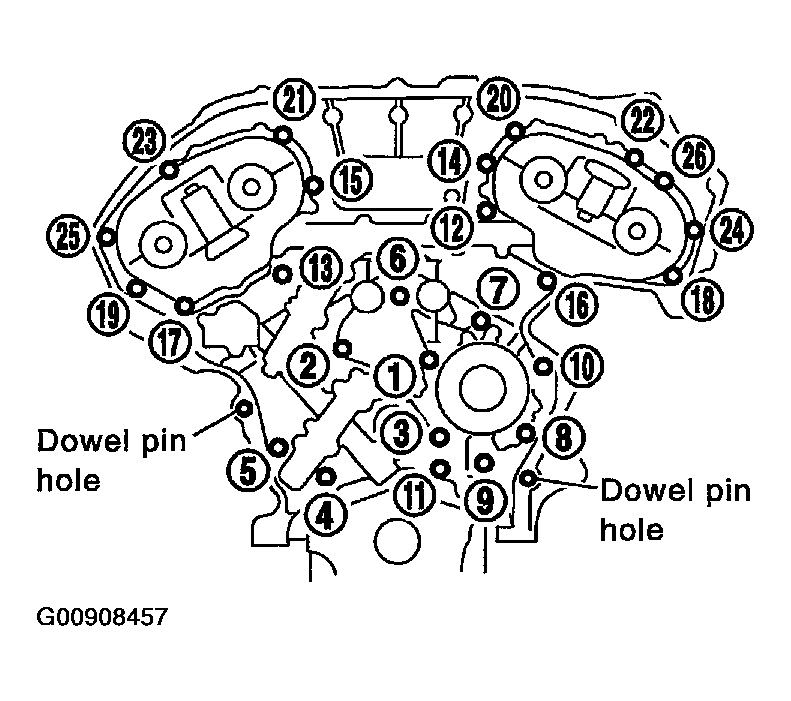

      Fig 13: View Of Rear Timing Chain Case Torque Sequence
      G00908457Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION:
      • Do not remove plate metal cover of oil passage.
      • After removal, handle rear timing chain case carefully so it does not tilt, cant, or warp under a load.

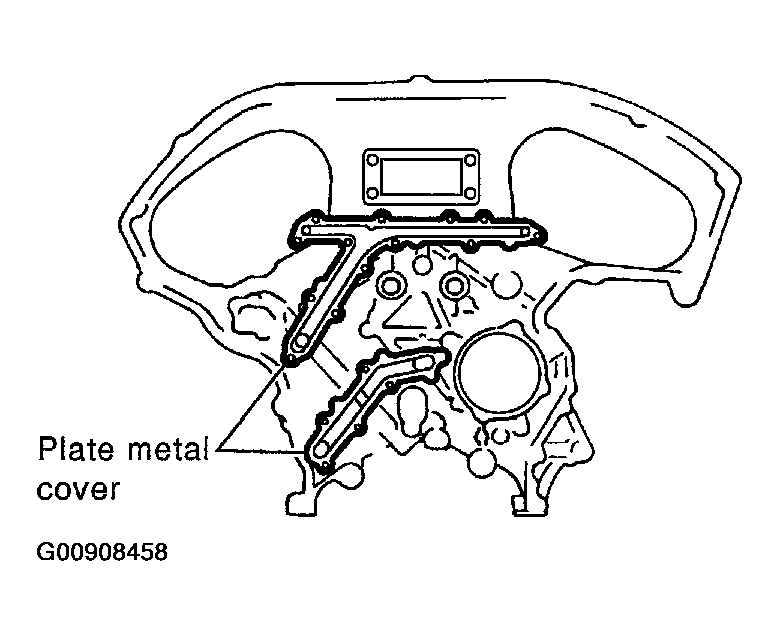

        Fig 14: View Of Plate Metal Cover
        G00908458Courtesy of NISSAN MOTOR CO., U.S.A.
  24. Remove timing chain tensioners (secondary) from cylinder head as follows if necessary.
    1. Remove camshaft brackets (No. 1). Refer to CAMSHAFT  .
    2. Remove timing chain tensioners (secondary) with stopper pin attached.
  25. Use scraper to remove all traces of old liquid gasket from front and rear timing chain cases, and opposite mating surfaces.
    • Remove old liquid gasket from bolt hole and thread.

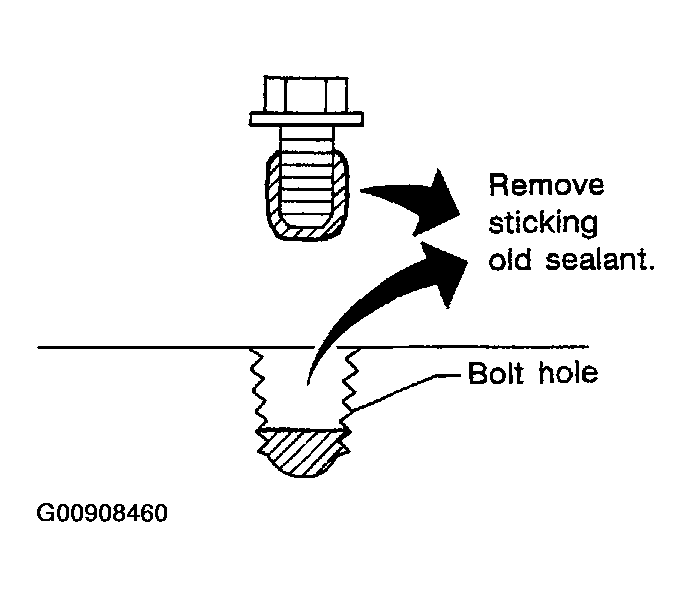

      Fig 15: View Of Old Liquid Gasket To Remove
      G00908460Courtesy of NISSAN MOTOR CO., U.S.A.
  26. Use scraper to remove all traces of old liquid gasket from water pump cover, chain tensioner cover and intake valve timing control covers.
