Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano and 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel pressure. Refer to FUEL PRESSURE RELEASE .
  2. Remove intake manifold collector (upper and lower). Refer to INTAKE MANIFOLD COLLECTOR  .
  3. Remove fuel tube and fuel injector assembly. Refer to FUEL INJECTOR AND FUEL TUBE  .
  4. Loosen bolts and nuts in reverse order as shown in the figure to remove intake manifold assembly with power tool.

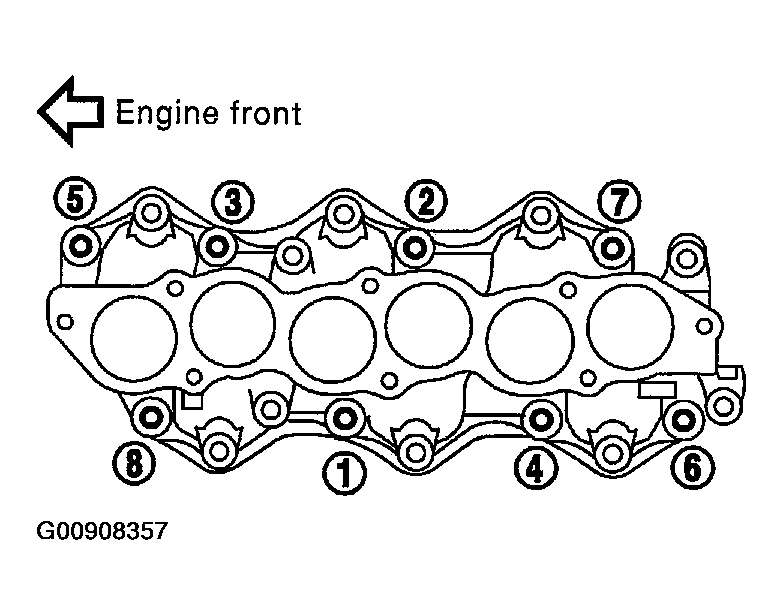

    Fig 1: View Of Intake Manifold Assembly Torque Specification
    G00908357Courtesy of NISSAN MOTOR CO., U.S.A.
