Section 2052 (Lighting System): Illumination: Schematic

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

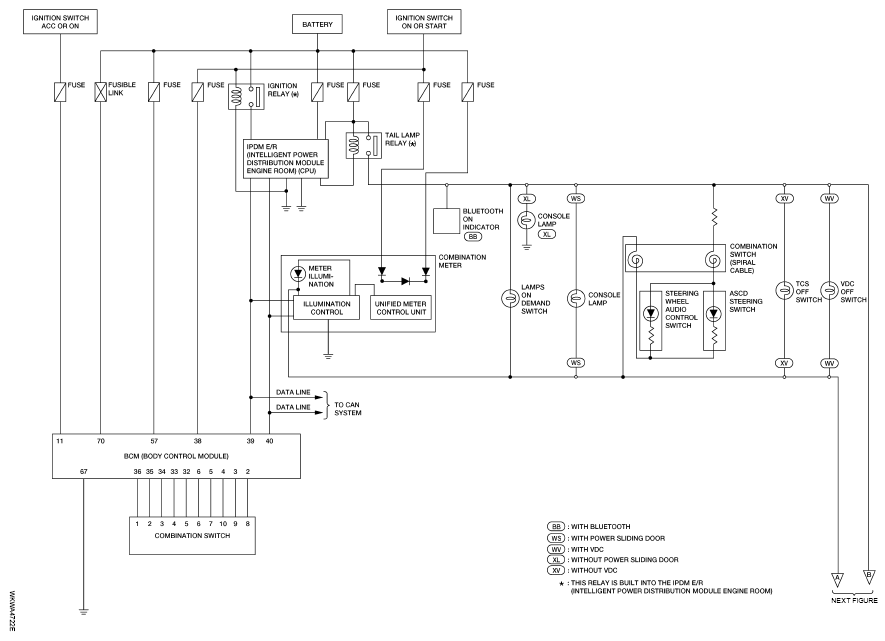

Fig 1: Illumination Schematic Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

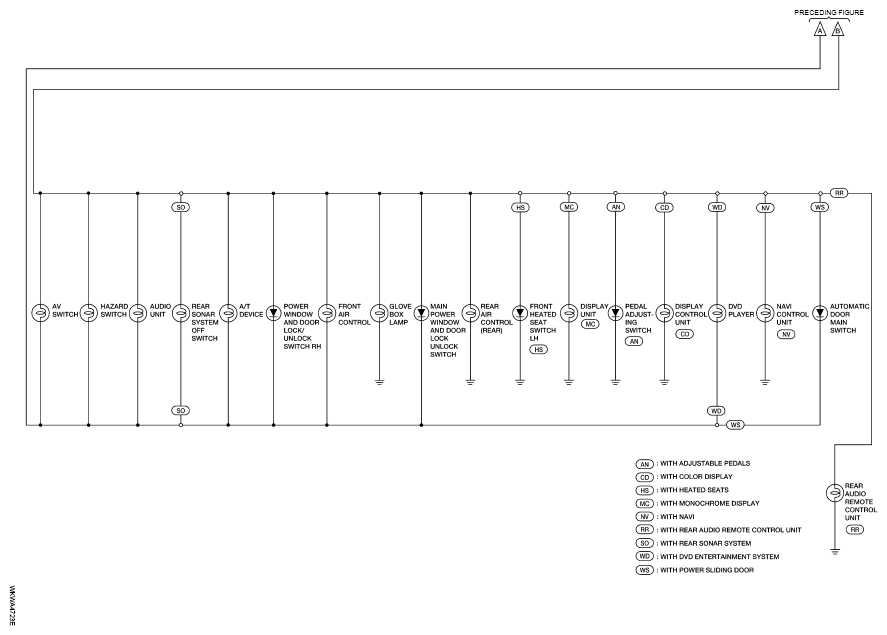

Fig 2: Illumination Schematic Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
