Removal and Installation

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

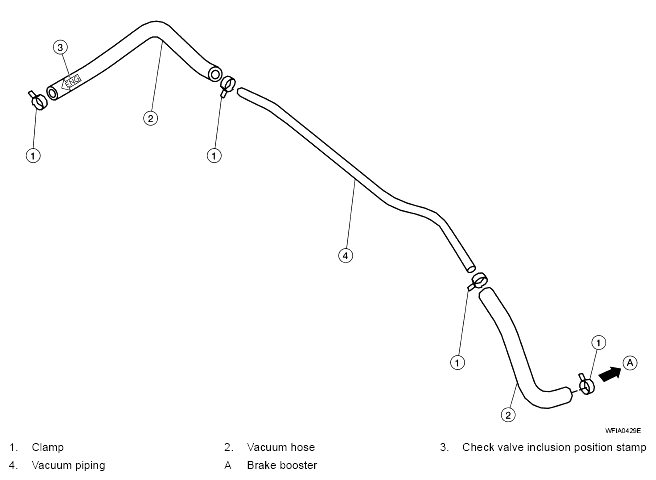

Fig 1: Identifying Vacuum Lines Components

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Because vacuum hose contains a check valve, it must be installed in the correct orientation. Refer to the stamp or label to confirm correct installation. The brake booster will not operate normally if the hose is installed in the wrong direction.
Insert the vacuum hose for at least 24 mm (0.94 in).
Never use lubricating oil during assembly.

Fig 2: Inserting Vacuum Hose
Courtesy of NISSAN MOTOR CO., U.S.A.
