Removal and Installation: Notes

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

For Installation, go to INSTALLATION .

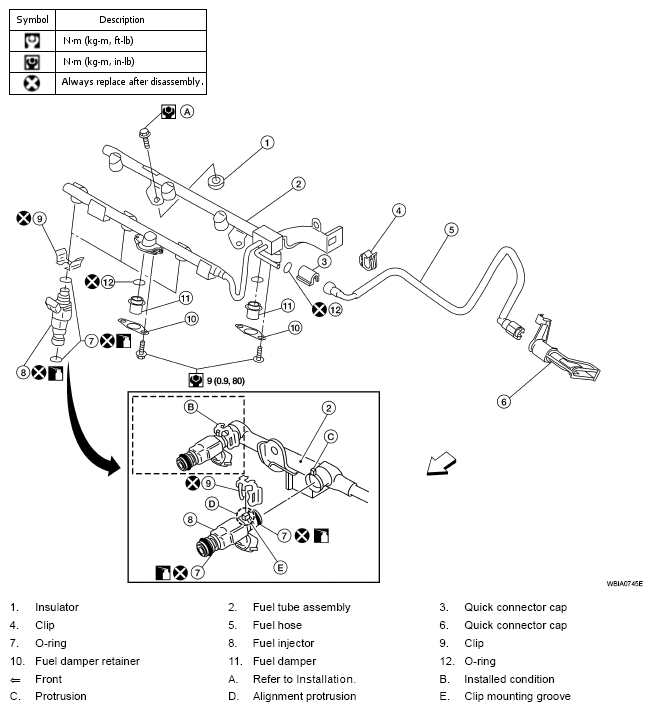

Fig 1: Fuel Injector And Fuel Tube Replacement Components With Torque Specifications
G04904632Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Apply new engine oil when installing the parts as specified to do so.
  • Do not remove or disassemble parts unless instructed as shown.
