Parking Brake Cable: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

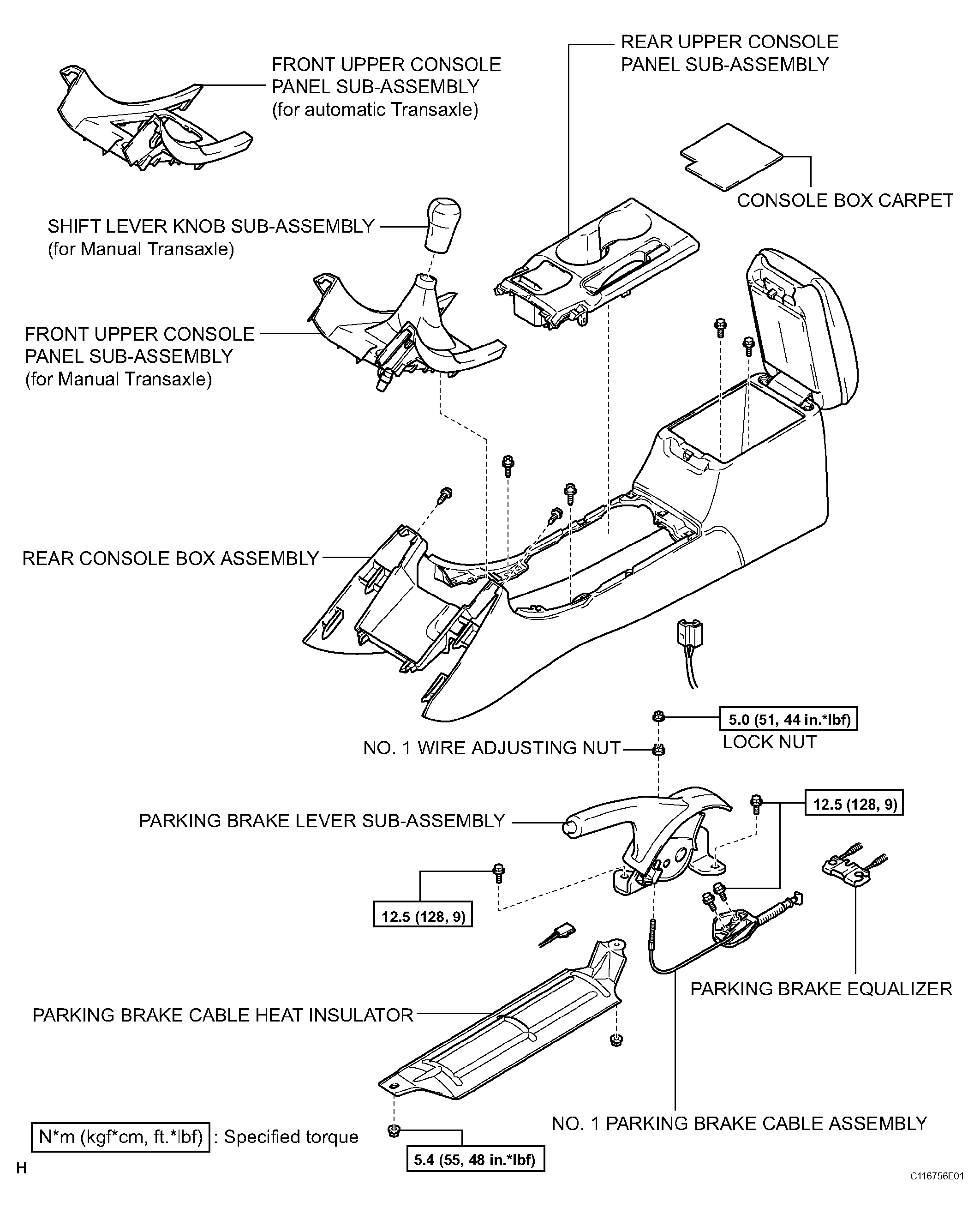

Fig 1: Identifying Parking Brake Cable Components (1 Of 2)
G04223296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

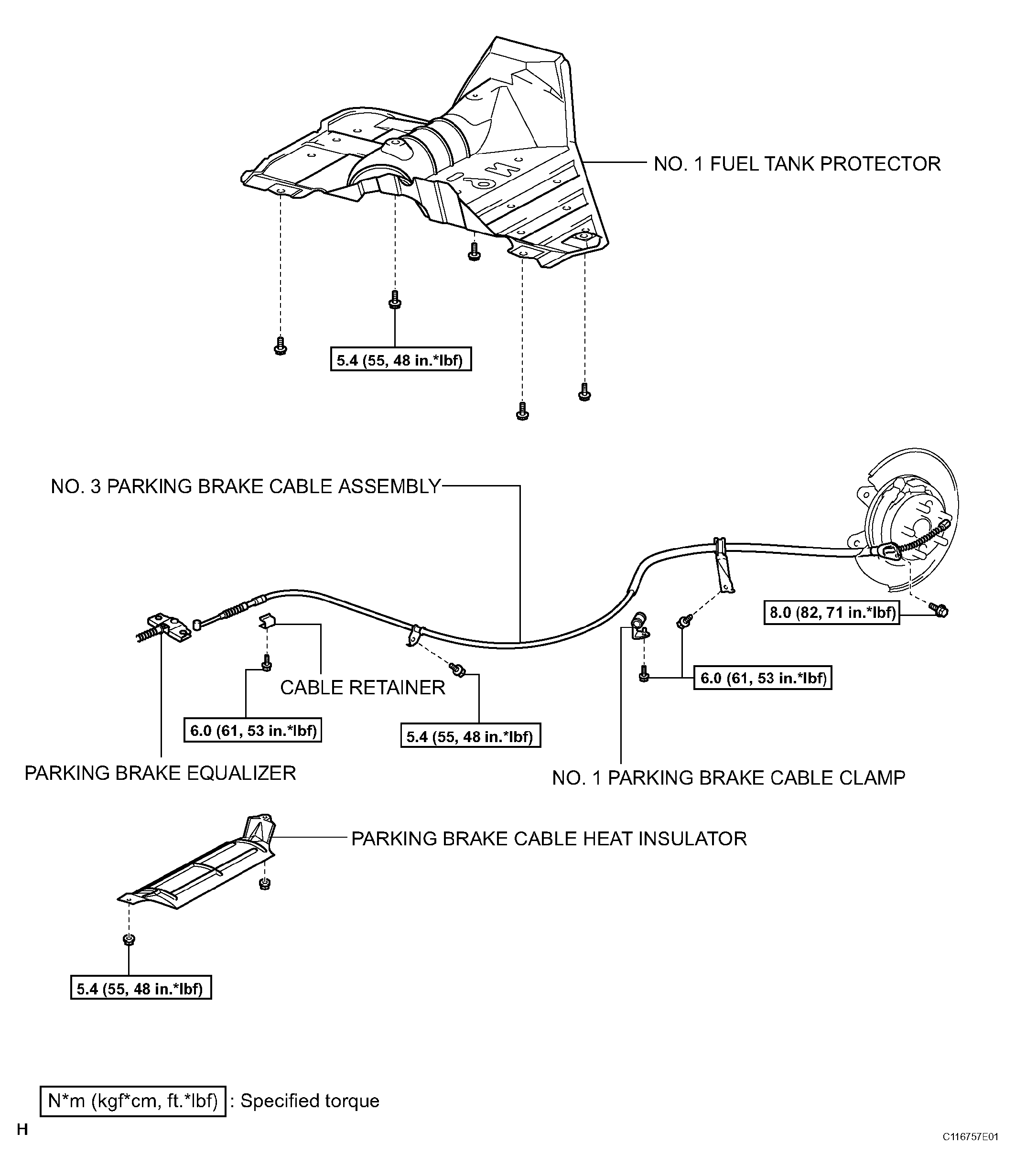

Fig 2: Identifying Parking Brake Cable Components (2 Of 2)
G04223297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
