Parking Brake Assembly: Reassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

APPLY HIGH TEMPERATURE GREASE

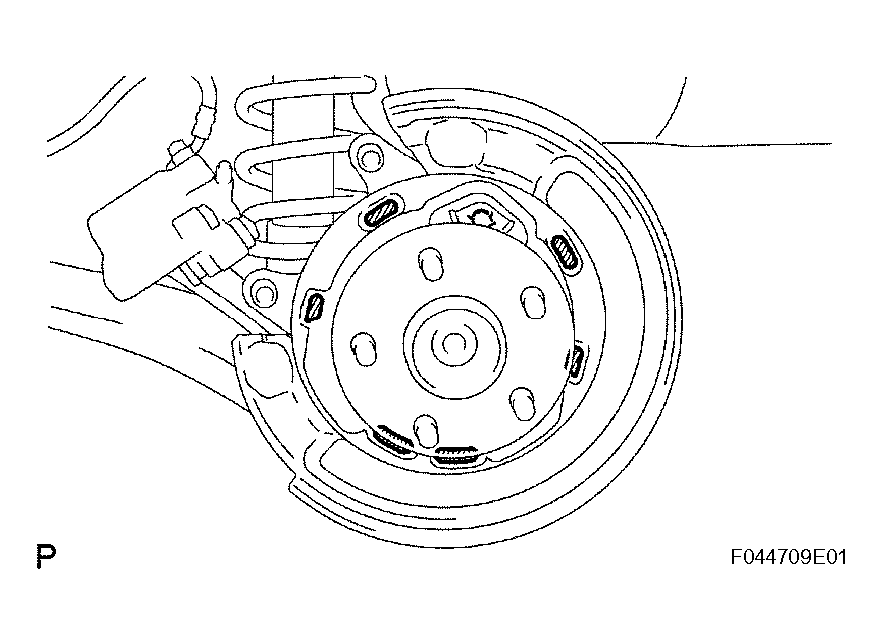

1. Apply high temperature grease to the shoe attaching surface of the backing plate.
Fig 1: Applying High Temperature Grease To Shoe Attaching Surface Of Backing Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE SHOE LEVER LH

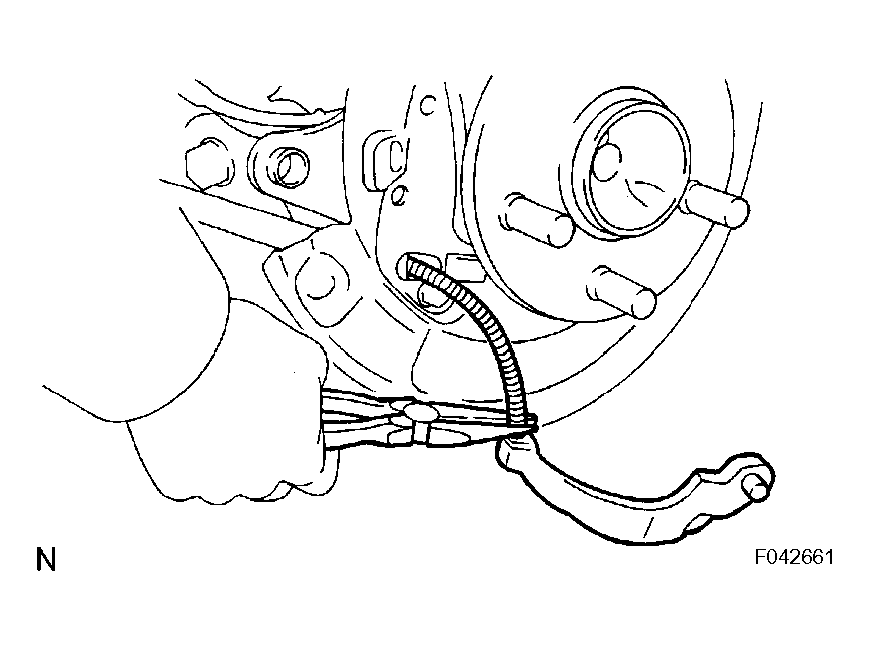

1. Using needle-nose pliers, connect the No. 3 parking brake cable to the parking brake shoe lever.
Fig 2: Connecting No. 3 Parking Brake Cable To Parking Brake Shoe Lever
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE SHOE ASSEMBLY
1. Apply high temperature grease to the contact part of the No. 2 parking brake shoe and parking brake shoe lever.

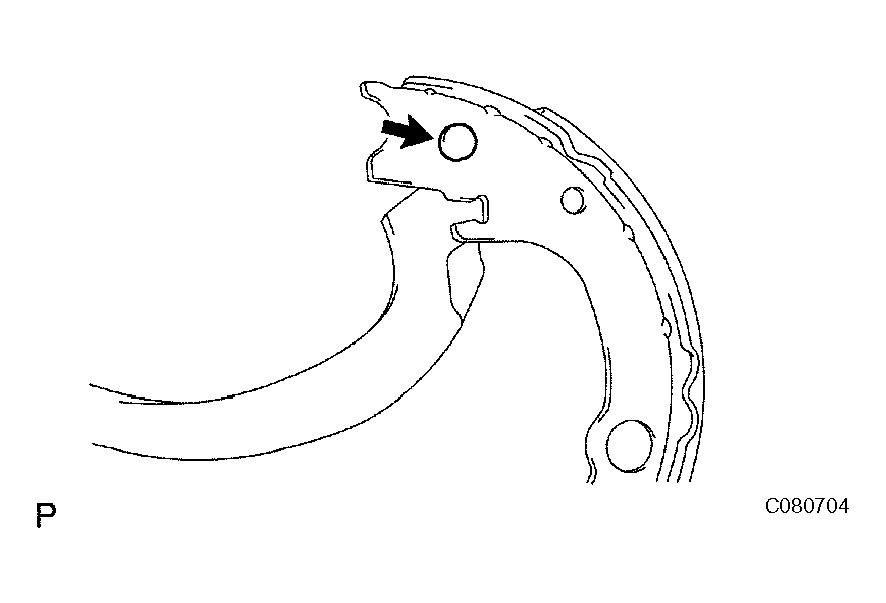

  Fig 3: Installing No. 2 Parking Brake Shoe And Parking Brake Shoe Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

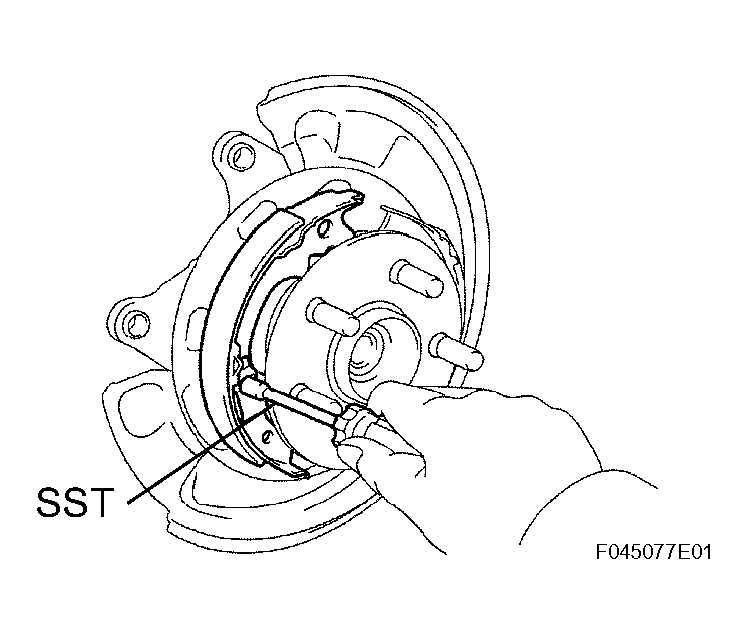

2. Using SST, install the No. 2 parking brake shoe with the parking brake shoe hold-down compression spring and parking brake shoe hold-down spring.
  SST 09718-00010

  Fig 4: Installing No. 2 Parking Brake Shoe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

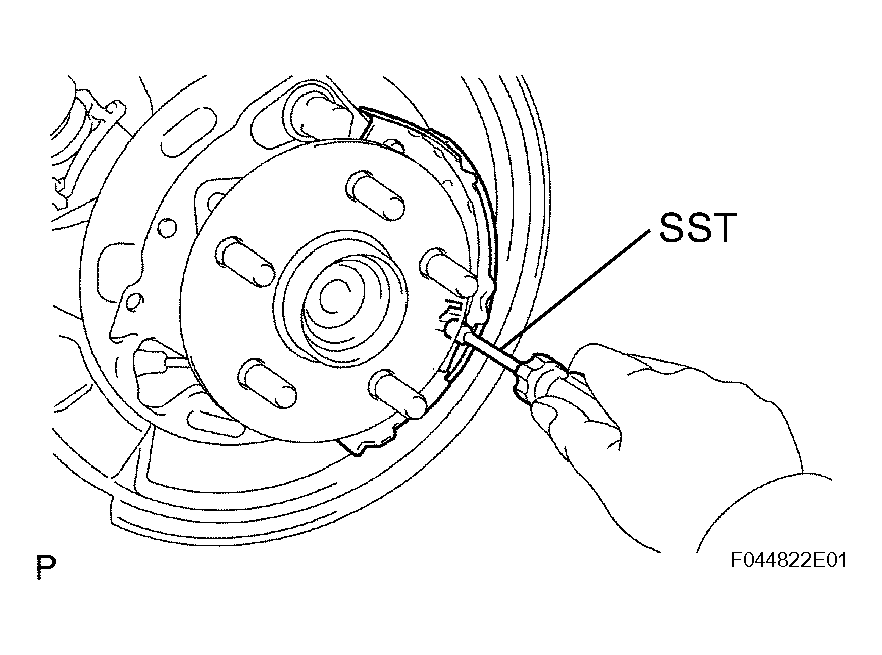

3. Using SST, install the No. 1 parking brake shoe with the parking brake shoe hold-down compression spring and parking brake shoe hold-down spring pin.
  SST 09718-00010

  Fig 5: Installing No. 1 Parking Brake Shoe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET

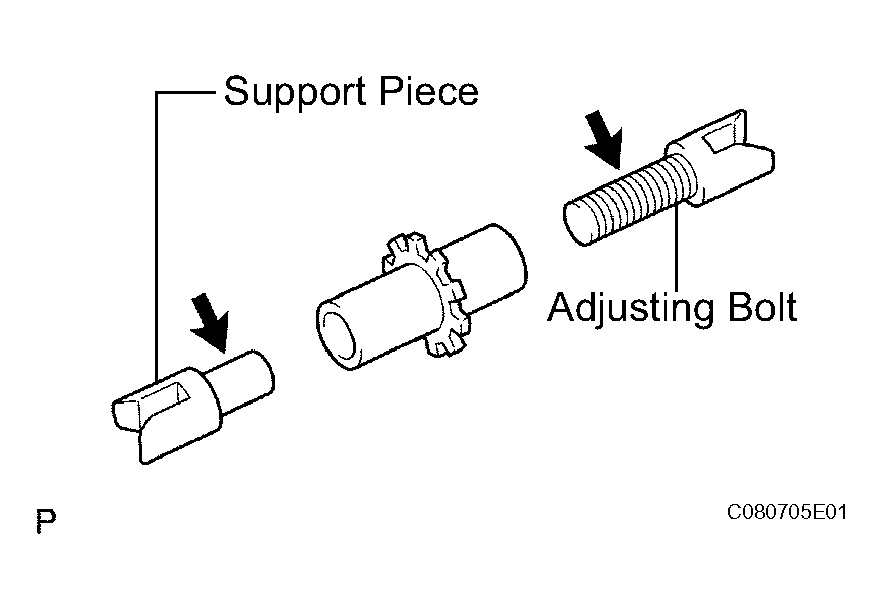

1. Apply high temperature grease to the adjusting bolt and support piece.
2. Install the adjusting screw set.

  Fig 6: Installing Adjusting Screw Set
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

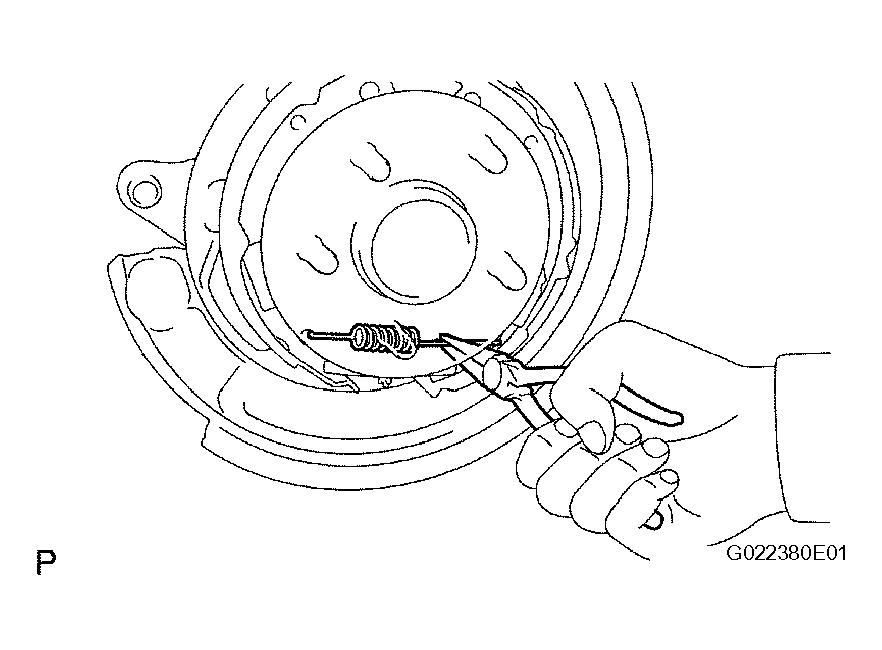

3. Using needle-nose pliers, install the anchor side parking brake shoe return tension spring.
Fig 7: Installing Anchor Side Parking Brake Shoe Return Tension Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE SHOE STRUT LH

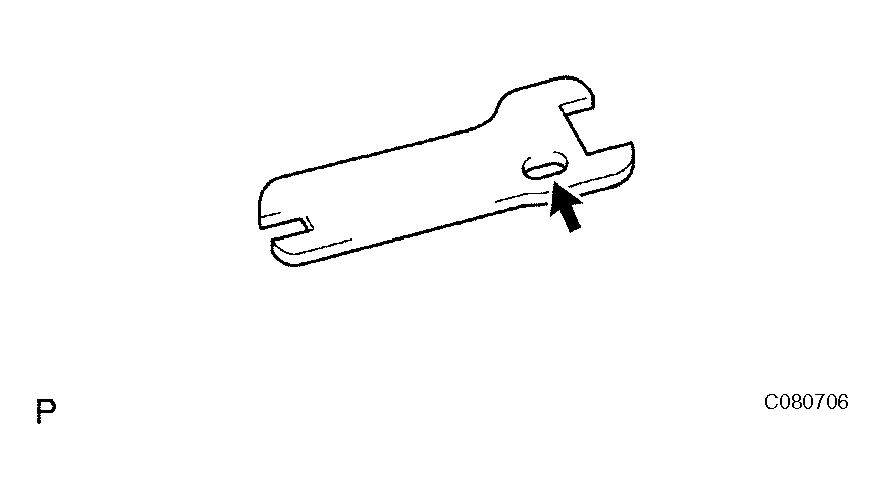

1. Apply high temperature grease to the contact part of the parking brake shoe strut and parking brake shoe return tension spring.
2. Install the parking brake shoe strut.
3. Using needle-nose pliers, install the 2 parking brake shoe return tension springs on the upper side of the shoe.
  HINT:

  Fit the parking brake shoe return tension springs securely into the grooves of the parking brake shoe strut.

  Fig 8: Installing Parking Brake Shoe Strut LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK PARKING BRAKE INSTALLATION
1. Check that each part is installed properly.
NOTE: There should be no oil or grease on the friction surface of the shoe lining and disc.

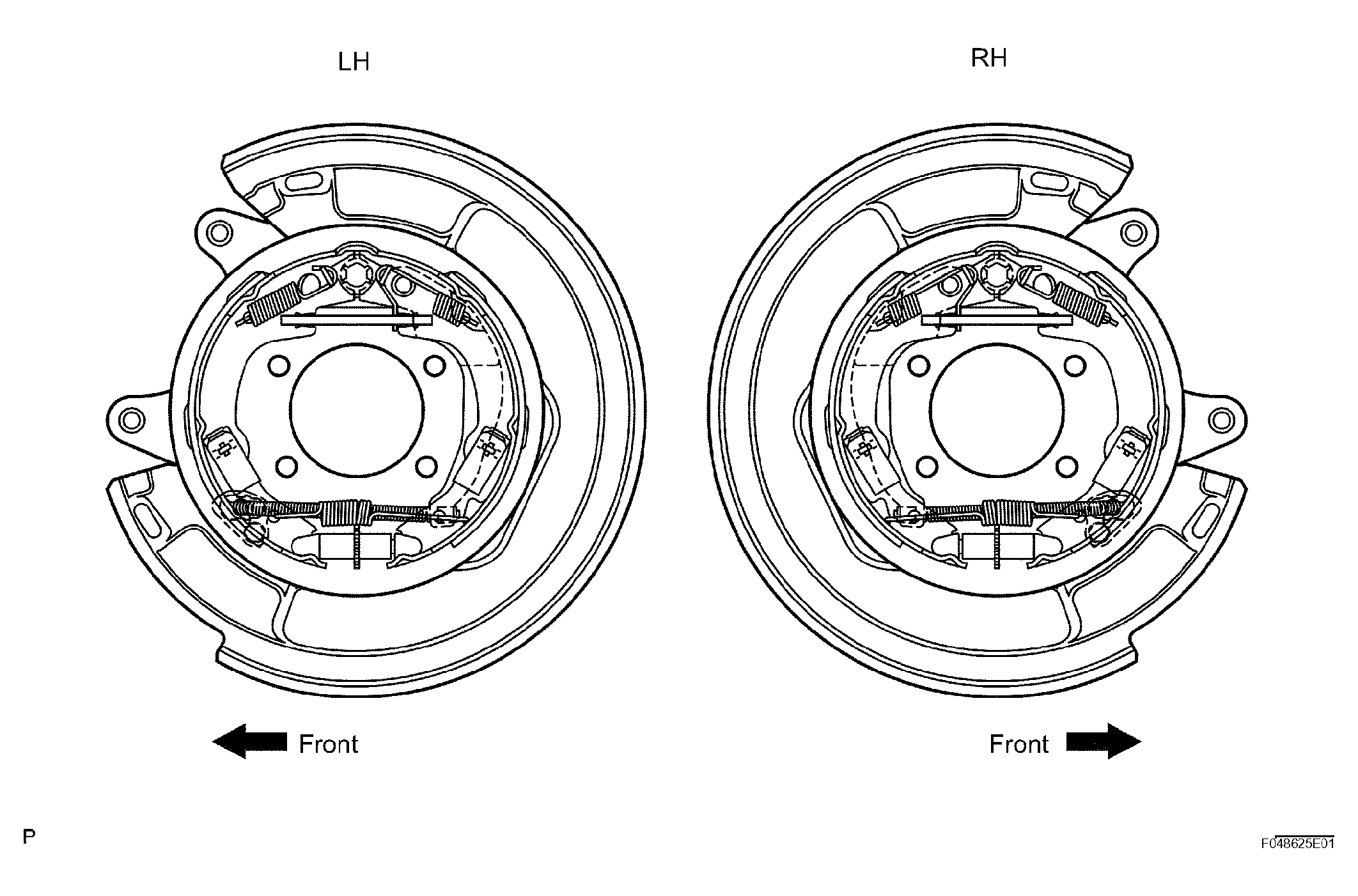

Fig 9: Checking Parking Brake RH And LH Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
