Parking Brake Assembly: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. ADJUST PARKING BRAKE SHOE CLEARANCE
   1. Temporarily install the hub nuts.
   2. Remove the hole plug, and turn the adjuster to expand the shoes until the disc lock.
   3. Contract the shoe adjuster until the disc can rotate smoothly.

      OK:

      Return 8 notches

   4. Check that there is no brake drag.
   5. Install the hole plug.
   6. Remove the hub nuts.

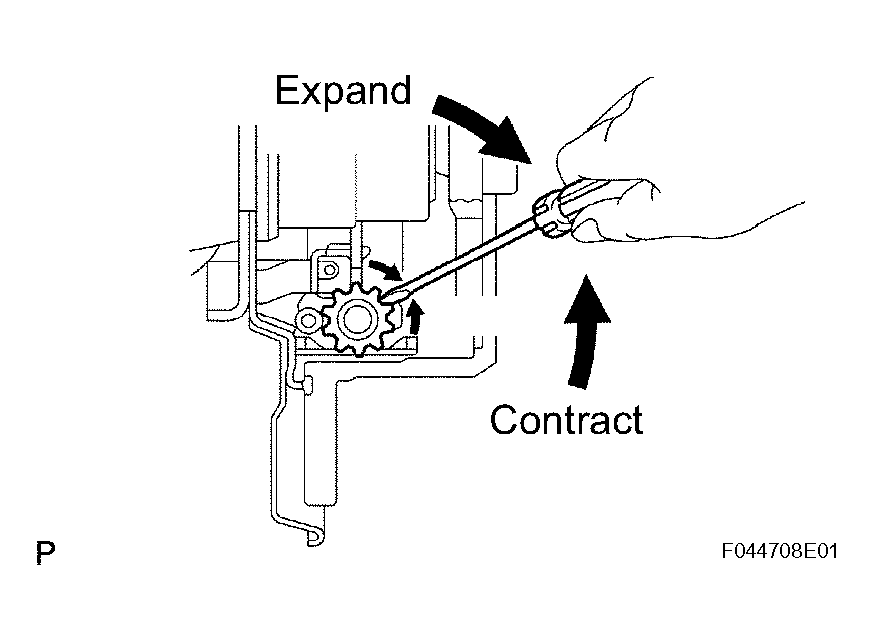

   Fig 1: Adjusting Parking Brake Shoe Clearance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL REAR DISC BRAKE CYLINDER MOUNTING LH WITH REAR DISC BRAKE CYLINDER ASSEMBLY LH
   1. Install the brake cylinder mounting with disc brake cylinder (See INSTALLATION ).
3. INSTALL REAR WHEEL

   Torque: 103 N.m (1,050 kgf. cm, 76 ft. lbf)

4. SETTLING PARKING BRAKE SHOES AND DISC
   1. Drive the vehicle at about 50 km/h (31 mph) on a safe, level and dry road.
   2. With the parking brake release button pushed in, pull the lever with 98 N (10 kgf, 22 lbf) of force.
   3. Drive the vehicle for about 400 m (0.25 mile) in this condition.
   4. Repeat this procedures 2 or 3 times.
5. CHECK PARKING BRAKE LEVER TRAVEL (See  PROBLEM SYMPTOMS TABLE   )
6. ADJUST PARKING BRAKE LEVER TRAVEL (See  ADJUSTMENT   )
