Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower cover LH. Refer to "LOWER INSTRUMENT PANEL LH ".
  2. Remove upper and lower steering column cover. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  3. Disconnect the lighting and turn signal switch connector.
  4. While pressing tabs, pull lighting and turn signal switch toward driver door and release from the steering column.

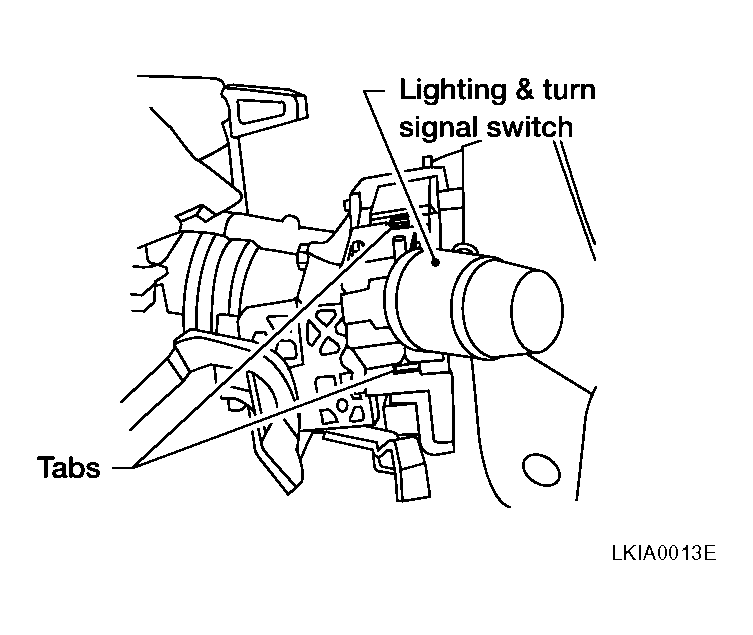

Fig 1: Disconnecting Lighting And Turn Signal Switch Connector
G04206175Courtesy of NISSAN MOTOR CO., U.S.A.
