Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove the spare tire.
For the RH side, remove the tailpipe. Refer to "EXHAUST SYSTEM ".
Support the rear final drive assembly with a suitable jack to relieve the tension from the rear leaf spring.
- The axle weight should be supported, but there should be no compression in the rear leaf spring.
Remove the shock absorber lower nut and bolt using power tool.

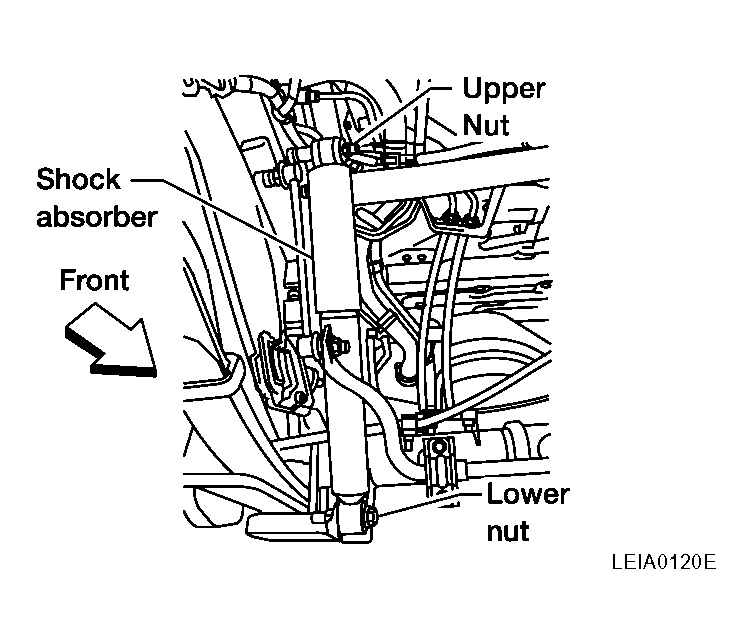

Fig 1: Removing Shock Absorber Lower Nut And Bolt Using Power Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the four rear spring clip U-bolt nuts using power tool, then remove the rear spring pad.

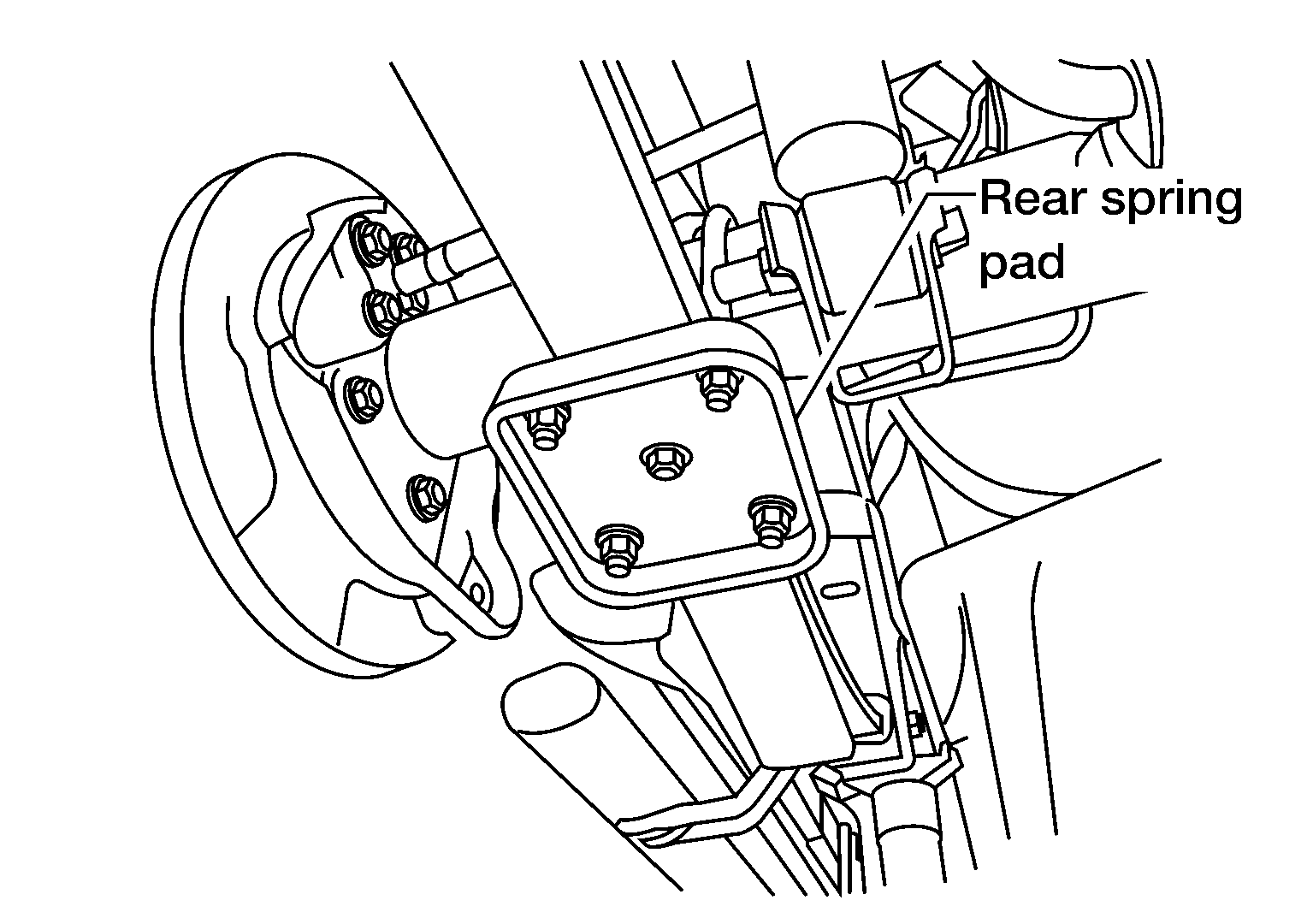

Fig 2: Removing Rear Spring Pad
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear spring shackle and bushings using power tool.

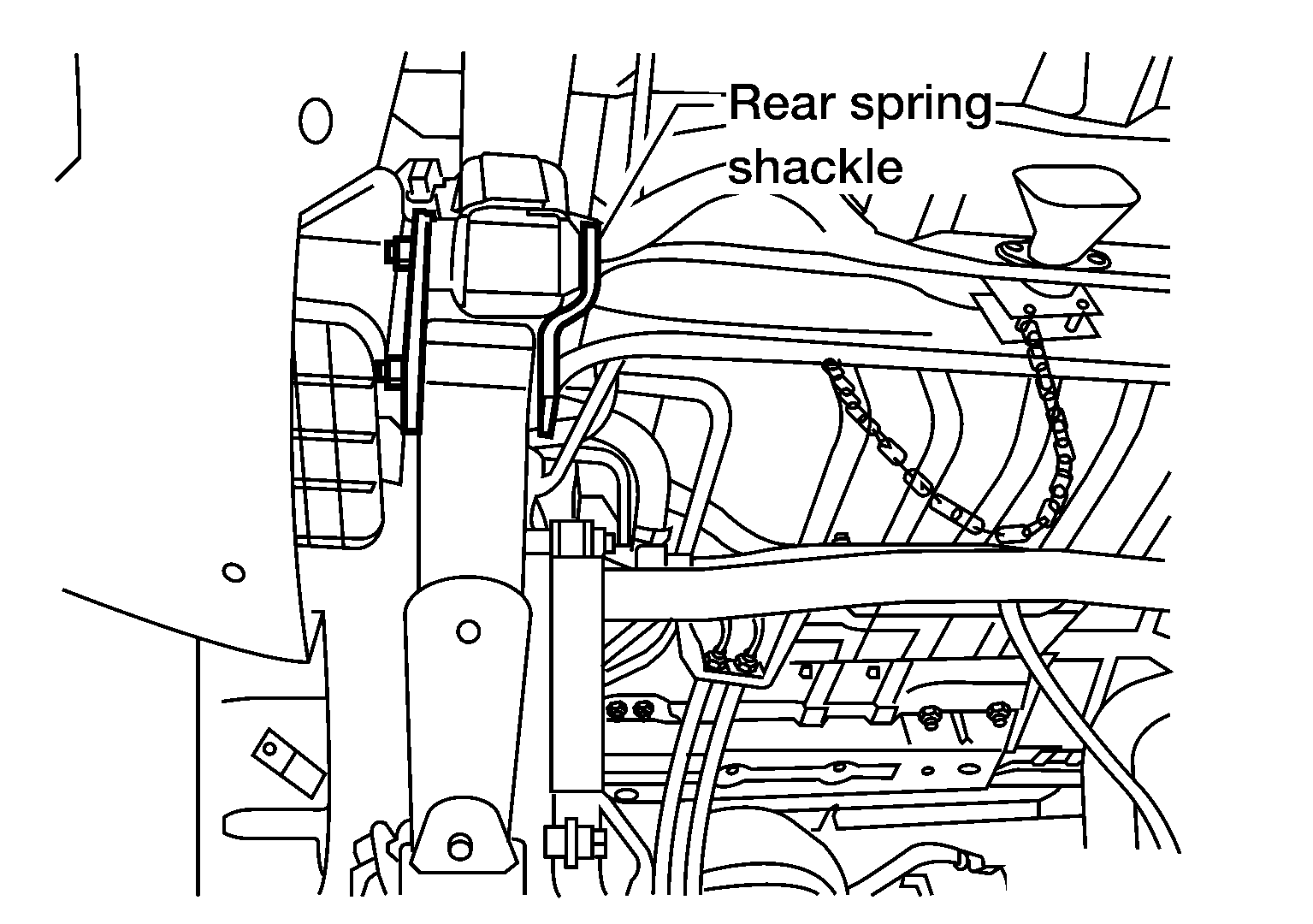

Fig 3: Removing Rear Spring Shackle And Bushings Using Power Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear leaf spring front nut and bolt using power tool.
Remove the rear leaf spring.

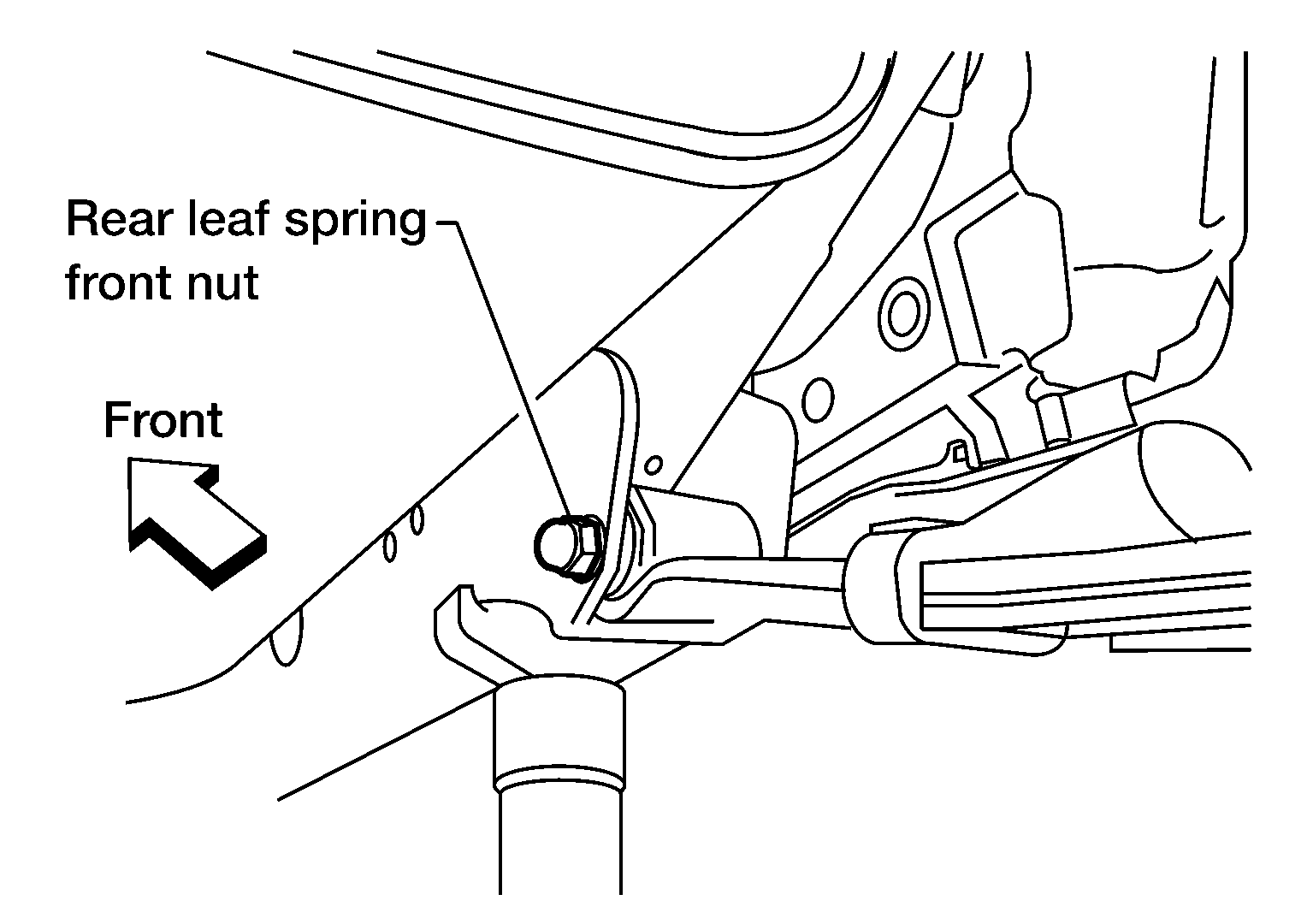

Fig 4: Removing Rear Leaf Spring Front Nut And Bolt Using Power Tool

Courtesy of NISSAN MOTOR CO., U.S.A.
