Instrument Panel: Removal

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

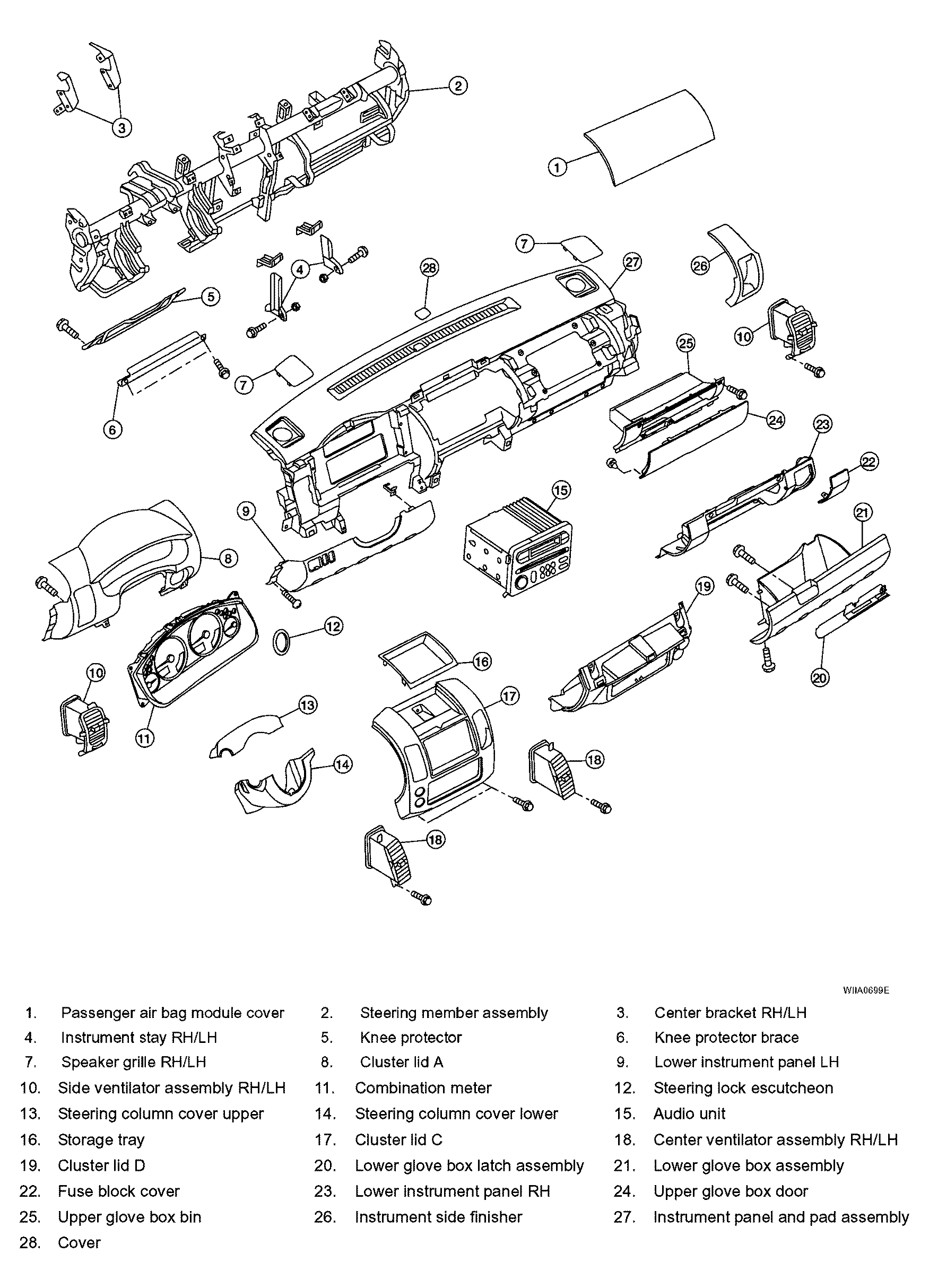

Fig 1: Removing Instrument Panel Components
G04205785Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Before servicing, turn the ignition switch off, disconnect both battery cables and wait at lease 3 minutes.
  1. Disconnect battery negative terminal.
  2. Disconnect battery positive terminal.
  3. Remove the center console. Refer to "CENTER CONSOLE ".
  4. Remove the combination meter. Refer to "COMBINATION METER ".
  5. Remove front pillar upper finisher. Refer to "FRONT PILLAR UPPER FINISHER ".
  6. Remove audio unit. Refer to "AUDIO UNIT ".
  7. Remove cluster lid D. Refer to "CLUSTER LID D ".
  8. Remove the passenger air bag module. Refer to "FRONT PASSENGER AIR BAG MODULE ".
  9. Remove the instrument stay RH/LH bolts.
  10. Remove instrument panel.
