Map Lamp

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small screwdriver into lens hinge gap and remove lens.
  2. Remove bulb.

    Map lamp : 12V - 8W

  3. Installation is the reverse order of removal.

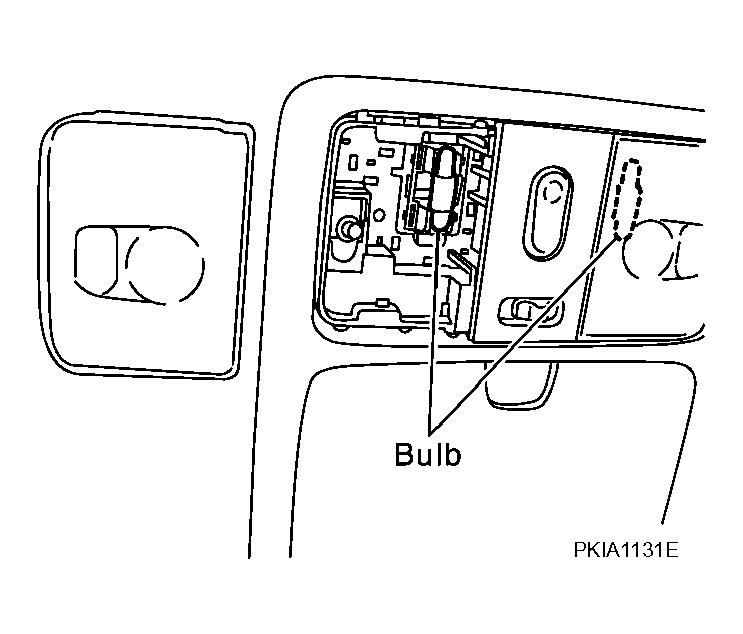

    Fig 1: Identifying Bulb
    G04123828Courtesy of NISSAN MOTOR CO., U.S.A.
