Terminal and Reference Value for Driver Side Seat Control Unit
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
DRIVER SIDE SEAT CONTROL UNIT REFERENCE TABLE
| TERMINAL | WIRE COLOR | ITEM | CONDITION | VOLTAGE (V) (Approx.) | ||
|---|---|---|---|---|---|---|
| 1 | R | BAT power supply | - | Battery voltage | ||
| 2(1) | L | Seatback switch signal | When seatback switch forward | 0 | ||
| Other than above | 5 | |||||

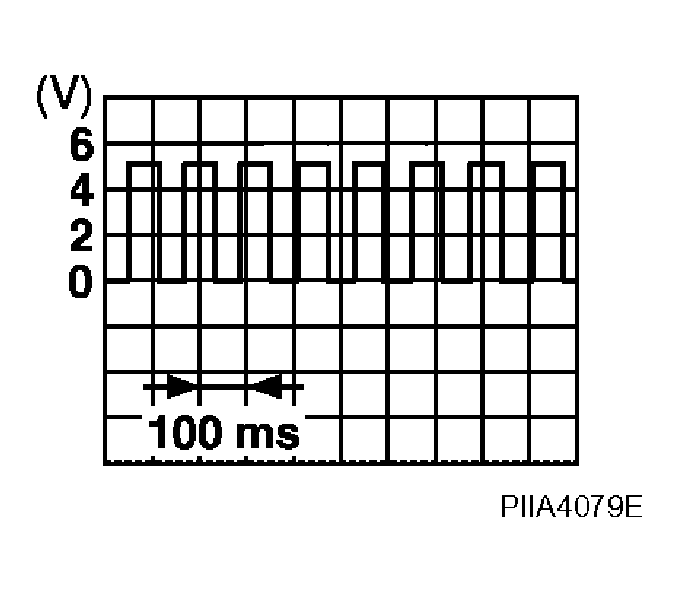

| 3(1) | R | Sliding sensor signal | When sliding motor operates | |||
| 4 | G | Power walk-in switch signal | When power walk-in switch: ON | 0 | ||
| Other than above | 5 | |||||
| 5 | L/Y | A/T shift liver P position signal (with A/T models) | When shift lever P position | 0 | ||
| Other than above | 5 | |||||
| Parking brake signal (with M/T models) | When pull the parking brake | 0 | ||||
| Other than above | 5 | |||||
| 6 | B | Ground | - | 0 | ||
| 7 | Y | Forward sliding switch signal | Forward sliding switch: ON | 0 | ||
| Other than above | Battery voltage | |||||
| 8 | R/W | BAT power supply | - | Battery voltage | ||
| 9 | BR | Backward sliding switch signal | Backward sliding switch: ON | 0 | ||
| Other than above | Battery voltage | |||||
| 10 | W | Sliding motor forward signal | When sliding motor forward operates | Battery voltage | ||
| Other than above | 0 | |||||
| 11 | L | Sliding motor backward signal | When sliding motor backward operates | Battery voltage | ||
| Other than above | 0 | |||||
| 13(1) | OR | Limit switch (forward) | The seat slide front most part | 0 | ||
| Other than above | 5 | |||||
| 14 | GY | Sliding sensor ground | - | 0 | ||

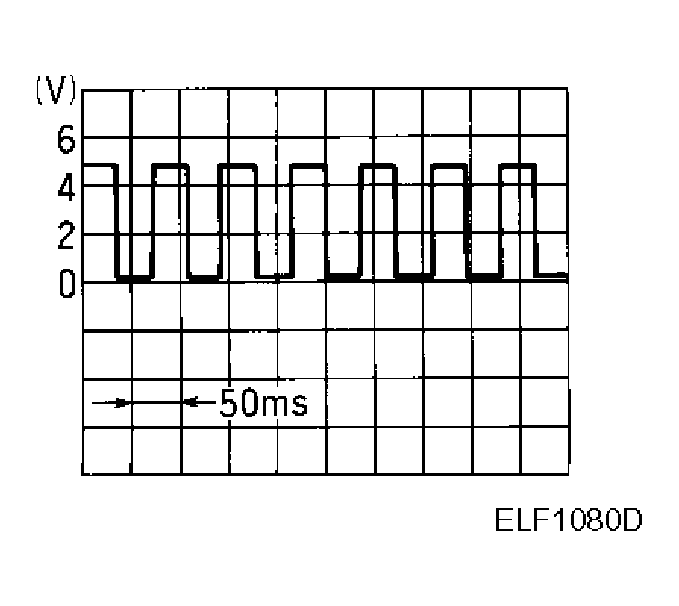

| 15(1) | B/R | Vehicle speed signal (2-pulse) | Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)] | |||
| 16 | G/W | Door switch and seat belt switch signal | When seat belt is unfastened and door is open | 0 | ||
| Other than above | Battery voltage | |||||
|
||||||
