Check Tilt Sensor Circuit

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK TILT SENSOR

With CONSULT-II

With "TILT SEN" on the DATA MONITOR, operate the tilt switch to make sure voltage changes.

DATA MONITOR ITEM REFERENCE TABLE

Monitor item [OPERATION or UNIT]		Contents
TILT SEN	"V"	The tilt position (voltage) judged from the tilt sensor signal is displayed.

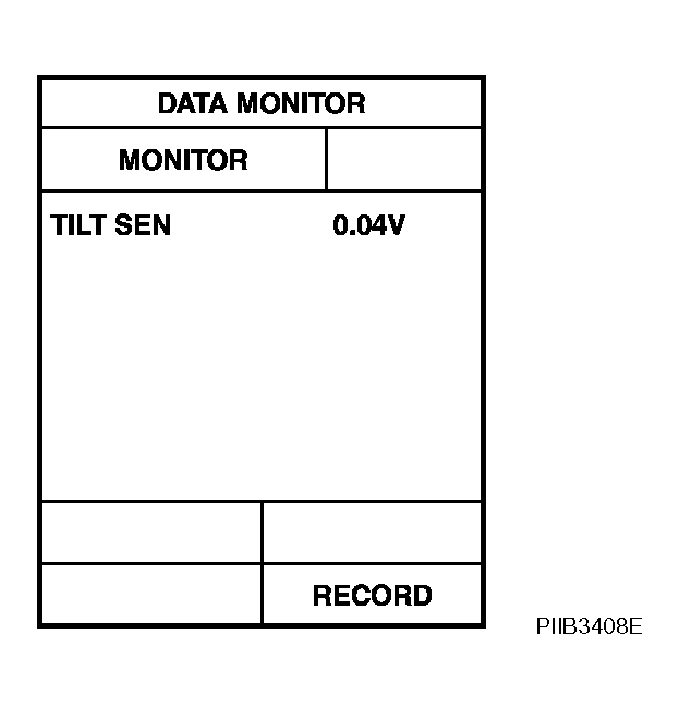

Fig 1: CONSULT-II Display Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch OFF.

Check voltage between automatic drive positioner control unit connector and ground.

VOLTAGE CHECK TABLE

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
M96	7 (OR/L)	Ground	Tilt top position	1
M96	7 (OR/L)	Ground	Tilt bottom position	4

OK or NG

OK: Tilt sensor circuit is OK.

NG: GO TO 2.

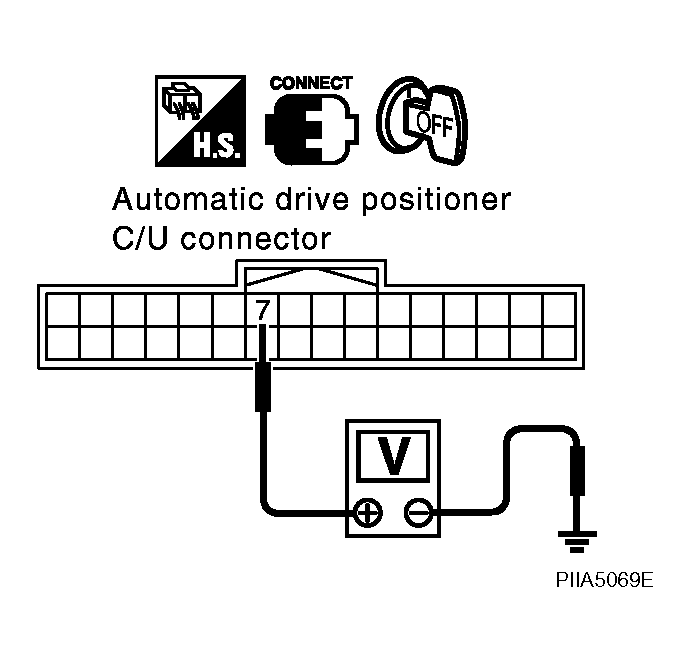

Fig 2: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK HARNESS
1. Disconnect automatic drive positioner control unit connector and tilt sensor and telescopic sensor connector.
2. Check continuity harness between automatic drive positioner control unit connector M96 terminals 7 and tilt sensor and telescopic sensor connector M99 terminals 2.
  7 (OR/L) - 2 (OR/L): Continuity should exist .
3. Automatic drive positioner control unit connector M96 terminals 7 and ground.
  7 (OR/L) - Ground: Continuity should not exist .
OK or NG

OK: Replace tilt sensor and telescopic sensor.

NG: Repair or replace harness between automatic drive positioner control unit and tilt sensor and telescopic sensor.

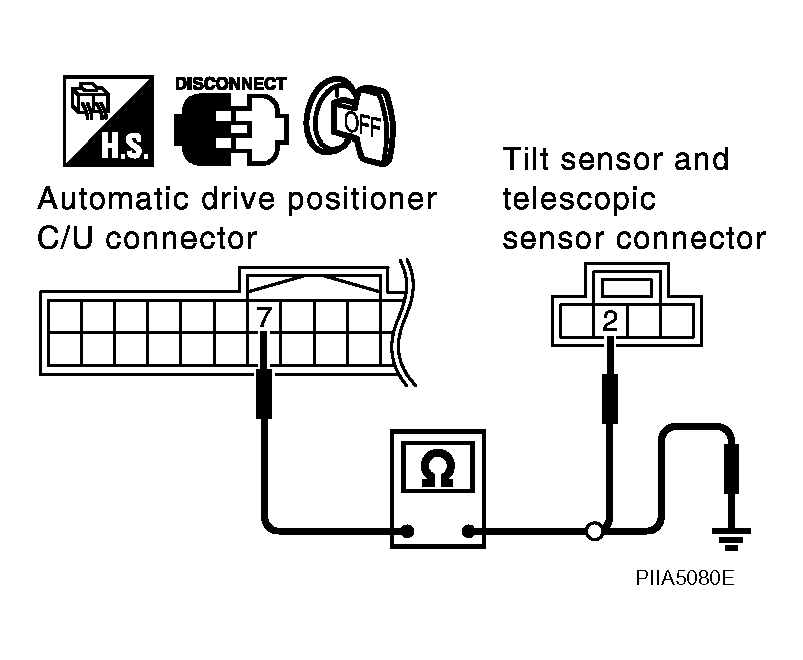

Fig 3: Checking Continuity Between Automatic Drive Positioner Control Unit And Tilt Sensor And Telescopic Sensor Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
