Check Telescopic Switch Circuit

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

With "TELESCO SW-FR, TELESCO SW-RR" on the DATA MONITOR, operate the ADP steering switch to check ON/OFF operation.

DATA MONITOR ITEM REFERENCE TABLE

Monitor item [OPERATION or UNIT]		Contents
TELESCO SW-FR	"ON/OFF"	(ON/OFF) status judged from the telescoping switch (FR) signal is displayed.
TELESCO SW-RR	"ON/OFF"	(ON/OFF) status judged from the telescoping switch (RR) signal is displayed.

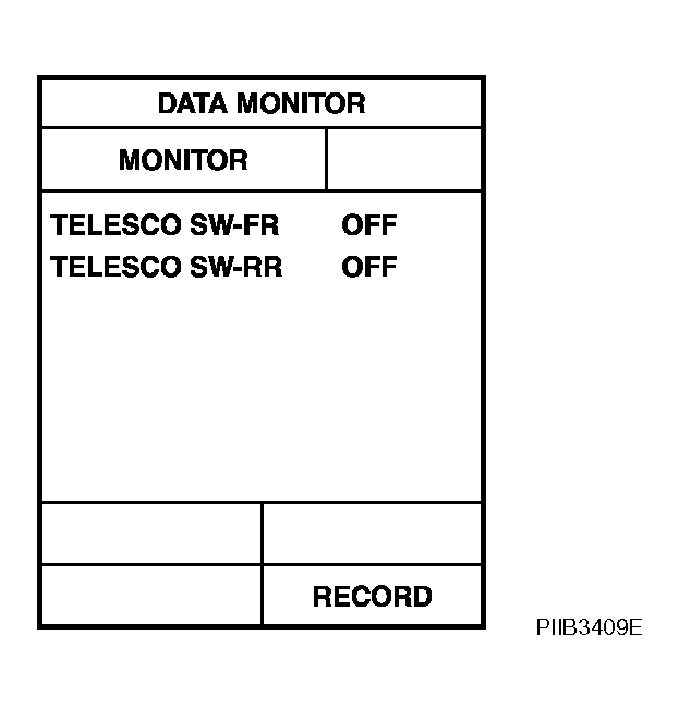

Fig 1: CONSULT-II Display Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch OFF.

Telescopic switch operate, check voltage between automatic drive positioner control unit connector and ground.

VOLTAGE CHECK TABLE

Connector	Terminals (Wire color)		Telescopic switch condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Telescopic switch condition	Voltage (V) (Approx.)
M96	11 (P/L)	Ground	FORWARD	0
	11 (P/L)		Other than above	5
	27 (G/W)		BACKWARD	0
	27 (G/W)		Other than above	5

OK or NG

OK: Telescopic switch circuit is OK.

NG: GO TO 2.

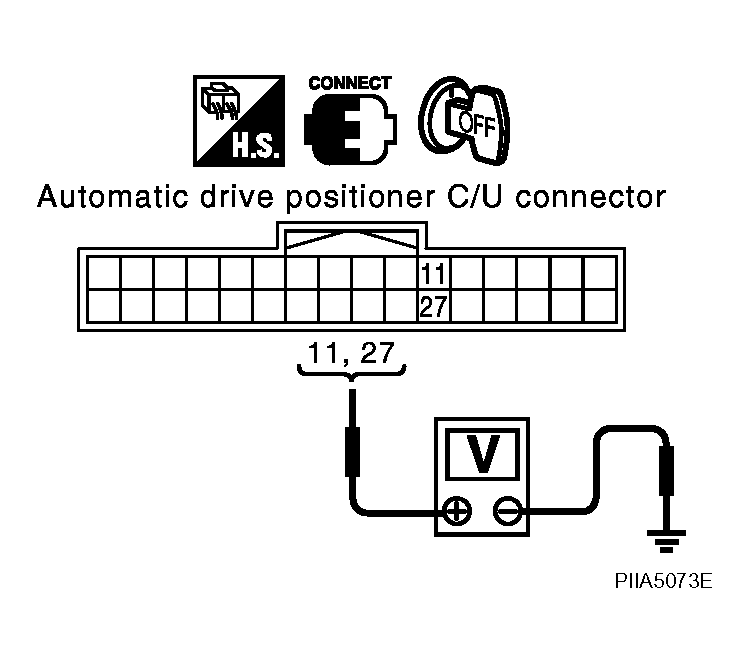

Fig 2: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK TELESCOPIC CIRCUIT HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit connector and ADP steering switch connector.
2. Check continuity between automatic drive positioner control unit connector M96 terminals 11, 27 and ADP steering switch connector M100 terminals 4, 5.
  11 (P/L) - 5 (P/L): Continuity should exist .

  27 (G/W) - 4 (G/W): Continuity should exist .
3. Check continuity between automatic drive positioner control unit connector M96 terminals 11, 27 and ground.
  11 (P/L) - Ground: Continuity should not exist .

  27 (G/W) - Ground: Continuity should not exist .

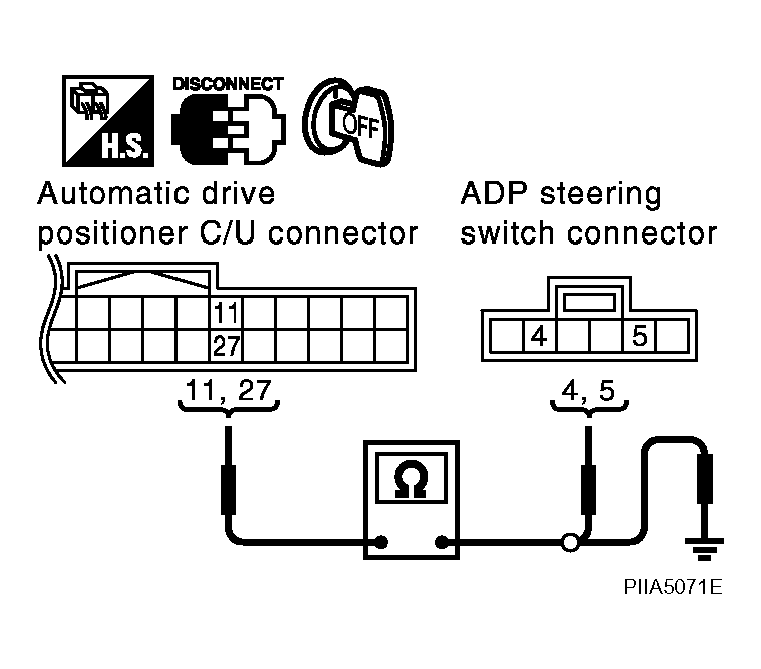

  Fig 3: Checking Continuity Between Automatic Drive Positioner Control Unit And ADP Steering Switch Connector Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: GO TO 3.

NG: Repair or replace harness between automatic drive positioner control unit and ADP steering switch.

CHECK TELESCOPIC SWITCH

Check continuity between ADP steering switch as follows.

CONTINUITY CHECK TABLE

Terminal		ADP steering switch condition	Continuity
5	1	FORWARD	Yes
5		Other than above	No
4		BACKWARD	Yes
4		Other than above	No

OK or NG

OK: GO TO 4.

NG: Replace ADP steering switch.

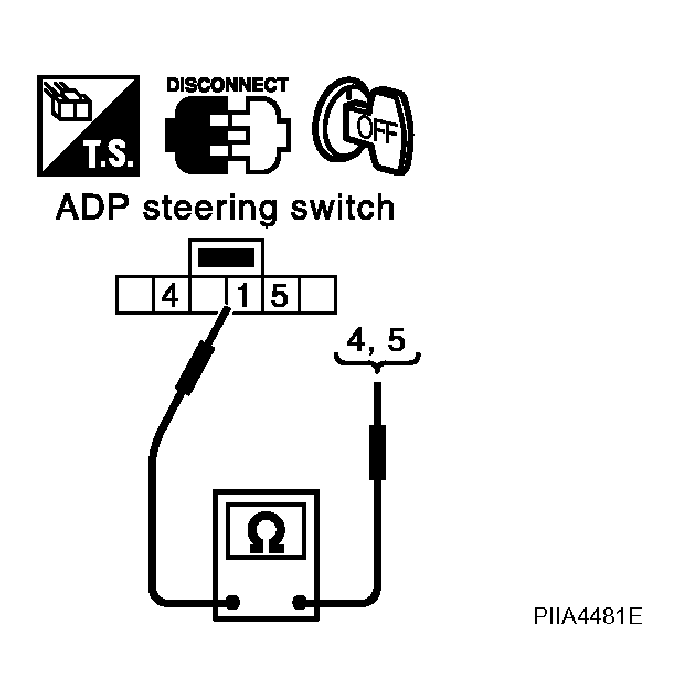

Fig 4: Checking Continuity Between ADP Steering Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK ADP STEERING SWITCH GROUND CIRCUIT
Check continuity between ADP steering switch connector M100 terminal 1 and ground.

1 (B) - Ground: Continuity should exist .

OK or NG

OK: Check the condition of the harness and connector.

NG: Replace or replace harness between ADP steering switch and ground.

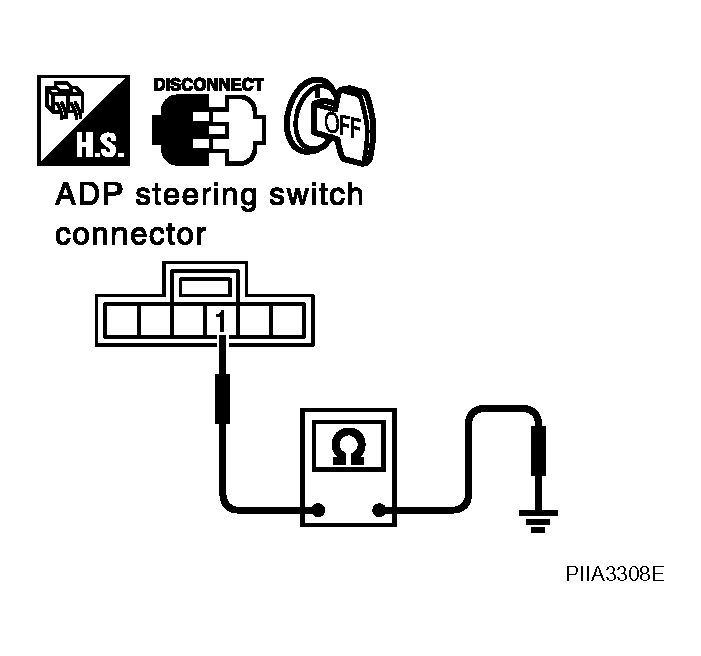

Fig 5: Checking Continuity Between ADP Steering Switch Connector Terminal 1 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
