Check Sliding Motor Circuit
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK SEAT SLIDING MECHANISM
Check the following.
- Operation malfunction caused by sliding rail deformation or pinched harness or other foreign materials
- Operation malfunction caused by foreign materials adhered to the sliding motor or sliding rail connector rod
- Operation malfunction and interference with other parts by poor installation
OK or NG
OK: GO TO 2.
NG: Repair the malfunctioning part and check again.
- CHECK FUNCTION
With CONSULT-II

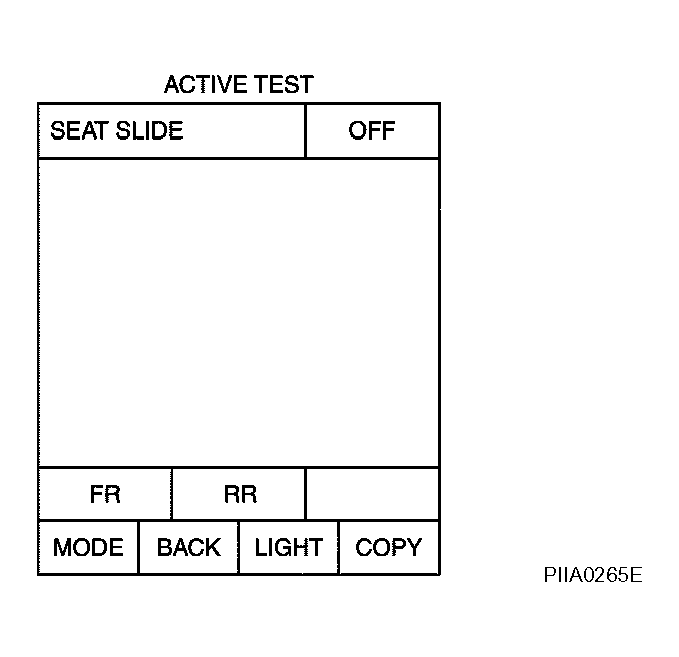

Check operation with "SEAT SLIDE" in ACTIVE TEST.
TEST ITEM DESCRIPTION TABLETest item Description SEAT SLIDE The sliding motor is activated by receiving the drive signal. Without CONSULT-II
GO TO 3.
OK or NG
OK: Sliding motor circuit is OK.
NG: GO TO 3.

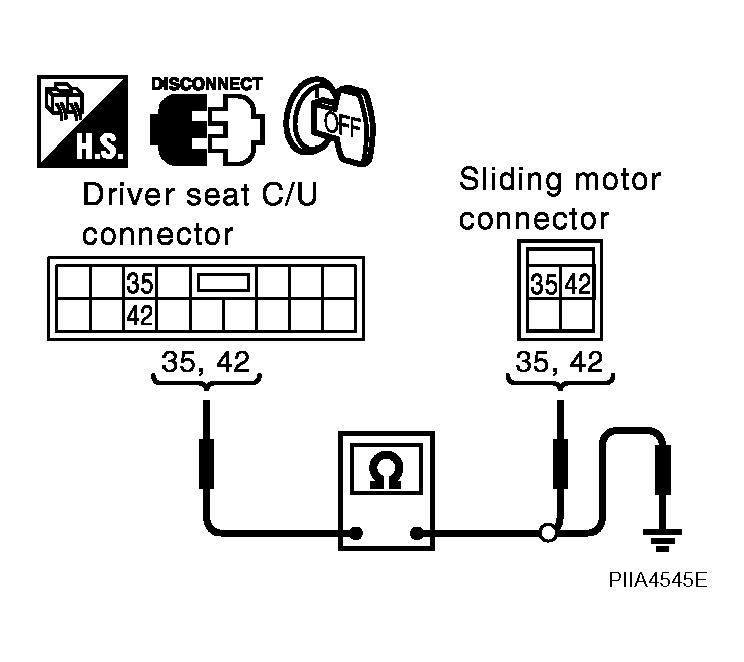

- CHECK SLIDING MOTOR HARNESS CONTINUITY
- Turn ignition switch OFF.
- Disconnect driver seat control unit connector and sliding motor connector.
- Check continuity between driver seat control unit connector B353 terminals 35, 42 and sliding motor connector B357 terminals 35, 42.
35 (W) - 35 (W): Continuity should exist .
42 (PU) - 42 (PU): Continuity should exist .
- Check continuity between driver seat control unit connector B353 terminals 35, 42 and ground.
35 (W) - Ground: Continuity should not exist .
42 (PU) - Ground: Continuity should not exist .
OK or NG
OK: GO TO 4.
NG: Repair or replace harness between driver seat control unit and sliding motor.

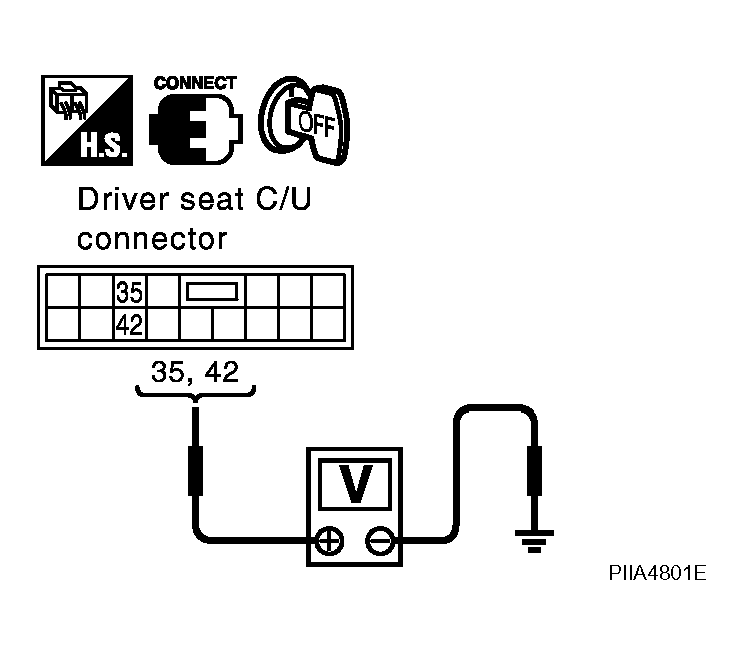

- CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL
- Connect the driver seat control unit connector.
- Sliding switch operate, check voltage between driver seat control unit connector and ground.VOLTAGE CHECK TABLE
Connector Terminals (Wire color) Sliding switch condition Voltage (V) (Approx.) (+) (-) B353 35 (W) Ground FORWARD Battery voltage Other than above 0 42 (PU) BACKWARD Battery voltage Other than above 0
OK or NG
OK: Replace sliding motor.
NG: Replace driver seat control unit.
