Check Seat Memory and Set Switch Circuit

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

With "SET SW, MEMORY SW1, MEMORY SW2" on the DATA MONITOR, operate the switch to check ON/OFF operation.

DATA MONITOR ITEM REFERENCE TABLE

Monitor item [OPERATION or UNIT]		Contents
MEMORY SW1	"ON/OFF"	ON/OFF status judged from the seat memory switch 1 signal is displayed.
MEMORY SW2	"ON/OFF"	ON/OFF status judged from the seat memory switch 2 signal is displayed.
SET SW	"ON/OFF"	ON/OFF status judged from the setting switch signal is displayed.

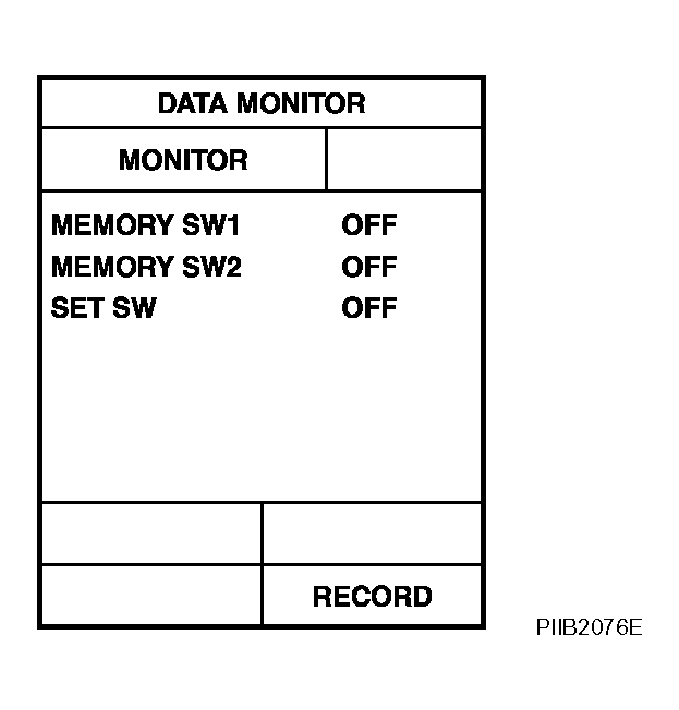

Fig 1: CONSULT-II Display Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

GO TO 2.

OK or NG

OK: Seat memory switch circuit is OK.

NG: GO TO 2.

CHECK SEAT MEMORY SWITCH

Turn ignition switch OFF.
Disconnect seat memory switch connector.

Check continuity between seat memory switch connector B354 terminal 7, 22, 23 and 32B.

CONTINUITY CHECK TABLE

Connector	Terminals		Condition	Continuity
B354	7	32B	Memory switch 1: ON	Yes
	7		Memory switch 1: OFF	No
	22		Memory switch 2: ON	Yes
	22		Memory switch 2: OFF	No
	23		Set switch: ON	Yes
	23		Set switch: OFF	No

OK or NG

OK: GO TO 3.

NG: Replace seat memory switch.

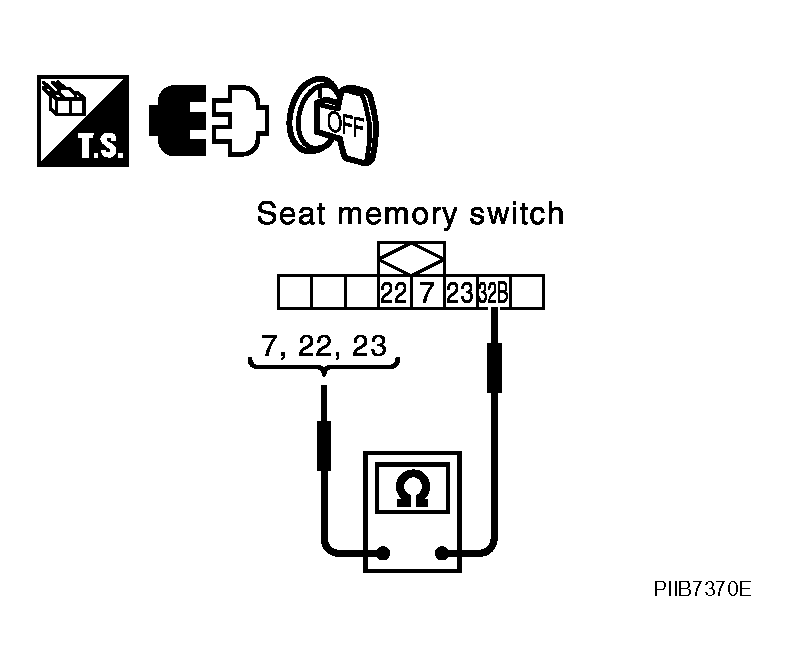

Fig 2: Checking Continuity Between Seat Memory Switch Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK HARNESS CONTINUITY
1. Disconnect driver seat control unit connector.
2. Check continuity between driver seat control unit connector B352 terminals 7, 22, 23 and seat memory switch connector B354 terminals 7, 22, 23.
  7 (R/B) - 7 (R/B): Continuity should exist .

  22 (G/R) - 22 (G/R): Continuity should exist .

  23 (Y/G) - 23 (Y/G): Continuity should exist .
3. Check continuity between driver seat control unit connector M352 terminals 7, 22, 23 and ground.
  7 (R/B) - Ground: Continuity should not exist .

  22 (G/R) - Ground: Continuity should not exist .

  23 (Y/G) - Ground: Continuity should not exist .

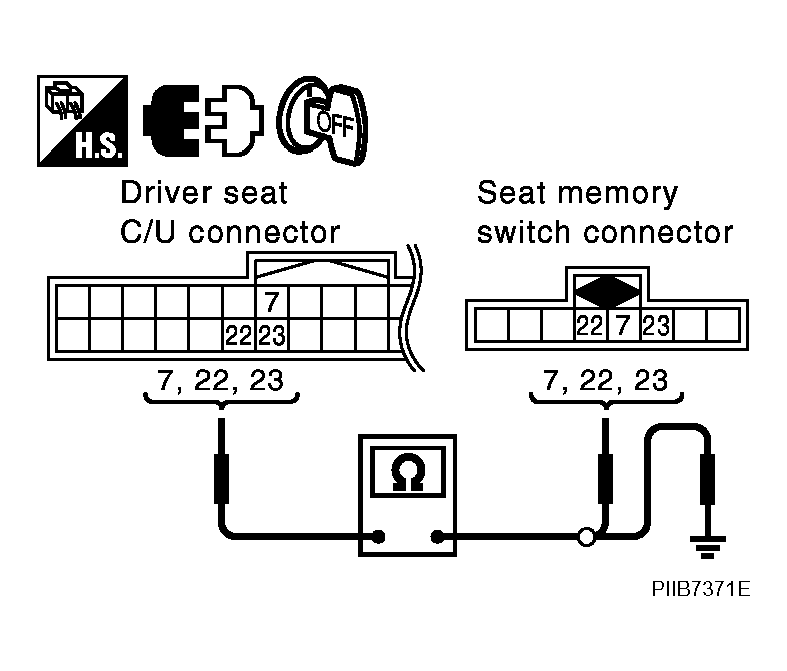

  Fig 3: Checking Continuity Between Driver Seat Control Unit And Seat Memory Switch Connector Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: GO TO 4.

NG: Repair or replace harness between driver seat control unit and seat memory switch.
CHECK SEAT MEMORY SWITCH GROUND CIRCUIT
Check continuity between seat memory switch connector B354 terminal 32B and ground.

32B (B) - Ground: Continuity should exist .

OK or NG

OK: Replace driver seat control unit.

NG: Repair or replace harness between seat memory switch and ground.

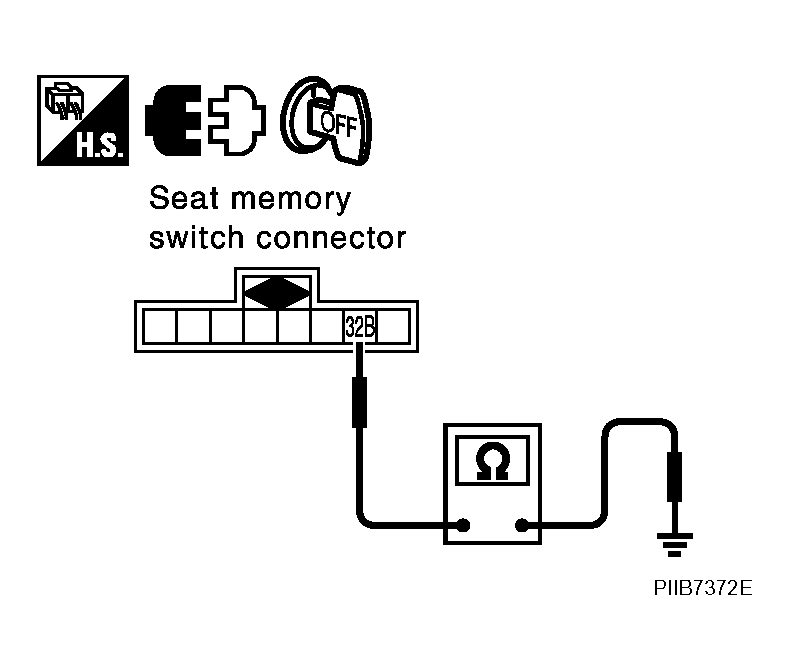

Fig 4: Checking Continuity Between Seat Memory Switch Connector Terminal 32B And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
