Check Memory Indicator Lamp Circuit

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    With "MEMORY SW INDCTR" in ACTIVE TEST, check operation.

    TEST ITEM DESCRIPTION TABLE

    Test item Description
    MEMORY SW INDCTR The memory switch indicator is lit by receiving the drive signal.

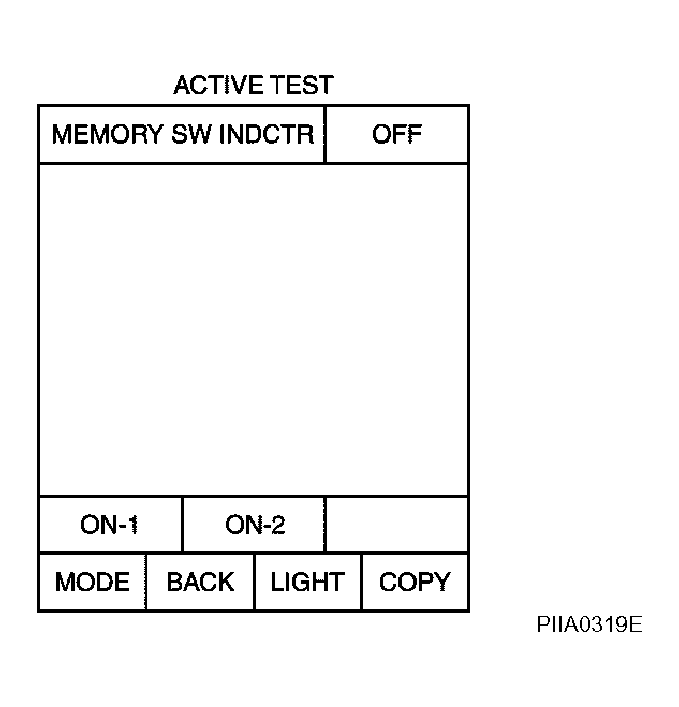

    Fig 1: CONSULT-II Display Active Test
    G04182632Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 2.

    OK or NG

    OK: Memory indicator lamp circuit is OK.

    NG: GO TO 2.

  2. CHECK SEAT MEMORY SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect seat memory switch connector.
    3. Check voltage between seat memory switch connector B354 terminal 40A and ground.

      40A (R/W) - Ground: Battery voltage

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace harness between fuse block (J/B) and seat memory switch.

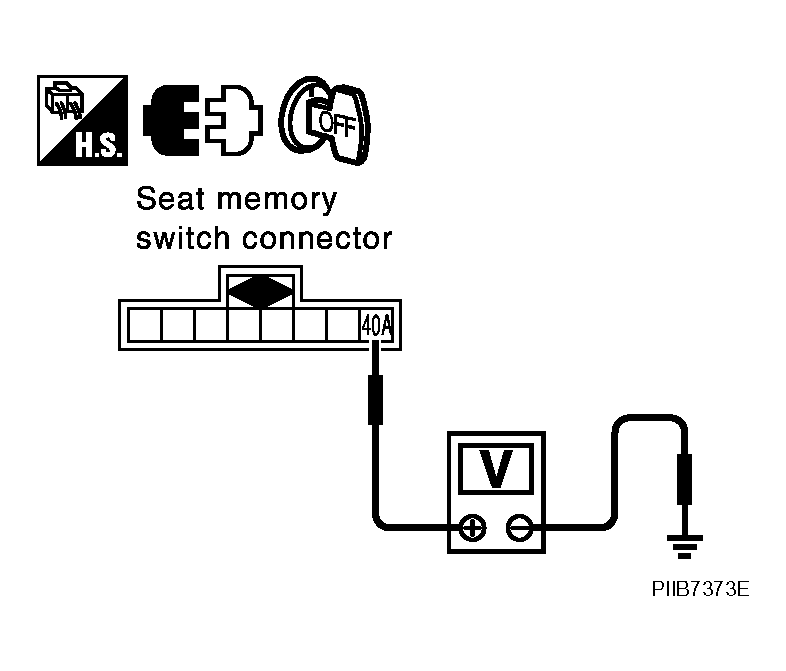

    Fig 2: Checking Voltage Between Seat Memory Switch Connector Terminal 40A And Ground
    G04182633Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK HARNESS CONTINUITY
    1. Disconnect driver seat control unit connector.
    2. Check continuity between driver seat control unit connector B352 terminals 2, 18 and seat memory switch connector B354 terminals 2, 18.

      2 (LG/B) - 2 (LG/B): Continuity should exist  .

      18 (W/R) - 18 (W/R): Continuity should exist  .

    3. Check continuity between driver seat control unit connector B352 terminals 2, 18 and ground.

      2 (LG/B) - Ground: Continuity should not exist  .

      18 (W/R) - Ground: Continuity should not exist  .

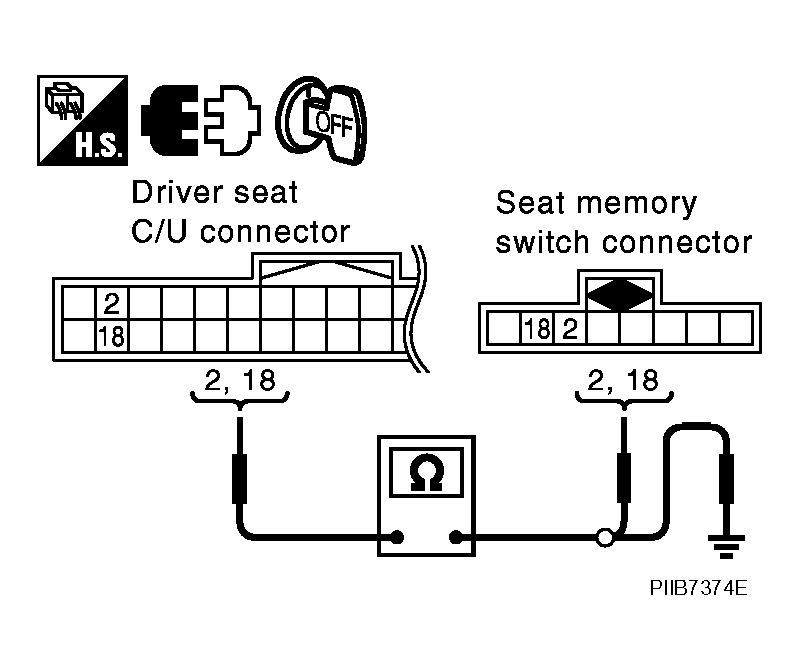

      Fig 3: Checking Continuity Between Driver Seat Control Unit And Seat Memory Switch Connector Terminals
      G04182634Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 4.

    NG: Repair or replace harness between driver seat control unit and seat memory switch.

  4. CHECK SEAT MEMORY SWITCH INDICATOR SIGNAL

    Check voltage between driver seat control unit connector B352 terminals 2, 18 and ground.

    2 (LG/B) - Ground: Battery voltage

    18 (W/R) - Ground: Battery voltage

    OK or NG

    OK: Memory indicator lamp circuit is OK.

    NG: Replace seat memory switch.

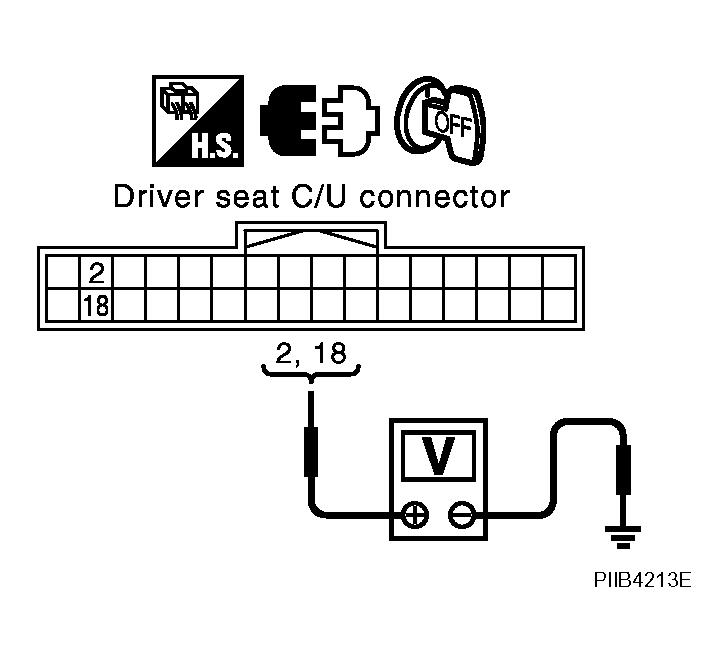

    Fig 4: Checking Voltage Between Driver Seat Control Unit Connector Terminals 2, 18 And Ground
    G04182635Courtesy of NISSAN MOTOR CO., U.S.A.
