Check Power Supply And Ground Circuit

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSES AND FUSIBLE LINK

Check for blown fuses and fusible link.

BLOWN FUSES AND FUSIBLE LINK REFERENCE DATA

Unit	Power source	Fuse and fusible link No.
BCM	Battery	F
	Battery	18
	Ignition switch ON or START position 1 Ignition switch ACC or ON position	6
IPDM E/R	Battery	71
		72
		74
		76
		86

Refer to "WIRING DIAGRAM - AUTO/L - ".

OK or NG

OK: GO TO 2.

NG: If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse or fusible link. Refer to "POWER SUPPLY ROUTING CIRCUIT ".

CHECK POWER SUPPLY CIRCUIT

Turn ignition switch OFF.
Disconnect BCM connector.

Check voltage between BCM harness connector and ground.

VOLTAGE REFERENCE CHART

(+)		(-)	Ignition switch position
BCM connector	Terminal	(-)	OFF	ACC	ON
M1	11	Ground	Approx. 0 V	Battery voltage	Battery voltage
M1	38		Approx. 0 V	Approx. 0 V	Battery voltage
M2	42		Battery voltage	Battery voltage	Battery voltage
M2	55		Battery voltage	Battery voltage	Battery voltage

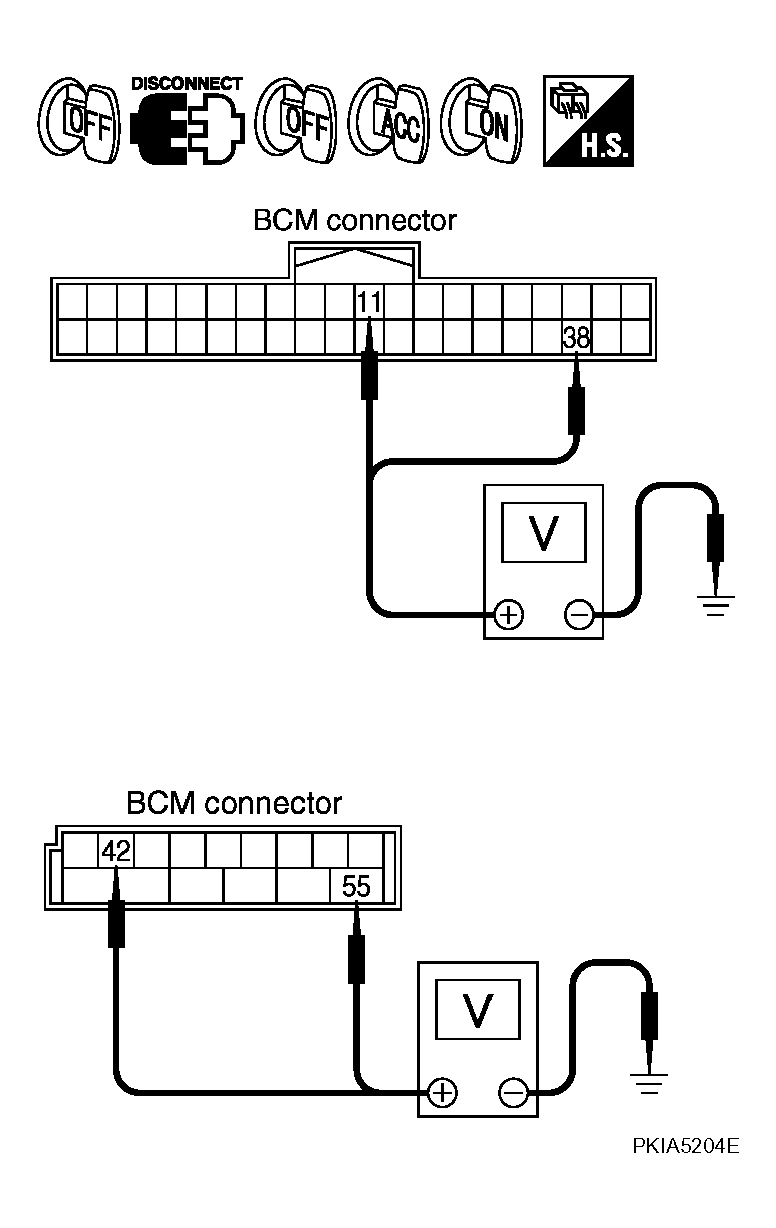

Fig 1: Identifying Voltage Between BCM Harness Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Repair harness or connector.

CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

CONTINUITY REFERENCE CHART

BCM connector	Terminal	Ground	Continuity
M2	52	Ground	Yes

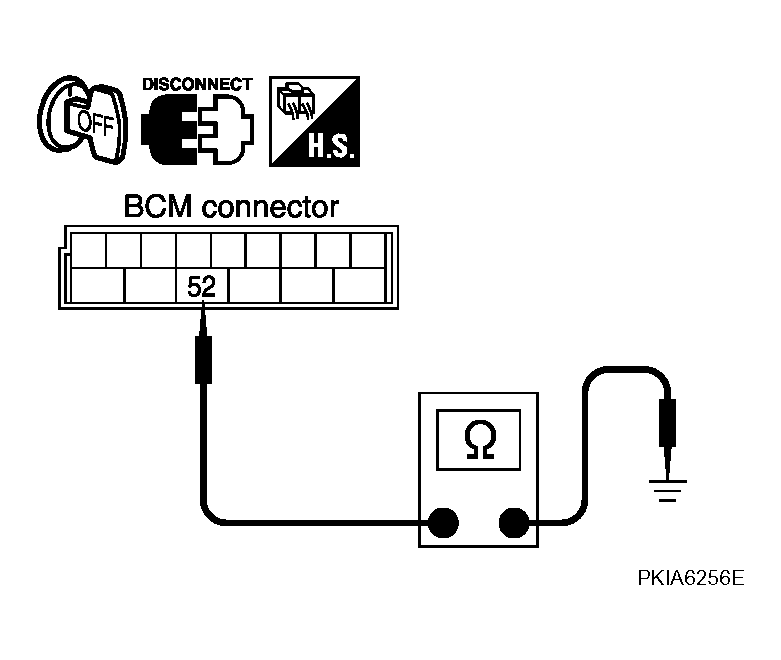

Fig 2: Identifying Continuity Between BCM Harness Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END

NG: Repair harness or connector.
