Driver Side Door Switch

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminal 1 and door switch case ground.

1 - Driver side door switch case ground

When driver side door switch is released: Continuity should exist  .

When driver side door switch is pushed: Continuity should not exist  .

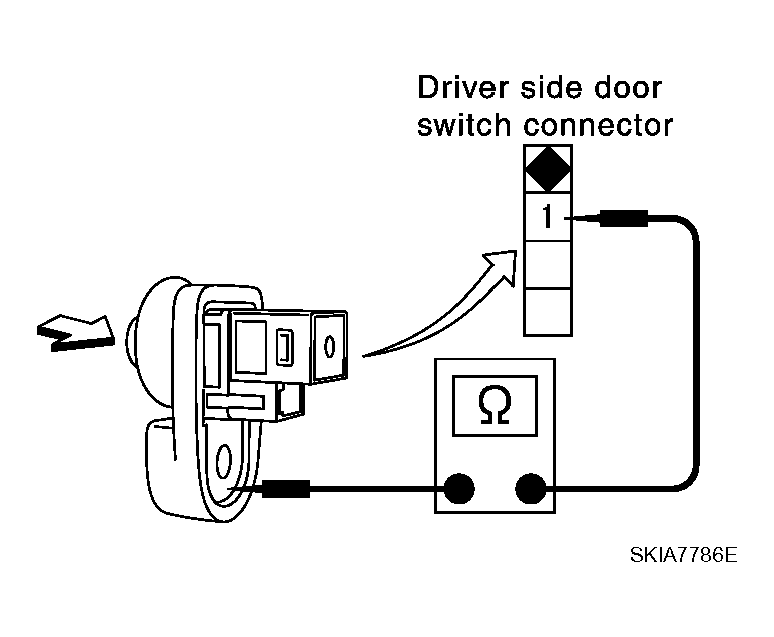

Fig 1: Identifying Continuity Between Terminal 1 And Door Switch Case Ground
G04183474Courtesy of NISSAN MOTOR CO., U.S.A.
