Wiring Diagram - COMPASS -

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to SYSTEM WIRING DIAGRAMS .

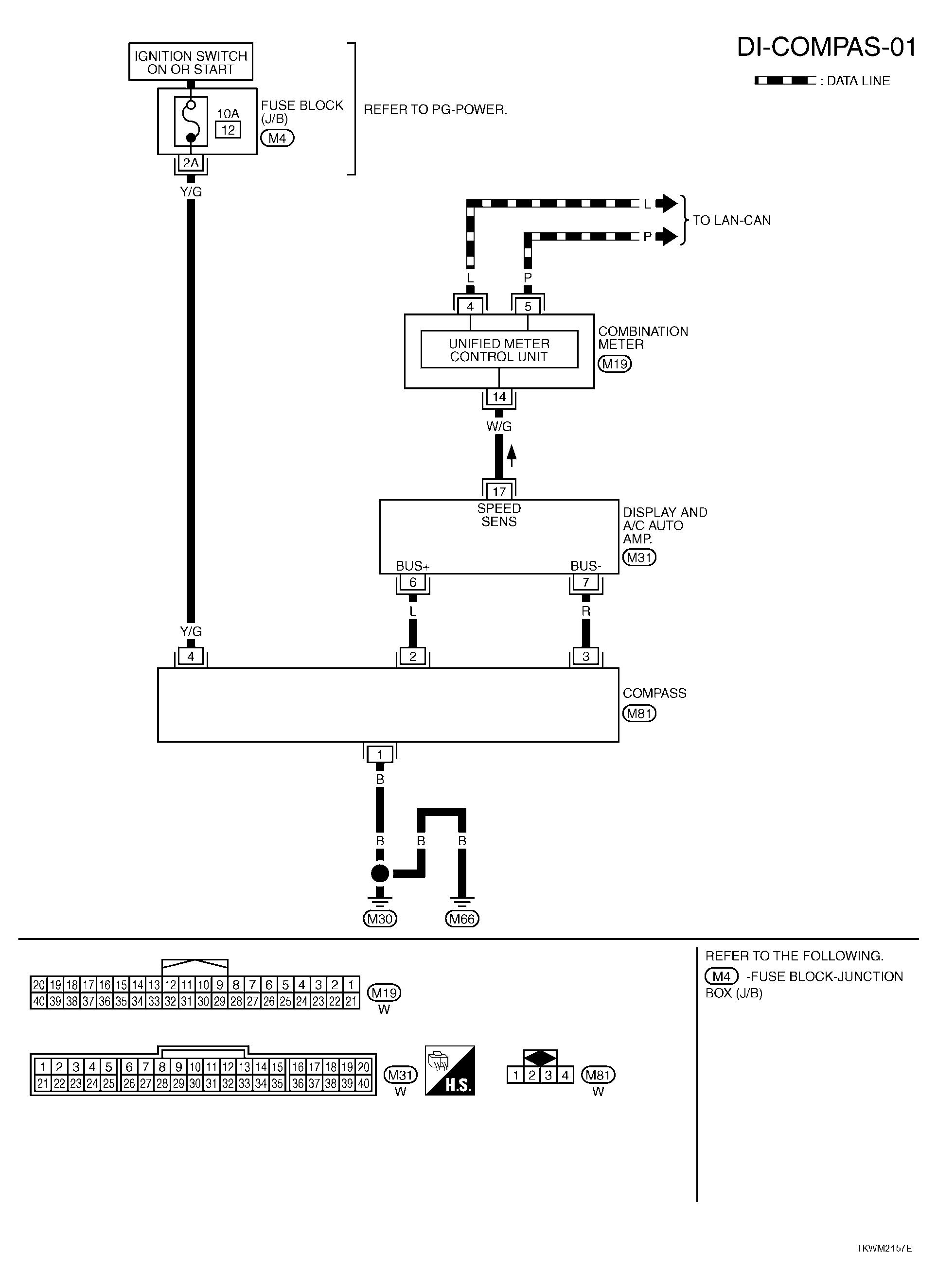

Fig 1: DI-COMPASS-01 - Wiring Diagram
G04183479Courtesy of NISSAN MOTOR CO., U.S.A.
