Removal and Installation of Compass: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel and pad. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove screw (1), and remove compass.

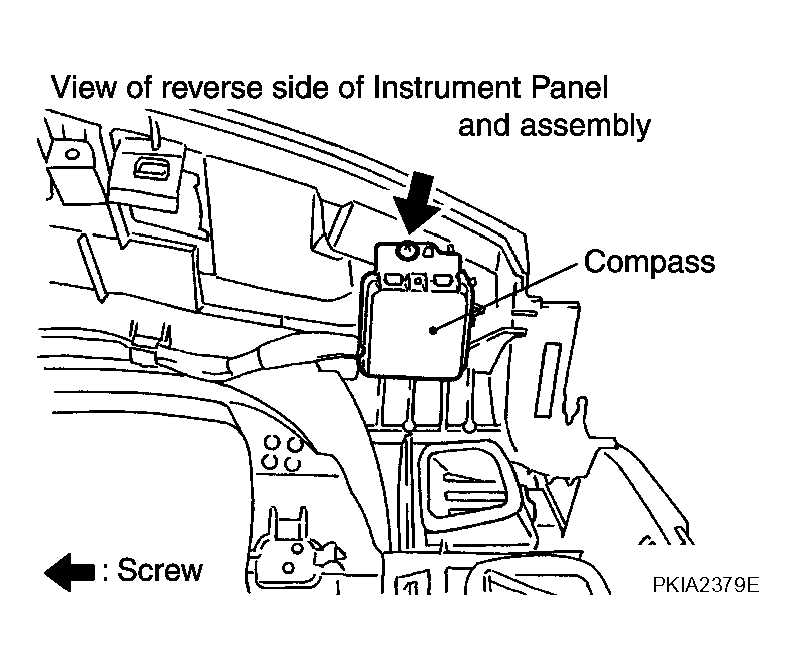

    Fig 1: Identifying Screw & Compass
    G04183490Courtesy of NISSAN MOTOR CO., U.S.A.
