Manual Mode Switch
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

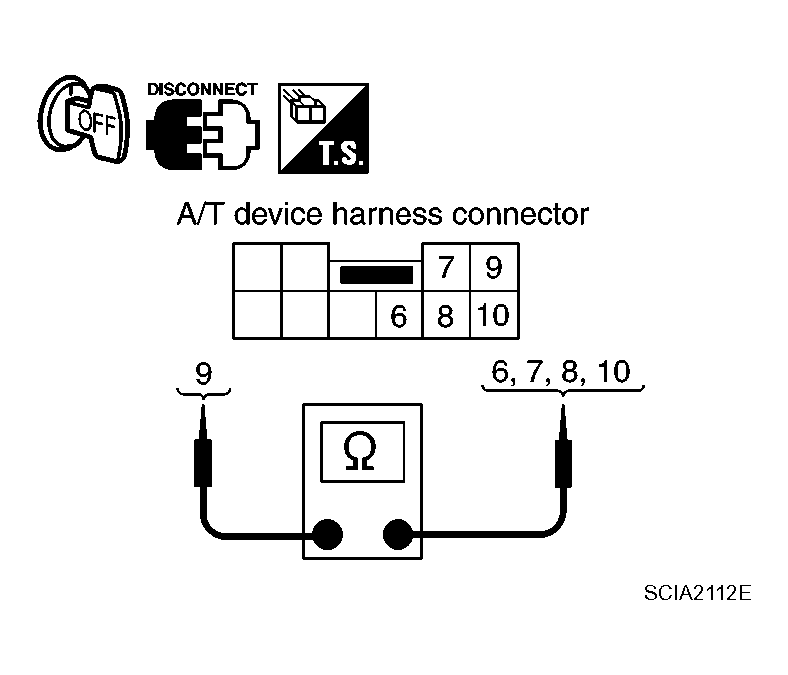

Check continuity between terminals.
TERMINALS CONTINUITY REFERENCE
| Item |
Position |
Connector |
Terminal (Unit side) |
Continuity |
| Manual mode select switch |
Auto |
M47 |
9 - 10 |
Yes |
| Manual |
6 - 9 |
| Manual mode position select switch |
UP |
8 - 9 |
| DOWN |
7 - 9 |
Courtesy of NISSAN MOTOR CO., U.S.A.
