Back-up Control (Engine Brake)

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

When the select operation is executed during driving and the A/T is shifted down, the line pressure is set according to the vehicle speed.

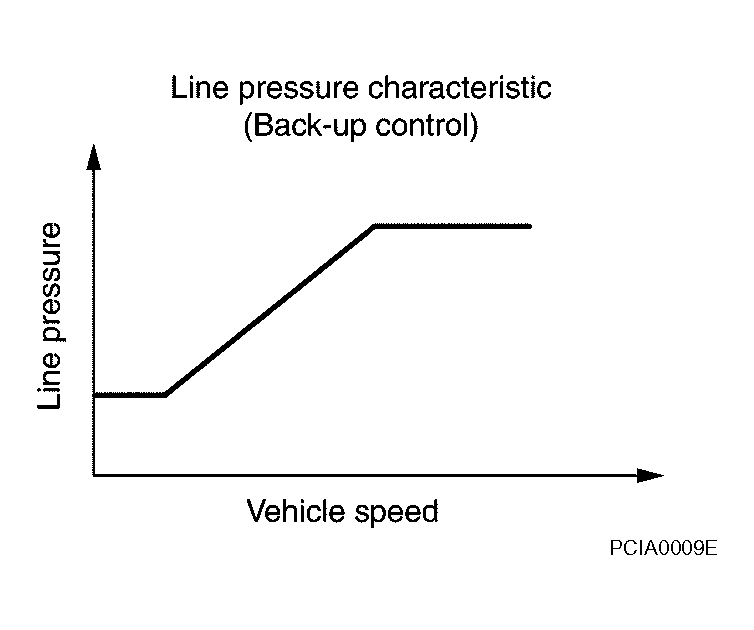

Fig 1: Line Pressure Graph (Back-Up Control (Engine Brake))
G04180569Courtesy of NISSAN MOTOR CO., U.S.A.
