Preliminary Check

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

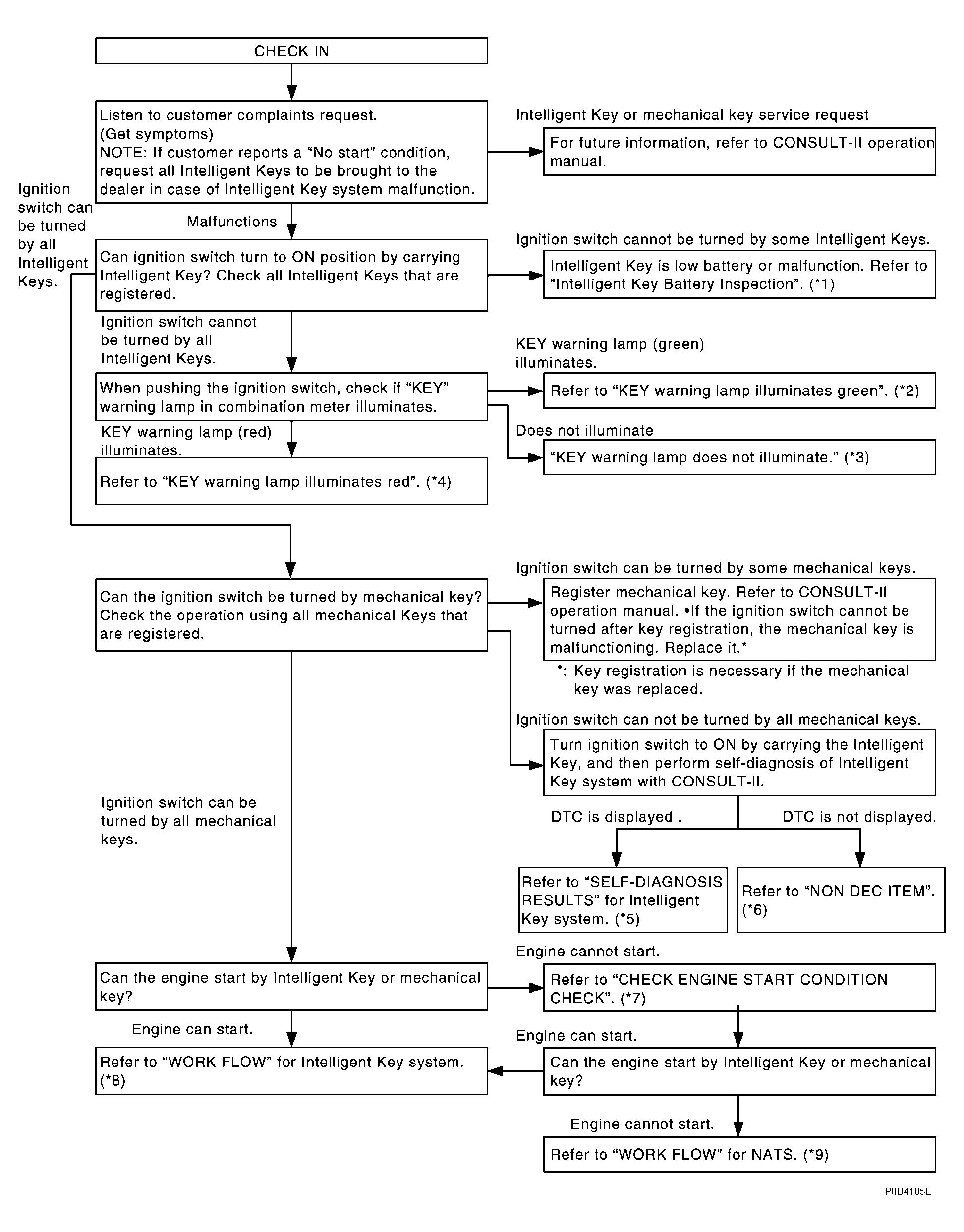

Fig 1: Trouble Diagnosis Preliminary Check Procedure Chart
G04181948Courtesy of NISSAN MOTOR CO., U.S.A.
TROUBLE DIAGNOSIS PRELIMINARY CHECK PROCEDURE CHART REFERENCES

*1. CHECK INTELLIGENT KEY BATTERY INSPECTION
*2. TROUBLE DIAGNOSIS SYMPTOM CHART
*3. KEY WARNING LAMP DOES NOT ILLUMINATE
*4. TROUBLE DIAGNOSIS SYMPTOM CHART
*5. CONSULT-II APPLICATION
*6. KEY WARNING LAMP DOES NOT ILLUMINATE
*7. KEY WARNING LAMP DOES NOT ILLUMINATE
*8. WORK FLOW
*9. WORK FLOW
